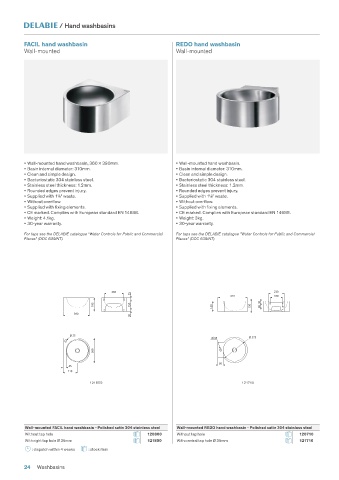

Page 26 - Stainless_Steel_Sanitary_Ware
P. 26

/ Hand washbasins



              FACIL hand washbasin                                 REDO hand washbasin
              Wall-mounted                                         Wall-mounted























              • Wall-mounted hand washbasin, 360 x 390mm.          • Wall-mounted hand washbasin.
              • Basin internal diameter: 310mm.                    • Basin internal diameter: 310mm.
              • Clean and simple design.                           • Clean and simple design.
              • Bacteriostatic 304 stainless steel.                • Bacteriostatic 304 stainless steel.
              • Stainless steel thickness: 1.2mm.                  • Stainless steel thickness: 1.2mm.
              • Rounded edges prevent injury.                      • Rounded edges prevent injury.
              • Supplied with 11/4" waste.                         • Supplied with 11/4" waste.
              • Without overflow.                                  • Without overflow.
              • Supplied with fixing elements.                     • Supplied with fixing elements.
              • CE marked. Complies with European standard EN 14688.  • CE marked. Complies with European standard EN 14688.
              • Weight: 4.1kg.                                     • Weight: 3kg.
              • 30-year warranty.                                  • 30-year warranty.
              For taps see the DELABIE catalogue "Water Controls for Public and Commercial   For taps see the DELABIE catalogue "Water Controls for Public and Commercial
              Places" (DOC 609INT).                                Places" (DOC 609INT).










                                            285                                                      230
                                                   25                                 430            180
                                      195          150                                       130  30  90  230
                                            285    25                           150   430            180
                               390
                                                   20
                              Ø 35                                                               30
                                                                                             130
                                      195          150                         Ø 35          Ø 375  90
                                                                                150
                               390                 20
                              Ø 35    360
                                                                               Ø 35          Ø 375
                                                                                  80
                             45       360
                             210
                                                                                  80
                             45
                             210
                                     121800                                               121710








              Wall-mounted FACIL hand washbasin - Polished satin 304 stainless steel  Wall-mounted REDO hand washbasin - Polished satin 304 stainless steel
              Without tap hole                           120800    Without tap hole                           120710
              With right tap hole Ø 35mm                 121800    With central tap hole Ø 35mm               121710
                 : dispatch within 4 weeks   : stock item

              24  Washbasins
