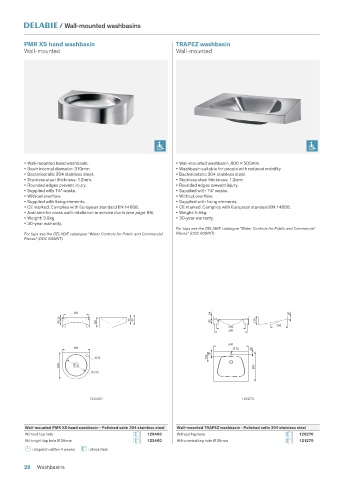

P. 30

/ Wall-mounted washbasins



              PMR XS hand washbasin                                TRAPEZ washbasin
              Wall-mounted                                         Wall-mounted























              • Wall-mounted hand washbasin.                       • Wall-mounted washbasin, 600 x 505mm.
              • Basin internal diameter: 310mm.                    • Washbasin suitable for people with reduced mobility.
              • Bacteriostatic 304 stainless steel.                • Bacteriostatic 304 stainless steel.
              • Stainless steel thickness: 1.2mm.                  • Stainless steel thickness: 1.2mm.
              • Rounded edges prevent injury.                      • Rounded edges prevent injury.
              • Supplied with 11/4" waste.                         • Supplied with 11/4" waste.
              • Without overflow.                                  • Without overflow.
              • Supplied with fixing elements.                     • Supplied with fixing elements.
              • CE marked. Complies with European standard EN 14688.  • CE marked. Complies with European standard EN 14688.
              • Available for cross wall installation in service ducts (see page 85).  • Weight: 5.5kg.
              • Weight: 3.9kg.                                     • 30-year warranty.
              • 30-year warranty.
                                                                   For taps see the DELABIE catalogue "Water Controls for Public and Commercial
              For taps see the DELABIE catalogue "Water Controls for Public and Commercial   Places" (DOC 609INT).
              Places" (DOC 609INT).















                               360                                             34                          50
                          90 25        150         75  80                      95  34          150         50
                               360                                             95    500       150    300
                                                                                     560
                          90 25  400   150         75  80                            600 Ø 35         300
                                                                                     500
                                      Ø 35                                     70    560      38
                                                                                     600
                               400                                            170      Ø 35
                          390                                                                 38
                                     Ø 310                                    170  70         505
                                      Ø 35
                          390                                                                 505
                                     Ø 310



                                     123400                                               121270




              Wall-mounted PMR XS hand washbasin - Polished satin 304 stainless steel  Wall-mounted TRAPEZ washbasin - Polished satin 304 stainless steel
              Without tap hole                           120400    Without tap hole                           120270
              With right tap hole Ø 35mm                 123400    With central tap hole Ø 35mm               121270
                 : dispatch within 4 weeks   : stock item

              28  Washbasins
