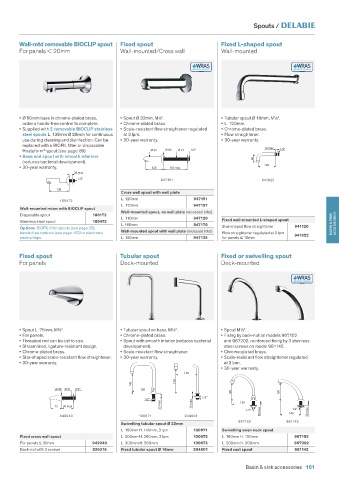

Page 103 - water-controls-for-healthcare

Spouts /

Wall-mtd removable BIOCLIP spout Fixed spout Fixed L-shaped spout
For panels < 20mm Wall-mounted/Cross wall Wall-mounted

• Ø 60mm base in chrome-plated brass, • Spout Ø 32mm, M½". • Tubular spout Ø 18mm, M½".
order a hands-free control to complete. • Chrome-plated brass. • L. 120mm.
• Supplied with 2 removable BIOCLIP stainless • Scale-resistant flow straightener regulated • Chrome-plated brass.
steel spouts L. 138mm Ø 28mm for continuous at 3 lpm. • Flow straightener.
use during cleaning and disinfection. Can be • 30-year warranty. • 30-year warranty.
replaced with a BIOFIL filter or disposable 10 max
®
Hostaform spout (see page 89). Ø 32 Ø 60 Ø 21 1/2" 1/2"
• Base and spout with smooth interiors 60
(reduces bacterial development).
• 30-year warranty. 120 165 max 120
28 max
1/2" 947151 941922
138
Cross wall spout with wall plate
1804T2 L. 120mm 947151
L. 170mm 947157
Wall-mounted mixer with BIOCLIP spout
Wall-mounted spout, no wall plate (recessed inlet)
Disposable spout 1801T2
L. 110mm 947120
Stainless steel spout 1804T2 Fixed wall-mounted L-shaped spout
L. 160mm 947170 BASIN & SINK ACCESSORIES
Options: BIOFIL filter spouts (see page 25), Star-shaped flow straightener 941120
hands-free controls (see page 102) or electronic Wall-mounted spout with wall plate (recessed inlet) Flow straightener regulated at 3 lpm
mixers/taps. L. 120mm 947135 for panels ≤ 10mm 941922
Fixed spout Tubular spout Fixed or swivelling spout
For panels Deck-mounted Deck-mounted

• Spout L. 75mm, M½". • Tubular spout on base, M½". • Spout M½".
• For panels. • Chrome-plated brass. • Fixing by back-nut on models 967152
• Threaded rod can be cut to size. • Spout with smooth interior (reduces bacterial and 967202, reinforced fixing by 3 stainless
• Streamlined, ligature-resistant design. development). steel screws on model 981142.
• Chrome-plated brass. • Scale-resistant flow straightener. • Chrome-plated brass.
• Star-shaped scale-resistant flow straightener. • 30-year warranty. • Scale-resistant flow straightener regulated
• 30-year warranty. at 3 lpm.
• 30-year warranty.
150
140 170
Ø 48 Ø 21 1/2" 150
120 120
1/2"
1/2"
25 max 15 max 150
75 30 max
1/2" 30 max 1/2" 30 max
942040 1306T1 204001 140
967152 981142
Swivelling tubular spout Ø 22mm
L. 150mm H. 140mm, 3 lpm 1306T1 Swivelling swan neck spout
Fixed cross wall spout L. 200mm H. 260mm, 3 lpm 1306T2 L. 150mm H. 120mm 967152
For panels ≤ 30mm 942040 L. 300mm H. 260mm 1306T3 L. 200mm H. 200mm 967202
Back-nut with 3 screws 826315 Fixed tubular spout Ø 16mm 204001 Fixed cast spout 981142

Basin & sink accessories 101
