Thermostatic mixing valves /

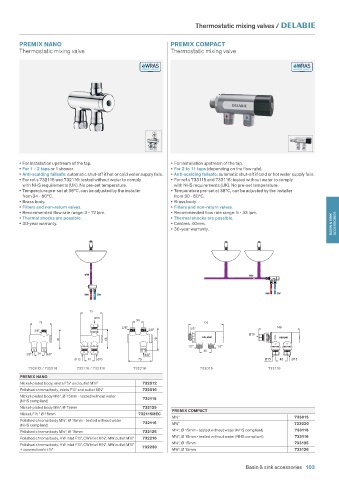

PREMIX NANO PREMIX COMPACT
Thermostatic mixing valve Thermostatic mixing valve

• For installation upstream of the tap. • For installation upstream of the tap.
• For 1 - 2 taps or 1 shower. • For 2 to 11 taps (depending on the flow rate).
• Anti-scalding failsafe: automatic shut-off if hot or cold water supply fails. • Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
• For ref.s 732115 and 732116: tested without water to comply • For ref.s 733115 and 733116: tested without water to comply
with NHS requirements (UK). No pre-set temperature. with NHS requirements (UK). No pre-set temperature.
• Temperature pre-set at 38°C, can be adjusted by the installer • Temperature pre-set at 38°C, can be adjusted by the installer
from 34 - 60°C. from 30 - 60°C.
• Brass body. • Brass body.
• Filters and non-return valves. • Filters and non-return valves.
• Recommended flow rate range: 3 - 12 lpm. • Recommended flow rate range: 5 - 33 lpm.
• Thermal shocks are possible. • Thermal shocks are possible.
• 30-year warranty. • Centres: 40mm. BASIN & SINK ACCESSORIES
• 30-year warranty.

MW
MW

HW CW
HW CW

75
Ø15
34
75 120
3/8" 1/2" 140
3/8" 3/8"
Ø15
70 68 70
1/2" 1/2"
40
3/8" 34 3/8" 3/8"
Ø 15 34 Ø15 75 Ø15 40 Ø15
732012 / 732016 732115 / 732116 732216 733015 733116
PREMIX NANO
Nickel-plated body, inlets F⅜" and outlet M⅜" 732012
Polished chrome body, inlets F⅜" and outlet M⅜" 732016
Nickel-plated body M½", Ø 15mm - tested without water 732115
(NHS compliant)
Nickel-plated body M½", Ø 15mm 732125
PREMIX COMPACT
Nickel, F½ " Ø 15mm 732115MEC
M½" 733015
Polished chrome body M½", Ø 15mm - tested without water
(NHS compliant) 732116 M¾" 733020
Polished chrome body M½", Ø 15mm 732126 M½", Ø 15mm - tested without water (NHS compliant) 733115
Polished chrome body, HW inlet F⅜", CW inlet M⅜", MW outlet M⅜" 732216 M¾", Ø 15mm - tested without water (NHS compliant) 733116
Polished chrome body, HW inlet F⅜", CW inlet M⅜", MW outlet M⅜" 732230 M½", Ø 15mm 733125
+ connection kit ⅜" M¾", Ø 15mm 733126

Basin & sink accessories 103
