/ Hands-free controls

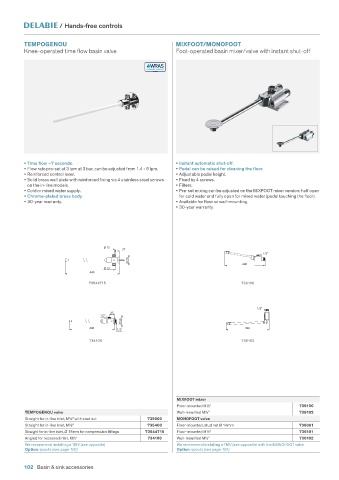

TEMPOGENOU MIXFOOT/MONOFOOT
Knee-operated time flow basin valve Foot-operated basin mixer/valve with instant shut-off
• Time flow ~7 seconds. • Instant automatic shut-off.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm. • Pedal can be raised for cleaning the floor.
• Reinforced control lever. • Adjustable pedal height.
• Solid brass wall plate with reinforced fixing via 4 stainless steel screws • Fixed by 4 screws.
on the in-line models. • Filters.
• Cold or mixed water supply. • Pre-set mixing can be adjusted on the MIXFOOT mixer version: half open
• Chrome-plated brass body. for cold water and fully open for mixed water (pedal touching the floor).
• 30-year warranty. • Available for floor or wall-mounting.
• 30-year warranty.
Ø 15
37
1/2"
Ø 70
280
Ø 15
440
73544715 739100
1/2"
35
1/2"
Ø 50
440 300
1/2"
734100 736102
MIXFOOT mixer
Floor-mounted M½" 739100
TEMPOGENOU valve Wall-mounted M½" 739102
Straight for in-line inlet, M½" with stud nut 735000 MONOFOOT valve
Straight for in-line inlet, M½" 735400 Floor-mounted, stud nut Ø 14mm 736001
Straight for in-line inlet, Ø 15mm for compression fittings 73544715 Floor-mounted M½" 736101
Angled for recessed inlet, M½" 734100 Wall-mounted M½" 736102
We recommend installing a TMV (see opposite) We recommend installing a TMV (see opposite) with the MONOFOOT valve
Option: spouts (see page 101) Option: spouts (see page 101)
