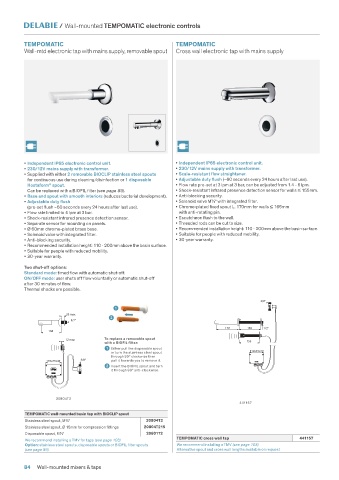

Page 86 - water-controls-for-healthcare

/ Wall-mounted TEMPOMATIC electronic controls

TEMPOMATIC TEMPOMATIC
Wall-mtd electronic tap with mains supply, removable spout Cross wall electronic tap with mains supply

• Independent IP65 electronic control unit. • Independent IP65 electronic control unit.
• 230/12V mains supply with transformer. • 230/12V mains supply with transformer.
• Supplied with either 2 removable BIOCLIP stainless steel spouts • Scale-resistant flow straightener.
for continuous use during cleaning/disinfection or 1 disposable • Adjustable duty flush (~60 seconds every 24 hours after last use).
Hostaform spout. • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
®
Can be replaced with a BIOFIL filter (see page 89). • Shock-resistant infrared presence detection sensor for walls ≤ 155mm.
• Base and spout with smooth interiors (reduces bacterial development). • Anti-blocking security.
• Adjustable duty flush • Solenoid valve M⅜" with integrated filter.
(pre-set flush ~60 seconds every 24 hours after last use). • Chrome-plated fixed spout L. 170mm for walls ≤ 165mm
• Flow rate limited to 4 lpm at 3 bar. with anti-rotating pin.
• Shock-resistant infrared presence detection sensor. • Escutcheon flush to the wall.
• Separate sensor for mounting on panels. • Threaded rods can be cut to size.
• Ø 60mm chrome-plated brass base. • Recommended installation height: 110 - 200mm above the basin surface.
• Solenoid valve with integrated filter. • Suitable for people with reduced mobility.
• Anti-blocking security. • 30-year warranty.
• Recommended installation height: 110 - 200mm above the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.

Two shut-off options:
Standard mode: timed flow with automatic shut-off.
ON/OFF mode: user shuts off flow voluntarily or automatic shut-off
after 30 minutes of flow.
Thermal shocks are possible.
3/8"

28 max
2
1/2"
170 165 1/2"
138
12 max To replace a removable spout
with a BIOFIL filter: 155
 Either pull the disposable spout
or turn the stainless steel spout 110x75x40
through 90º clockwise then
110x75x40 3/8" pull it towards you to remove it.
2 Insert the BIOFIL spout and turn
it through 90° anti-clockwise.

20804T2
441157
TEMPOMATIC wall-mounted basin tap with BIOCLIP spout
Stainless steel spout, M⅜" 20804T2
Stainless steel spout, Ø 15mm for compression fittings 20804T215
Disposable spout, M⅜" 20801T2
TEMPOMATIC cross wall tap 441157
We recommend installing a TMV for taps (see page 103)
Option: stainless steel spouts, disposable spouts or BIOFIL filter spouts We recommend installing a TMV (see page 103)
(see page 89) Alternative spout and cross wall lengths available on request

84 Wall-mounted mixers & taps
