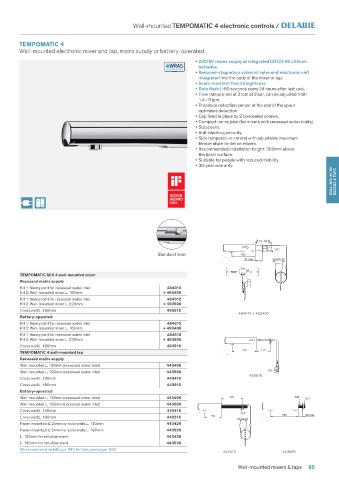

Wall-mounted TEMPOMATIC 4 electronic controls /

TEMPOMATIC 4
Wall-mounted electronic mixer and tap, mains supply or battery-operated

• 230/6V mains supply or integrated CR123 6V Lithium
batteries.
• Reduced-stagnation solenoid valve and electronic unit
integrated into the body of the mixer or tap.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from
1.4 - 6 lpm.
• Presence detection sensor at the end of the spout
optimises detection.
• Cap fixed in place by 2 concealed screws.
• Compact nanny joint (for mixers with recessed water inlets).
• Stopcocks.
• Anti-blocking security.
• Side temperature control with adjustable maximum
temperature limiter on mixers.
• Recommended installation height: 300mm above
the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.
WALL-MOUNTED MIXERS & TAPS

[81,5 ; 83,5]
1/2"
Standard lever 160
34 max 50x50x25

TEMPOMATIC MIX 4 wall-mounted mixer
Recessed mains supply
Kit 1: Nanny joint for recessed water inlet 484012
Kit 2: Wall-mounted mixer L. 160mm + 493400
Kit 1: Nanny joint for recessed water inlet 484012
Kit 2: Wall-mounted mixer L. 220mm + 493500
Cross wall L. 190mm 493510
484012 + 493400
Battery-operated
Kit 1: Nanny joint for recessed water inlet 484612
Kit 2: Wall-mounted mixer L. 160mm + 493406
Kit 1: Nanny joint for recessed water inlet 484612
Kit 2: Wall-mounted mixer L. 220mm + 493506
Cross wall L. 190mm 493516
190 110
TEMPOMATIC 4 wall-mounted tap
Recessed mains supply
Wall-mounted L. 130mm (recessed water inlet) 443400
Wall-mounted L. 190mm (recessed water inlet) 443500 3/8"
493516
Cross wall L. 130mm 443410
Cross wall L. 190mm 443510
Battery-operated
Wall-mounted L. 130mm (recessed water inlet) 443406 165 3/8" 1/2"
Wall-mounted L. 190mm (recessed water inlet) 443506
Cross wall L. 130mm 443416
1/2" 190 30 max
Cross wall L. 190mm 443516 130
50x50x25
Panel-mounted ≤ 24mm or solid walls L. 130mm 443426
Panel-mounted ≤ 24mm or solid walls L. 190mm 443526
L. 130mm for refurbishment 443436
L. 190mm for refurbishment 443536
We recommend installing a TMV for taps (see page 103)
443410 443506
Wall-mounted mixers & taps 85
