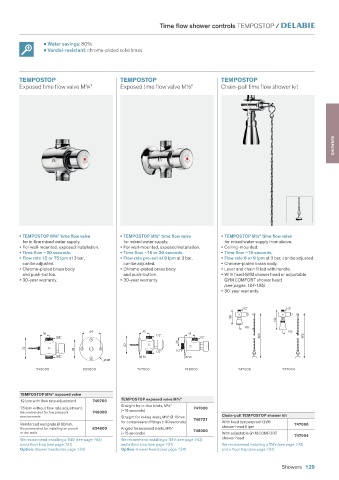

TEMPOSTOP time flow shower controls /

• Exceptional water savings
• Vandal-resistant: chrome-plated brass

TEMPOSTOP TEMPOSTOP TEMPOSTOP
Exposed time flow valve M¾" Exposed time flow valve M½" Chain-pull time flow shower kit

SHOWERS

• TEMPOSTOP M¾" time flow valve • TEMPOSTOP M½" time flow valve • TEMPOSTOP M½" time flow valve
for in-line mixed water supply. for mixed water supply. for mixed water supply from above.
• For wall-mounted, exposed installation. • For wall-mounted, exposed installation. • Ceiling-mounted.
• Time flow ~30 seconds. • Time flow ~15 seconds. • Time flow ~15 seconds.
• Flow rate 12 or 75 lpm at 3 bar, • Flow rate pre-set at 9 lpm at 3 bar, • Flow rate 6 or 9 lpm at 3 bar, can be adjusted.
can be adjusted. can be adjusted. • Chrome-plated brass body.
• Chrome-plated brass body and push-button. • Chrome-plated brass body and push-button. • Lever and chain fitted with handle.
• 30-year warranty. • 30-year warranty. • With fixed GYM shower head or adjustable
GYM COMFORT shower head
(see pages 134 and 135).
• 30-year warranty.

1/2" 1/2"
100
140
105
64 35 105
30 1/2" 35
3/4" 1/2" 600 600
30
62
72 64
1/2" 1/2"
3/4" Ø 50 Ø 50
Ø 80
749000 824800 747000 748000 747006 747004
TEMPOSTOP exposed valve M3/4"
12 lpm with flow rate adjustment 749700 TEMPOSTOP exposed valve M½"
12 lpm with flow rate adjustment - Straight for in-line inlets,
M¾" - M½" Ø 15mm compression 749721 M½" (~15 seconds) 747000
75 lpm without flow rate adjustment. 749000 Straight for in-line inlets,
Recommended for low pressure environments M½" Ø 15mm compression fittings 749721 Chain-pull TEMPOSTOP shower kit
(~30 seconds) With fixed tamperproof GYM shower
Reinforced wall plate Ø 80mm. 747006
Recommended for installing on panels 824800 Angled for recessed inlets, 748000 head 6 lpm
or dry walls M½" (~15 seconds) With adjustable GYM COMFORT 747004
We recommend installing a TMV (see page 143) We recommend installing a TMV (see page 143) shower head
and a floor trap (see page 131) and a floor trap (see page 131) We recommend installing a TMV
Option: shower heads (see page 134) Option: shower heads (see page 134) (see page 143) and a floor trap (see page 131)

Showers 129
