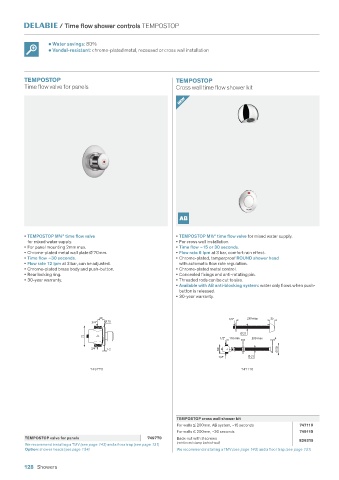

Page 130 - water-controls-for-public-commercial-places

/ TEMPOSTOP time flow shower controls

• Exceptional water savings
• Vandal-resistant: chrome-plated metal, recessed or cross wall installation

TEMPOSTOP TEMPOSTOP
Cross wall time flow shower kit Time flow valve for panels

• TEMPOSTOP M½" time flow valve for mixed water supply. • TEMPOSTOP M¾" time flow valve
• For cross wall installation. for mixed water supply.
• Time flow ~15 or 30 seconds. • For panel mounting 2mm max.
• Flow rate 6 lpm at 3 bar. • Chrome-plated metal wall plate Ø 70mm.
• Chrome-plated, tamperproof ROUND shower head with automatic flow rate regulation. • Time flow ~30 seconds.
• Chrome-plated metal control. • Flow rate 12 lpm at 3 bar, can be adjusted.
• Concealed fixings and anti-rotating nut. • Chrome-plated brass body and push-button.
• Threaded rods can be cut to size. • Rear locking ring.
• Available with AB anti-blocking system: water only flows when push-button is released. • 30-year warranty.
• 30-year warranty.

1/2" 230 max 35 Ø21 230 max 35
1/2" 20
3/4" Ø 70
Ø 21 1/2" 110 min 200 max 4
1/2" 110 min 200 max 4 72
60 Ø50
60 Ø 50 1/2" Ø21 3/4"
1/2"
1/2" Ø 21 1-2

747110 747210 749770

TEMPOSTOP cross wall shower kit
For walls ≤ 200mm, AB anti-blocking system, ~15 seconds - single control 747110
For walls ≤ 200mm, ~30 seconds - single control 749110
TEMPOSTOP valve for panels 749770
For walls ≤ 200 mm, AB anti-blocking system, ~15 seconds - dual control 747210
We recommend installing a TMV (see page 143)
Back-nut with 3 screws (reinforced clamp behind wall) 826315
and a floor trap (see page 131)
We recommend installing a TMV (see page 143) and a floor trap (see page 131) Option: shower heads (see page 134)
128 Showers
