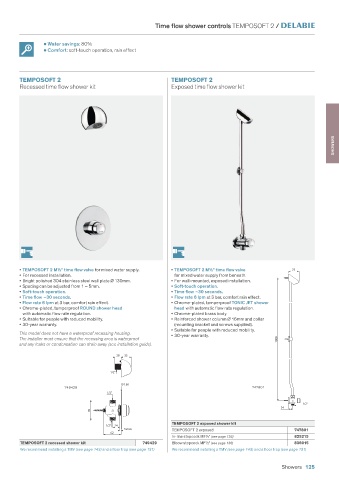

Page 127 - water-controls-for-public-commercial-places

TEMPOSOFT 2 time flow shower controls /

• Exceptional water savings: 80%
• Comfort: soft-touch operation

TEMPOSOFT 2 TEMPOSOFT 2 TEMPOSOFT 2
Recessed time flow shower valve Exposed time flow shower valve Time flow shower valve for panels

SHOWERS

• TEMPOSOFT 2 M½" time flow valve • TEMPOSOFT 2 M½" time flow valve • TEMPOSOFT 2 M½" time flow valve
for mixed water supply. for mixed water supply. for mixed water supply.
• For recessed installation. • For wall-mounted exposed installation. • For panels or dry walls 7mm max.
• Bright polished 304 stainless steel wall plate • Soft-touch operation. • Soft-touch operation.
Ø 130mm. • Time flow ~30 seconds. • Time flow ~30 seconds.
• Spacing can be adjusted from 1 – 5mm. • Flow rate pre-set at 6 lpm at 3 bar, • Flow rate pre-set at 6 lpm at 3 bar,
• Soft-touch operation. can be adjusted. can be adjusted.
• Time flow ~30 seconds. • Chrome-plated brass body. • Chrome-plated brass body.
• Flow rate pre-set at 6 lpm at 3 bar, • Suitable for people with reduced mobility. • Suitable for people with reduced mobility.
can be adjusted. • 30-year warranty. • 30-year warranty.
• Chrome-plated brass body.
• Suitable for people with reduced mobility. 75 This model does not have a waterproof
• 30-year warranty. recessing housing. The installer must ensure
that the recessing area is waterproof
This model does not have a waterproof and any leaks or condensation can drain away
recessing housing. The installer must ensure (see installation guide).
that the recessing area is waterproof
and any leaks or condensation can drain away
(see installation guide).

20 35
1000
1/2"
Ø 130 Ø 130
1/2" 1/2"
34 1/2"
70 70 1/2" 7 max
35
70
1/2" 24 1/2" 24
5 max 5 max Ø 48
62 62 1/2" 1/2"
34
749429 749428 747801 748800 749870

TEMPOSOFT 2 exposed shower
TEMPOSOFT 2 recessed shower Shower kit with shower rail 747801
Shower kit with ROUND shower head 749429 Straight for in-line inlet 747800
Valve only without head 749428 Angled for recessed inlet 748800 TEMPOSOFT 2 valve for panels 749870
We recommend installing a TMV (see page 143) We recommend installing a TMV (see page 143) We recommend installing a TMV (see page 143)
and a floor trap (see page 131) and a floor trap (see page 131) and a floor trap (see page 131)
Option: shower heads (see page 134) Option: shower heads (see page 134) Option: shower heads (see page 134)

Showers 125
