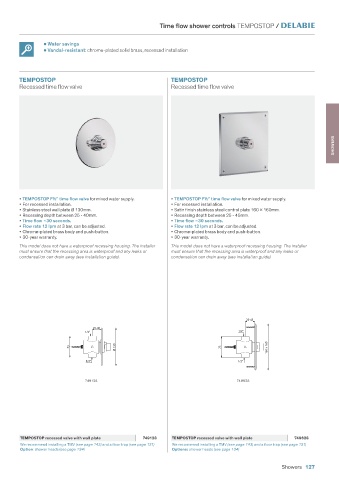

Page 129 - water-controls-for-public-commercial-places

TEMPOSTOP time flow shower controls /

• Exceptional water savings
• Vandal-resistant: chrome-plated solid brass, recessed installation

TEMPOSTOP TEMPOSTOP
Recessed time flow shower valve Recessed time flow shower valve

SHOWERS

• TEMPOSTOP F1/2" time flow shower valve for mixed water supply. • TEMPOSTOP F1/2" time flow shower valve for mixed water supply.
• For recessed installation. • For recessed installation.
• Stainless steel wall plate Ø 130mm. • Satin finish stainless steel control plate 160 160mm.
• Recessing depth between 25 - 40mm. • Recessing depth between 25 - 45mm.
• Time flow ~30 seconds. • Time flow ~30 seconds.
• Flow rate 12 lpm at 3 bar, can be adjusted. • Flow rate 12 lpm at 3 bar, can be adjusted.
• Chrome-plated brass body and push-button. • Chrome-plated brass body and push-button.
• 30-year warranty. • 30-year warranty.
This model does not have a waterproof recessing housing. This model does not have a waterproof recessing housing.
The installer must ensure that the recessing area is waterproof The installer must ensure that the recessing area is waterproof
and any leaks or condensation can drain away (see installation guide). and any leaks or condensation can drain away (see installation guide).

25-45

25-40 1/2"
1/2"

73 Ø 130 73 160 x 160

1/2"
1/2"

749128 749628

TEMPOSTOP recessed valve with wall plate 749128 TEMPOSTOP recessed valve with wall plate 749628
We recommend installing a TMV (see page 143) and a floor trap (see page 131) We recommend installing a TMV (see page 143) and a floor trap (see page 131)
Option: shower heads (see page 134) Options: shower heads (see page 134)

Showers 127
