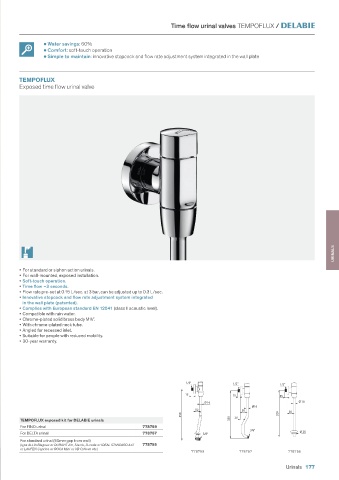

TEMPOFLUX time flow urinal valves /

                       •  Exceptional water savings: 60%
                       •  Comfort: soft-touch operation
                       •  Simple to maintain: innovative stopcock and flow rate adjustment system integrated in the wall plate



               TEMPOFLUX
               Exposed time flow urinal valve

































                                                                                                                             URINALS



               • For standard or siphon action urinals.
               • For wall-mounted, exposed installation.
               • Soft-touch operation.
               • Time flow ~3 seconds.
               • Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
               • Innovative stopcock and flow rate adjustment system integrated
                in the escutcheon (patented).
               • Complies with European standard EN 12541 (class II acoustic level).
               • Compatible with rain water.
               • Chrome-plated solid brass body M½".
               • With chrome-plated neck tube.
               • Angled for recessed inlet.
               • Suitable for people with reduced mobility.
               • 30-year warranty.







                                                                           1/2"             1/2"            1/2"

                                                                           15               15              15
                                                                                  Ø 16                             Ø 16
                                                                                                  Ø16
                                                                              50               50
               TEMPOFLUX exposed kit for DELABIE urinals                 350                               320  50
               For FINO urinal                            778759                          330  20
               For DELTA urinal                           778757
                                                                                                  3/8"
               TEMPOFLUX exposed kit for urinals with rim                        3/8"                              Ø 35
               For standard urinal (50mm gap from wall)
               (type ALLIA Blagnac or DURAVIT Jim, Starck, D-code or IDEAL STANDARD   778755
               Axif or LAUFEN Caprino or ROCA Mini or VB O.Novo etc.)
                                                                             778759           778757           778755
                                                                                                            Urinals  177
