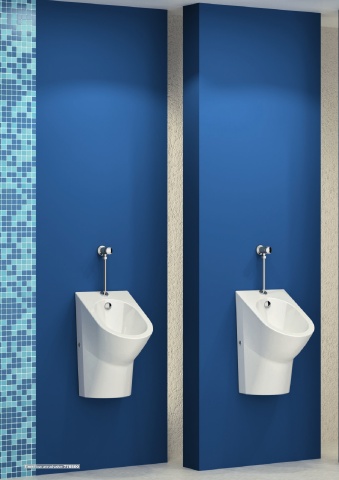

/ TEMPOSOFT 2  time flow urinal valves

                         •  Exceptional water savings: 60%
                         •  Vandal-resistant: solid brass, recessed model
                         •  Comfort: soft-touch operation



                 TEMPOSOFT 2                                                  TEMPOSOFT 2
                 Exposed time flow urinal valve                                Wall-mounted recessed time flow urinal valve






















                                                                              TEMPOSOFT 2 recessed time flow urinal valve:
                                                                              • Bright polished stainless steel wall plate Ø 130mm.
                                                                              • Spacing can be adjusted from 1 - 5mm.








                 • For standard or siphon action urinals.
                 • Soft-touch operation.
                 • Compatible with rain water.
                 • Time flow ~3 seconds.
                 • Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted.
                 • Chrome-plated brass body M½".
                 • Suitable for people with reduced mobility.
                 • 30-year warranty.

                 The recessed version of this urinal valve does not have a waterproof recessing housing.
                 The installer must ensure that the recessing area is waterproof and any leaks
                 or condensation can drain away (see installation guide).




                                                                              TEMPOSOFT 2 time flow urinal valve for panels:
                                                                              • For panels or dry wall installation up to 7mm maximum.


                                                                                             Ø 130
                                                                                         1/2"              1/2"
                                                     Ø 48
                                 Ø 48                       1/2"                                              Ø 35
                              1/2"
                                                  70                                70                 70
                                      1/2"                  1/2"                                               7 max
                                  34                    34                             1/2"  24          1/2"  24
                                                                                             5 max
                                                                                         62                62
                                 778800               777800                            777130            777140

                 TEMPOSOFT 2 exposed urinal valve                              TEMPOSOFT 2 urinal valve, recessed or for panels
                 Straight for in-line inlets                        777800     Recessed behind a wall plate      777130
                 Angled for recessed inlets                         778800     For panels or dry walls           777140
                 Options: unions and neck tubes (see page 182)                 Options: unions and neck tubes (see page 182)
