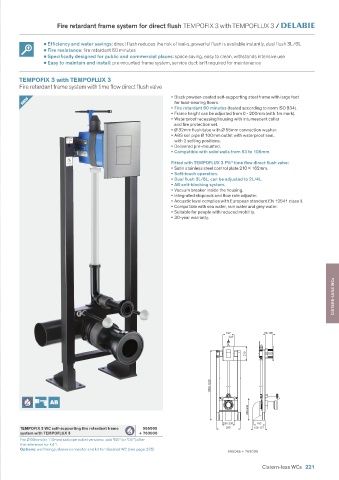

Fire retardant frame system for direct flush TEMPOFIX 3 with TEMPOFLUX 3 /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, dual flush 3L/6L
• Fire resistance: fire retardant 60 minutes
• Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
• Easy to maintain and install: pre-mounted frame system, service duct isn't required for maintenance

TEMPOFIX 3 with TEMPOFLUX 3
Fire retardant frame system with time flow direct flush valve

NEW • Black powder-coated self-supporting steel frame with large feet
for load-bearing floors.
• Fire retardant 60 minutes (tested according to norm ISO 834).
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Waterproof recessing housing with intumescent collar
and fire protection set.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe Ø 100mm outlet with waterproof seal,
with 2 setting positions.
• Delivered pre-mounted.
• Compatible with solid walls from 53 to 105mm.

Fitted with TEMPOFLUX 3 F¾" time flow direct flush valve:
• Satin stainless steel control plate 210 162mm.
• Soft-touch operation.
• Dual flush 3L/6L, can be adjusted to 2L/4L.
• AB anti-blocking system.
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Acoustic level complies with European standard EN 12541 class II.
• Compatible with sea water, rain water and grey water.
• Suitable for people with reduced mobility.
• 30-year warranty.

CISTERN-LESS WCs

162 53-105
3/4"

210

1000-1320

300-620

180-230 165
TEMPOFIX 3 WC self-supporting fire retardant frame 565065 350 155-177
system with TEMPOFLUX 3 + 763000
For Ø 90mm (or 110mm) soil pipe outlet versions: add "BE" (or "DE") after
the reference for kit 1
Options: wall fixings, sleeve connector and kit for disabled WC (see page 235)
565065 + 763000
Cistern-less WCs 221
