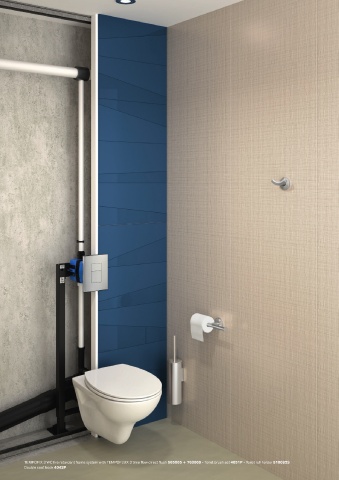

/ TEMPOFLUX 3 time flow direct flush systems


                 TEMPOFLUX 3 RECESSED:
                 100% WATERPROOF RECESSED HOUSING, MODULAR AND ADAPTABLE

                 Modular                                              100% waterproof
                 DELABIE's recessed housing can be attached from the sides, front   Standard housings on the market are designed to be cut to size flush
                 or back, to be fixed to plasterboard rails, load-bearing walls or even   to the wall, which increases the risk of leaks between the wall
                 thin panels. The installation is therefore modular, and adapts to suit   and the collar.
                 any project.                                         DELABIE's recessed housing is equipped with a collar with an
                                                                      integrated seal, that clips onto the housing once the wall finish
                                                                      is in place (patented system).
                                                                      It is completely waterproof without silicone. Any condensation
                                                                      is evacuated via the plate. The wall stays intact throughout.





                  Plasterboard rails  Load-bearing walls  Panels


                 Adaptable
                 The ideal positioning of the collar allows the housing to be cut to size
                 lengthwise depending on the wall thickness, whilst still guaranteeing
                 a complete waterproofing seal. The housing adapts to all wall depth   Collar with integrated waterproof seal
                 requirements, thick or thin, from 10 to 120mm.
                                                                      Resistant to intensive use and vandalism
                                                                      The control plate, made from satin finish stainless steel will
                                                                      withstand even the most extreme handling. Its fixings are concealed
                                                                      and its streamlined design prevents unwanted removal.
                                                                      To prevent abuse or waste, the TEMPOFLUX 3 is fitted
                                                                      with an AB anti-blocking system. This security feature prevents
                                                                      the valve from being blocked in the open position. The flush takes
                                                                      place only when the push-button is released.

                                                                      Minimal servicing and simple to maintain
                         Thick wall finish      Narrow wall finish      Maintenance is carried out from the front by simply removing
                          Max. 120mm              Min. 10mm
                                                                      the control plate. The technical elements are accessible
                                                                      and the component parts come pre-assembled.
                 Quick and easy to install                            The flush volume can be adjusted directly behind the control plate,
                 The TEMPOFLUX 3 can be connected to standard pipework or   without shutting off the water supply or removing the valve.
                 "pipe-in-pipe". The hydraulic connection is made from the outside    The vacuum breaker is located inside the housing.
                 of the housing.                                      In case of backflow, the water will evacuate in front of the wall
                 During installation, the cartridge is replaced by a temporary cap    via the housing, and not behind (or into) the wall.
                 to flush the system safely, without damaging the technical elements.  The TEMPOFLUX 3 is compatible with sea water, rain water,
                                                                      and grey water.
                                               Cartridge              Making protection from frost and in-depth maintenance easier,
                                                                      the valve can be disconnected and removed from the inside,
                                                                      without removing the housing.
                                                                      Comfort
                                                                      Thanks to its soft-touch operation, the TEMPOFLUX 3 can be used
                                                                      by all users (children, the elderly or people with reduced mobility).
                                               Temporary cap
                                                                      The acoustic level is low and complies with European standard
                                                                      EN 12541 class II.
                 Water savings
                 The TEMPOFLUX 3 with 3L/6L dual flush optimises flushing    Design
                 and water consumption. The flush volume can be adjusted to 2L/4L,   The TEMPOFLUX 3 control plate has a timeless design available
                 to achieve the highest standards for environmental labels.    in 3 finishes: satin finish stainless steel, chrome-plated metal
                 For more information see page 8.                     or black glass.
                 The AB anti-blocking device limits the flush volume regardless    Thanks to its sleek lines, it fits perfectly in any type of public
                 of how long the push-button is pressed for.          or commercial building. Its smooth surface limits the build-up of dirt
                                                                      and facilitates cleaning.
