Frame systems for direct flush TEMPOFIX 3 with TEMPOFLUX 3 /

                       •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, dual flush 3L/6L
                       •  Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
                       •  Easy to install: frame system delivered pre-mounted, clip into place assembly
                       •  Hygiene: no cistern: no water stagnation (reduces bacterial development)

               TEMPOFIX 3 with TEMPOFLUX 3

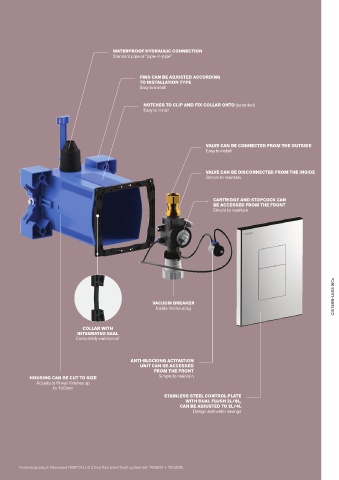

               Frame system with time flow flush valve
                                                                    • Black powder-coated steel frame.
                                                                    • Frame height can be adjusted from 0 - 200mm (with 1m mark).
                                                                    • Waterproof recessing housing.
                                                                    • Ø 32mm flush tube with Ø 55mm connection washer.
                                                                    • ABS soil pipe Ø 100mm outlet with waterproof seal,
                                                                     with 2 setting positions.
                                                                    • Delivered pre-mounted.
                                                                    • Compatible with solid wall finishes from 10 - 120mm.
                                                                    Available in 2 versions:
                                                                    Self-supporting frame system with large feet to fix to load-bearing floors.
                                                                    Wall-mounted frame system to fix to load-bearing walls.

                                                                    Fitted with TEMPOFLUX 3 F¾" time flow direct flush valve:
                                                                    • Satin stainless steel control plate 210   162mm,
                                                                     chrome-plated metal 170   170mm
                                                                      or black tempered glass 205   190mm.
                                                                    • Soft-touch operation.
                                                                    • Dual flush 3L/6L, can be adjusted to 2L/4L or single flush 6L.
                                                                    • AB anti-blocking system.
                                                                    • Vacuum breaker inside the housing.
                                                                    • Integrated stopcock and flow rate adjuster.
                                                                    • Acoustic level complies with European standard EN 12541 class II.
                                                                    • Compatible with sea water, rain water and grey water.
                                                                    • Suitable for people with reduced mobility.
                                                                    • 30-year warranty.

                                                                                            162              10-120
                                                                                             3/4"
                                                                                                   210





                                                                                       1000-1320                            CISTERN-LESS



                                                                                                        300-620               WCs
               TEMPOFIX 3 WC frame system with TEMPOFLUX 3
               Satin finish stainless steel control plate
                                                                                           180-230         165
                                                             564065                         350           157-177
               Self-supporting model, dual flush
                                                         + 763000         564065+ 763000
                                                             564060
               Wall-mounted model, dual flush
                                                         + 763000
                                                                                           170x170       160-220 10-120
               Chrome-plated metal control plate                                             3/4"
                                                             564065
               Self-supporting model, dual flush
                                                         + 763040
                                                             564060
               Wall-mounted model, dual flush
                                                         + 763040
                                                             564065
               Self-supporting model, single flush
                                                         + 763041
                                                             564060
               Wall-mounted model, single flush
                                                         + 763041                      1000-1320
               Black glass control plate
                                                             564065
               Self-supporting model, dual flush
                                                         + 763030
                                                             564060
               Wall-mounted model, dual flush                                                           300-620
                                                         + 763030
               For Ø 90mm (or 110mm) soil pipe outlet versions:  add "BE" (or "DE")
               after the reference for kit 1                                               180-230       157-177
               Options: wall fixings, sleeve connector and kit for disabled WC (see page 233)  350
                                                                          564060 + 763040
                                                                                                    Cistern-less WCs  219
