/ TEMPOFIX 3 with TEMPOFLUX 3 fire retardant frame system for direct flush

                         •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, dual flush 3L/6L
                         •  Fire resistance: fire retardant 60 minutes
                         •  Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
                         •  Easy to maintain and install: pre-mounted frame system, service duct isn't required for maintenance

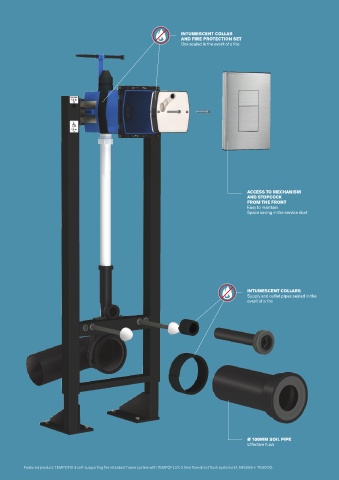

                                                                      TEMPOFIX 3 with TEMPOFLUX 3
                                                                      Fire retardant frame system with time flow direct flush


































                                                                      • Black powder-coated self-supporting steel frame with large feet
                                                                       for load-bearing floors.
                                                                      • Fire retardant 60 minutes (tested according to ISO 834).
                                                                      • Frame height can be adjusted from 0 - 200mm (with 1m mark).
                                                                      • Recessed waterproof housing: with intumescent collar and fire
                                                                       protection set.
                                                                      • Ø 32mm flush tube with Ø 55mm connection washer.
                                                                      • ABS soil pipe with Ø 100mm outlet with waterproof seal,
                                                                       with 2 setting positions and intumescent collar for fire protection.
                                                                      • Delivered pre-mounted.
                                                                      • Compatible with solid walls from 53 to 105mm
                                                                       (4 BA13 and tiling at minimum).
                                                                      Fitted with TEMPOFLUX 3 F¾" time flow direct flush valve:
                                                                      • Satin stainless steel control plate 210   162mm.
                                                                      • Control plate fixed manually via concealed screws.
                                                                      • Soft-touch operation.
                                                                      • Dual flush 3L/6L, can be adjusted to 2L/4L.
                                                                      • AB anti-blocking system.
                                                                      • Vacuum breaker inside the housing.
                                                                      • Integrated stopcock and flow rate adjuster.
                                                                      • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                                                                       is required at all points (connectors included).
                                                                      • Base flow rate: 1 L/sec at 1 bar dynamic pressure.
                                                                      • Acoustic level complies with European standard EN 12541 class II.
                                                                      • Compatible with sea water, rain water and grey water.
                                                                      • Suitable for people with reduced mobility.
                                                                      • 30-year warranty.





                                                                      TEMPOFIX 3 WC self-supporting fire retardant        565065
                                                                      frame system with TEMPOFLUX 3             + 763000
                                                                      For Ø 90mm (or 110mm) soil pipe outlet versions : add "BE" (or"DE")
                                                                      after the reference for kit 1.
                                                                      Options: wall fixings, sleeve connector and kit for accessible WCs (see page 233)
