P. 226

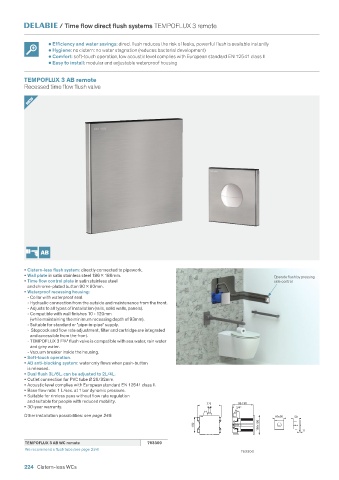

/ TEMPOFLUX 3 remote time flow direct flush systems

                         •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                         •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                         •  Comfort: soft-touch controls, low acoustic level complies with EU standard EN 12541 class II, suitable for accessible WCs
                         •  Easy to install: modular and adjustable waterproof housing

                 TEMPOFLUX 3 AB remote
                 Recessed time flow flush valve






































                 • Flush system without cistern: directly connected to pipework.
                 • Wall plate in satin stainless steel 186   186mm.                                 Operate flush by pressing
                 • Time flow control plate in satin stainless steel                                  side control
                  with chrome-plated button 90   90mm.
                 • Control plate fixed manually via concealed screws.
                 • Recessed waterproof housing:
                  - Collar with waterproof seal.
                  - Hydraulic connection from the outside and maintenance from the front.
                  - Adjusts to all types of installation (rails, solid walls, panels).
                  - Compatible with wall finishes 10 - 120mm
                     (while maintaining the minimum recessing depth of 93mm).
                  - Suitable for standard or "pipe-in-pipe" supply.
                  -  Stopcock and flow rate adjustment, filter and cartridge are integrated
                     and accessible from the front.
                  - TEMPOFLUX 3 F¾" flush valve is compatible with sea water,
                     rain water and grey water.
                  - Vacuum breaker inside the housing.
                 • Soft-touch operation.
                 • AB anti-blocking system: water only flows when push-button
                  is released.
                 • Dual flush 3L/6L, can be adjusted to 2L/4L.
                 • Outlet connection for PVC tube Ø 26/32mm.
                 • Acoustic level complies with European standard EN 12541 class II.
                 • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                  is required at all points (connectors included).
                 • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.            225        93-190
                 • Suitable for rimless WC pans and for people with reduced mobility.      3/4"
                 • 30-year warranty.
                                                                                                         90x90  50
                 For other installation options: see page 247.
                                                                            150                    186x186        11
                 TEMPOFLUX 3 AB WC remote                   763300
                 We recommend a flush tube (see page 232)
                                                                                             763300
                 224 Cistern-less WCs
