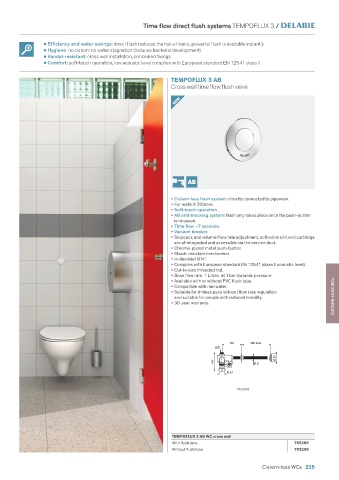

TEMPOFLUX 3 time flow direct flush systems /

                       •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                       •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                       •  Vandal-resistant: cross wall installation, concealed fixings
                       •  Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II

                                                                    TEMPOFLUX 3 AB
                                                                    Cross wall time flow flush valve























                                                                    • Flush system without cistern: directly connected to pipework.
                                                                    • For walls ≤ 200mm.
                                                                    • Soft-touch operation.
                                                                    • AB anti-blocking system: flush only takes place once the push-button
                                                                     is released.
                                                                    • Time flow ~7 seconds.
                                                                    • Vacuum breaker.
                                                                    • Stopcock and volume/flow rate adjustment, activation unit
                                                                     and cartridge are all integrated and accessible via the service duct.
                                                                    • Chrome-plated metal push-button.
                                                                    • Shock-resistant mechanism.
                                                                    • In-line inlet M¾".
                                                                    • Complies with European standard EN 12541 (class II acoustic level).
                                                                    • Threaded rod can be cut-to-size.
                                                                    • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                                                                     is required at all points (connectors included).
                                                                    • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
                                                                    • Available with or without PVC flush tube.
                                                                    • Compatible with rain water.
                                                                    • Suitable for rimless WC pans and for people with reduced mobility.  CISTERN-LESS
                                                                    • 30-year warranty.                                       WCs







                                                                                        136     200 max
                                                                                   3/4"
                                                                                                         Ø 50
                                                                                   147            Ø 21
                                                                                        Ø 32


                                                                                           763256







                                                                    TEMPOFLUX 3 AB WC cross wall
                                                                    With flush tube                             763266
                                                                    Without flush tube                          763256


                                                                                                    Cistern-less WCs  225
