P. 232

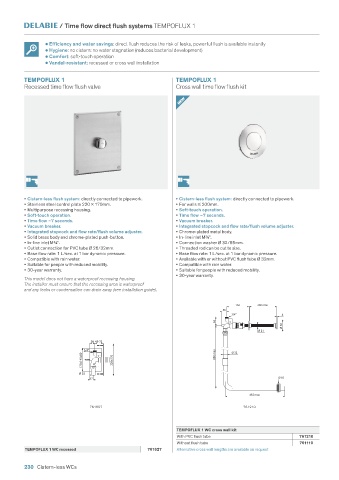

/ TEMPOFLUX 1 time flow direct flush systems

                        •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                        •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                        •  Comfort: soft-touch operation




                 TEMPOFLUX 1                        TEMPOFLUX 1                        TEMPOFLUX 1
                 Recessed time flow WC flush valve    Exposed compact WC flush kit        Exposed time flow WC flush kit























                 • Flush system without cistern: directly   • Flush system without cistern: directly   • Flush system without cistern: directly
                  connected to pipework.             connected to pipework.              connected to pipework.
                 • Stainless steel control plate 220   170mm    • For wall-mounted, exposed installation.  • For wall-mounted, exposed installation.
                  or chrome-plated brass escutcheon Ø 195mm.  • Soft-touch operation.  • Soft-touch operation.
                 • Adaptable recessed housing.      • Time flow ~7 seconds.             • Time flow ~7 seconds.
                 • Soft-touch operation.            • Vacuum breaker.                  • Vacuum breaker.
                 • Time flow ~7 seconds.             • Integrated stopcock and flow rate/flush   • Available with or without stopcock and flow
                 • Vacuum breaker.                   volume adjuster.                    rate/flush volume adjuster.
                 • Integrated stopcock and flow rate/flush   • Chrome-plated brass body and push-button.  • Chrome-plated brass body and push-button.
                  volume adjuster.                  • Angled inlet M¾".                • Angled inlet ¾".
                 • Brass body and chrome-plated push-button.  • Supply pipe diameter: Ø 20mm minimum   • Supply pipe diameter: Ø 20mm minimum
                 • In-line inlet M¾".                internal pipe diameter is required at all points   internal pipe diameter is required at all points
                 • Outlet connection for PVC tube Ø 26/32mm.  (connectors included).     (connectors included).
                 • Supply pipe diameter: Ø 20mm minimum   • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.   • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
                  internal pipe diameter is required at all points   • Available with or without stainless steel flush tube.  • Available with or without stainless steel flush tube.
                  (connectors included).            • Compatible with rain water.      • Compatible with rain water.
                 • Base flow rate: 1 L/sec. at 1 bar dynamic   • Suitable for people with reduced mobility.  • Suitable for people with reduced mobility.
                  pressure.                         • 30-year warranty.                • 30-year warranty.
                 • Compatible with rain water.                                                75
                 • Suitable for people with reduced mobility.
                                                                                                               25
                 • 30-year warranty.
                                                                                           3/4"             3/4"
                                                                                                 Ø 28
                 This model does not have a waterproof recessed
                 housing. The installer must ensure that                                        215 max      55
                 the recessing area is waterproof and any leaks                              550 max              Ø 25
                 or condensation can drain away (see installation   46                                       85   Ø 24
                 guide).
                                                           3/4"
                       38 45-72         38 42-65               Ø 28            46                     Ø 55
                    3/4"              3/4"                565 max  215 max  3/4"               761002         761025
                   170x145x80  220x170  170x145x80                           70         TEMPOFLUX 1 WC exposed
                                                                                        With separate elbow stopcock F¾"
                                                                               Ø 28     Kit with flush tube, collar
                   Ø 25             Ø 25                                                                         761002
                                             Ø 195                  Ø 55                and connection washer
                      27                27
                                                                                        Without stopcock M¾"
                      761627           761900                761003           761001    Kit with flush tube, collar
                                                                                        and connection washer    761004
                                                                                        With outlet nut Ø 28mm,    761000
                                                                                        without flush tube
                 TEMPOFLUX 1 WC recessed                                                With flush tube Ø 25mm and Ø 24mm
                 Stainless steel control plate    761627                                (replacements for SCHELL & BINE   761025
                 220   170mm                        TEMPOFLUX 1 WC exposed              120000 models)
                 Chrome-plated brass escutcheon    761900  Kit with tube, collar and connection   761003  Accessories
                 Ø 195mm                            washer                              Elbow stopcock FF¾"      765020
                 We recommend a flush tube (see page 232)  Exposed time flow valve only  761001  Flat wall plate   292020

                 230 Cistern-less WCs
