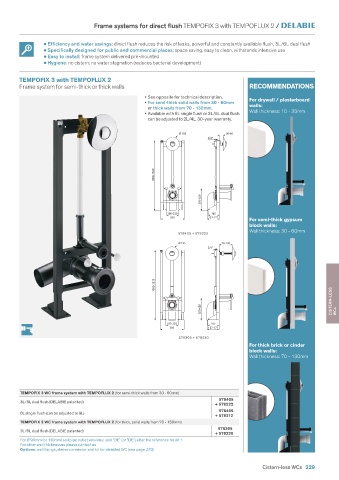

Frame systems for direct flush TEMPOFIX 3 with TEMPOFLUX 2 /

                       •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful and constantly available flush, 3L/6L dual flush
                       •  Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
                       •  Easy to install: frame system delivered pre-mounted
                       •  Hygiene: no cistern: no water stagnation (reduces bacterial development)

               TEMPOFIX 3 with TEMPOFLUX 2
               Frame system for semi-thick or thick walls                                       RECOMMENDATIONS

                                                           • See opposite for technical description.
                                                           • For semi-thick solid walls from 30 - 60mm    For drywall / plasterboard
                                                                                                walls:
                                                            or thick walls from 70 - 130mm.
                                                           • Available with 6L single flush or 3L/6L dual flush   Wall thickness: 10 - 35mm
                                                            can be adjusted to 2L/4L. 30-year warranty.

                                                                       Ø 195           30-60
                                                                                 3/4"





                                                              1000-1320



                                                                              300-620


                                                                   180-230        165
                                                                    350          157-177
                                                                                                For semi-thick gypsum
                                                                                                block walls:
                                                                                                Wall thickness: 30 - 60mm
                                                                       578405 + 578222
                                                                       Ø 195          70-130
                                                                                 3/4"






                                                              1000-1320



                                                                              300-620                                       CISTERN-LESS   WCs


                                                                   180-230        165
                                                                    350          157-177
                                                                       578305 + 578230
                                                                                                For thick brick or cinder
                                                                                                block walls:
                                                                                                Wall thickness: 70 - 130mm






               TEMPOFIX 3 WC frame system with TEMPOFLUX 2 (for semi-thick walls from 30 - 60mm)
                                                                                      578405
               3L/6L dual flush (DELABIE patented)
                                                                                   + 578222
                                                                                      578405
               6L single flush (can be adjusted to 9L)
                                                                                   + 578212
               TEMPOFIX 3 WC frame system with TEMPOFLUX 2 (for thick, solid walls from 70 - 130mm)
                                                                                     578305
               3L/6L dual flush (DELABIE patented)
                                                                                   + 578230
               For Ø 90mm (or 110mm) soil pipe outlet versions:  add "BE" (or "DE") after the reference for kit 1
               For other wall thicknesses please contact us
               Options: wall fixings, sleeve connector and kit for disabled WC (see page 233)
                                                                                                    Cistern-less WCs  229
