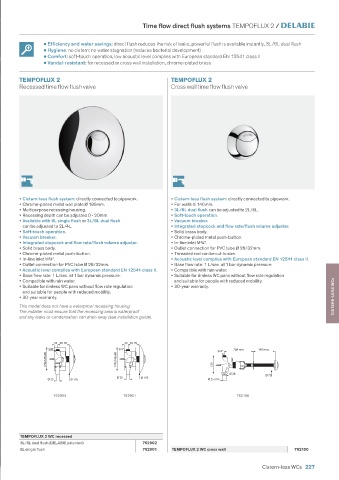

TEMPOFLUX 2 time flow direct flush systems /

                       •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, 3L/6L dual flush
                       •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                       •  Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II
                       •  Vandal-resistant: recessed with concealed fixings or cross wall installation, chrome-plated solid brass

               TEMPOFLUX 2                                          TEMPOFLUX 2
               Recessed time flow flush valve                         Cross wall time flow flush valve























               • Flush system without cistern: directly connected to pipework.  • Flush system without cistern: directly connected to pipework.
               • Chrome-plated metal control plate Ø 195mm.         • For walls ≤ 140mm.
               • Escutcheon fixed via concealed screws.              • 3L/6L dual flush can be adjusted to 2L/4L.
               • Adaptable recessed housing.                        • Soft-touch operation.
               • Recessing depth can be adjusted 0 - 20mm.          • Vacuum breaker.
               • Available with 6L single flush or 3L/6L dual flush    • Integrated stopcock and flow rate/flush volume adjuster.
                can be adjusted to 2L/4L.                           • Brass body.
               • Soft-touch operation.                              • Chrome-plated metal push-button.
               • Vacuum breaker.                                    • In-line inlet M¾".
               • Integrated stopcock and flow rate/flush volume adjuster.  • Outlet connection for PVC tube Ø 26/32mm.
               • Brass body.                                        • Threaded rod can be cut to size.
               • Chrome-plated metal push-button.                   • Acoustic level complies with European standard EN 12541 class II.
               • In-line inlet M¾".                                 • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
               • Outlet connection for PVC tube Ø 26/32mm.           is required at all points (connectors included).
               • Acoustic level complies with European standard EN 12541 class II.  • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
               • Supply pipe diameter: Ø 20mm minimum internal pipe diameter    • Compatible with rain water.
                is required at all points (connectors included).    • Suitable for rimless WC pans and for people with reduced mobility.
               • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.   • 30-year warranty.
               • Compatible with rain water.
               • Suitable for rimless WC pans and for people with reduced mobility.                                         CISTERN-LESS
               • 30-year warranty.                                                                                            WCs
               This model does not have a waterproof recessed housing.
               The installer must ensure that the recessing area is waterproof
               and any leaks or condensation can drain away (see installation guide).




                         33 58-78                 33 58-78
                       3/4"                     3/4"                                      208 min  140 max
                                                                                     3/4"
                      170x145x80               170x145x80                          125


                                                                                         Ø 28         Ø 70
                                               Ø 25     Ø 195
                       Ø 25    Ø 195                                             Ø 25 min
                        762902                   762901                                    762150



               TEMPOFLUX 2 WC recessed
               3L/6L dual flush (DELABIE patented)         762902
               6L single flush                             762901
               We recommend a flush tube (see page 232)              TEMPOFLUX 2 WC cross wall                  762150

                                                                                                    Cistern-less WCs  227
