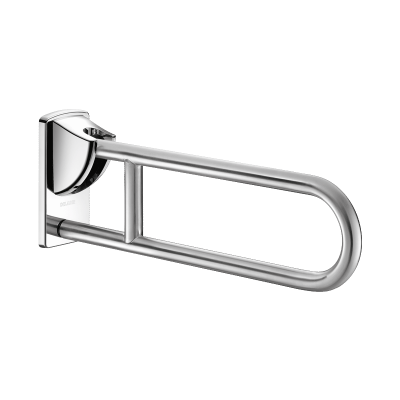

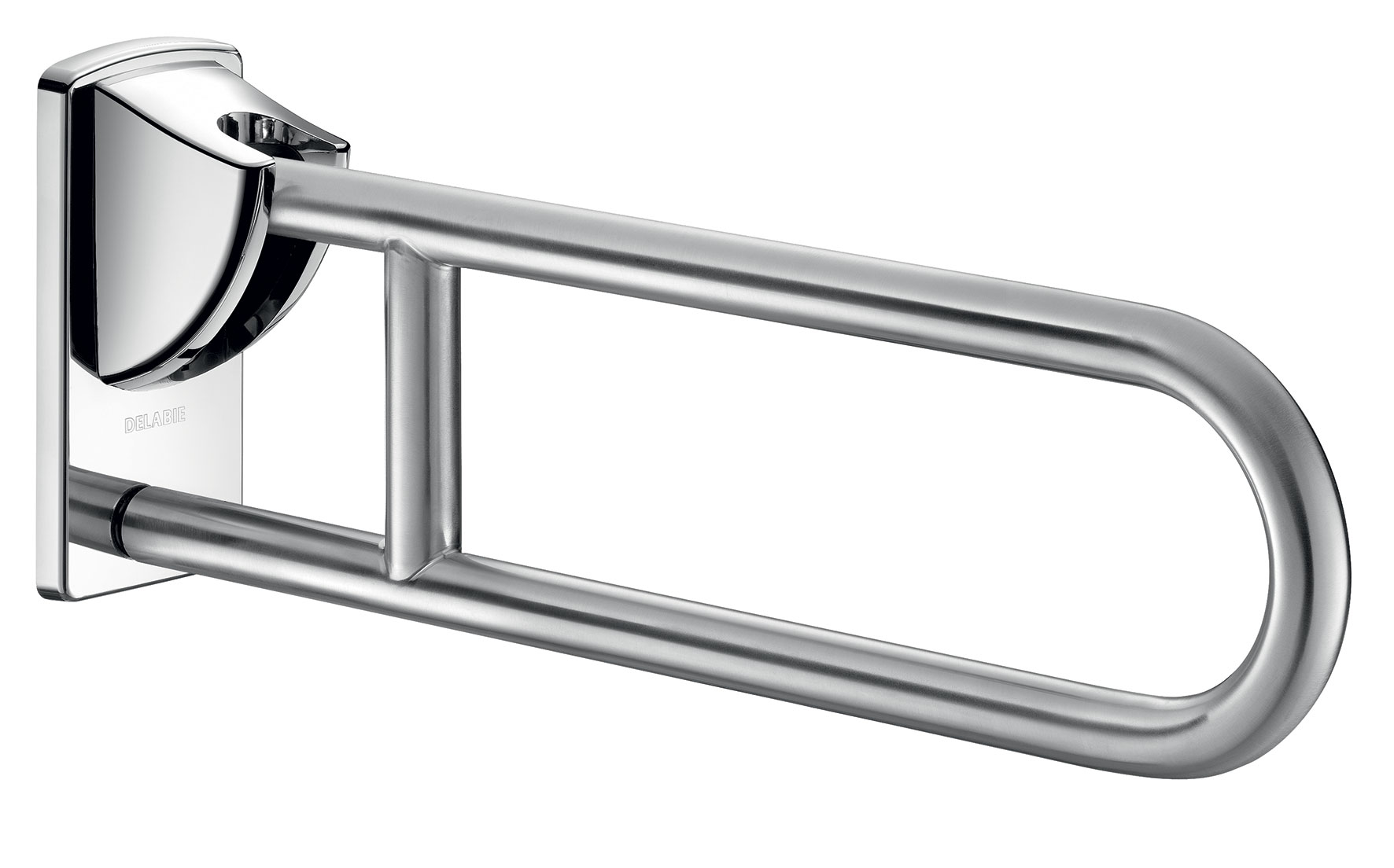

Stainless steel drop-down rail, satin, L. 650mm

Ref. 510160S
UltraSatin polished satin stainless steel
Stainless steel drop-down rail, satin, L. 650mm

Presentation

DESCRIPTION

Stainless steel drop-down rail, satin, L. 650mm

Ref. 510160S
Drop-down grab bar Ø 32mm, for people with reduced mobility.
Drop-down grab bar for WCs or showers.
Allows side access in the raised position.
In the lowered position use as a grab bar, for standing up and assisting movement.
Retained in upright position. Slowed down descent.
Drop-down grab bar made from bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, non-porous uniform surface for easy maintenance and hygiene.
Concealed fixings secured by a 4mm thick 304 stainless steel plate.
Supplied with stainless steel screws for concrete walls.
Dimensions: 650 x 230 x 105mm.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Nettoyage aisé

UltraSatin: smooth surface, easy to clean

Confort - Ergonomie - Déclenchement souple

Diameter adapted for an optimal grip

Characteristics

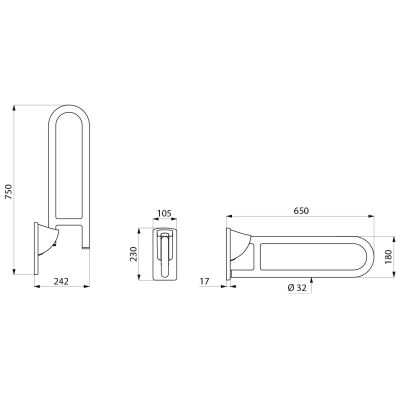

TECHNICAL CHARACTERISTICS

Stainless steel drop-down rail, satin, L. 650mm

Ref. 510160S
Height 230mm
Length 650mm
Width 105mm
Diameter 32mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Stainless steel drop-down rail, satin, L. 650mm

Ref. 510160S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

510160P Bright polished stainless steel UltraPolish - 650mm
510161P Bright polished stainless steel UltraPolish- Fixed model - 650mm
510161S Polished satin stainless steel UltraSatin - Fixed model - 650mm
510164P Bright polished stainless steel UltraPolish - 850mm
510164S Polished satin stainless steel UltraSatin - 850mm
