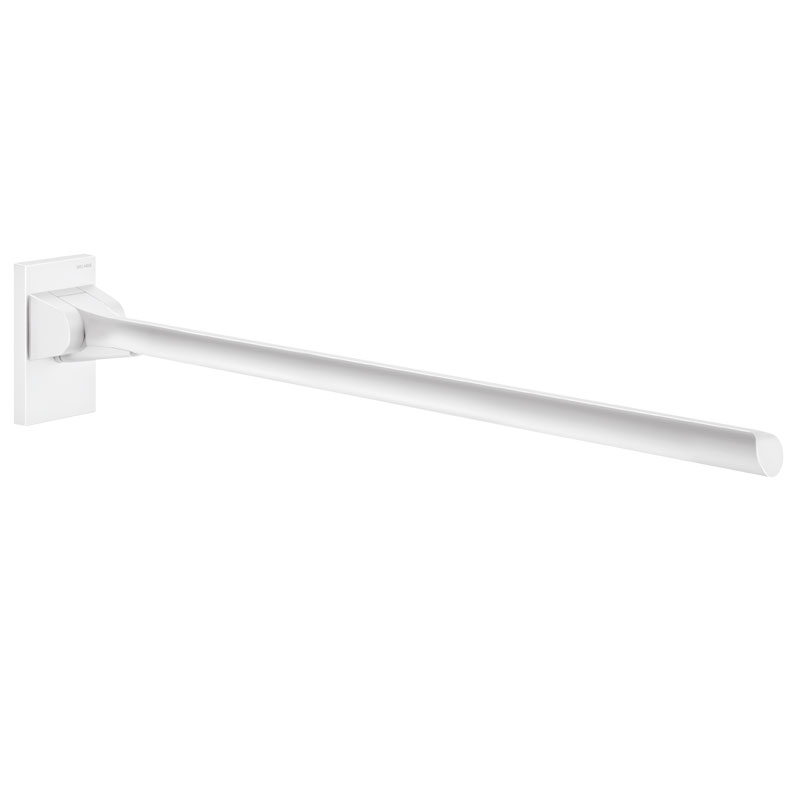

Be-Line® drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of grab bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail with slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with dark walls.
Anti-bacterial treatment: optimal protection against bacterial development.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 850 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Support rail for WCs with 30-year warranty.
CE marked.
Advantages
Innovative design suitable for all users
Removable: easy to unclip
Comfort: ergonomic flat face prevents rotation
Tested to over 200kg
Be-Line® drop-down support rail, L. 850mm, white
Ref. 511964W
Height
210mm, 920mm when raised
Length
850mm
Width
120mm
Diameter
Ø 42mm
Finish
Powder-coated matte white aluminium
Certificates
Warranty
Be-Line® drop-down support rail, L. 850mm, white
Ref.
511964W
To download one or several documents linked to this product, please select the type of file you require
Discover the Be-Line® drop-down rail, in the spirit of design for all
