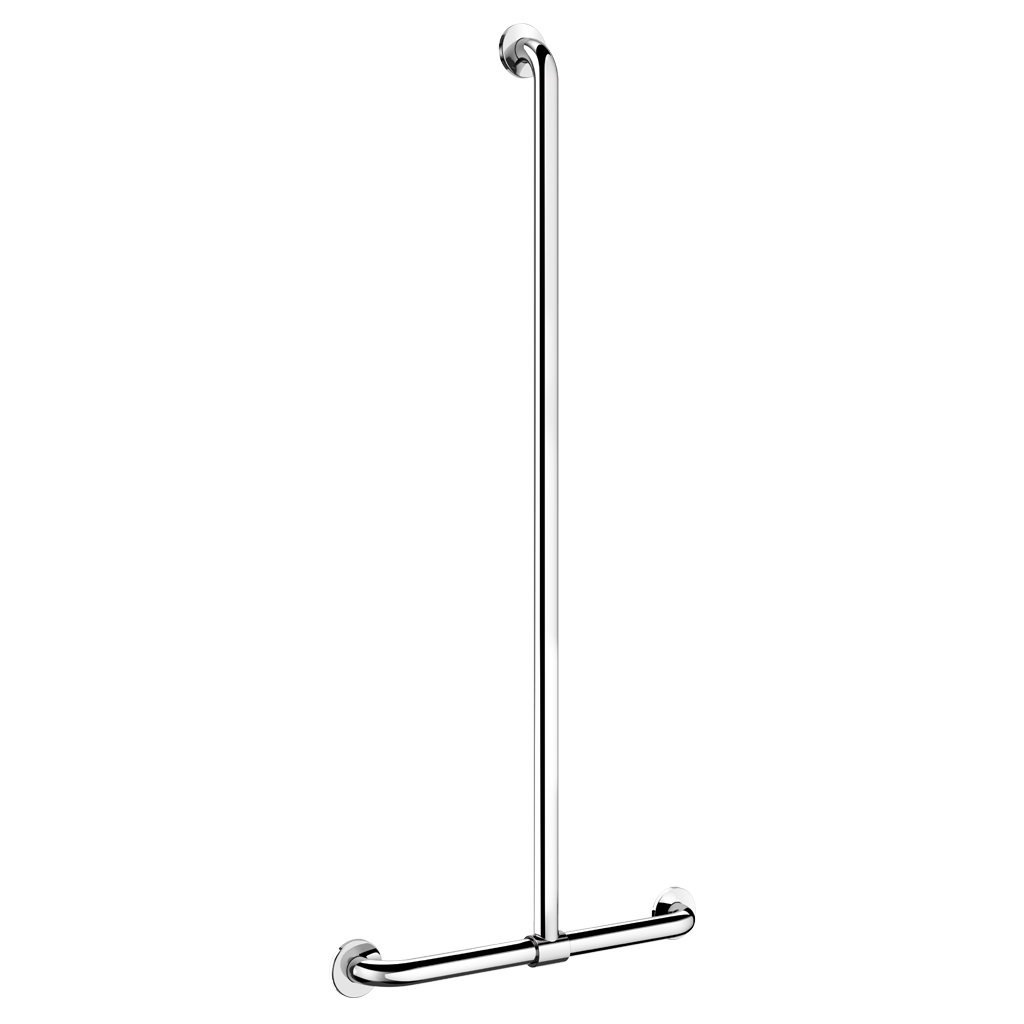

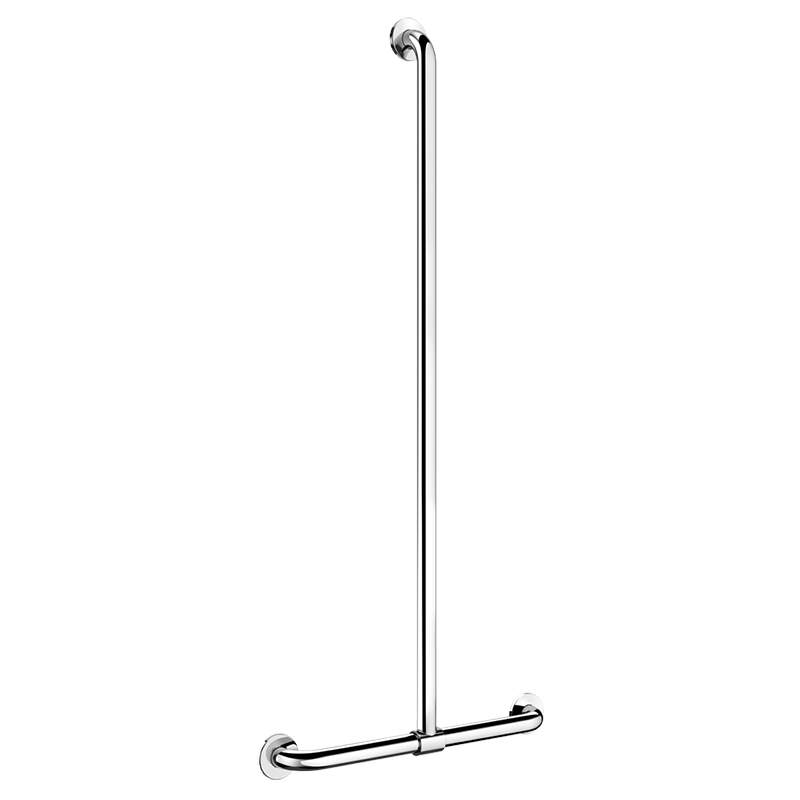

T-shaped stainless steel grab bar with sliding vertical bar, bright

Ref. 5441P
UltraPolish bright polished stainless steel
T-shaped stainless steel grab bar with sliding vertical bar, bright

Presentation

DESCRIPTION

T-shaped stainless steel grab bar with sliding vertical bar, bright

Ref. 5441P
T-shaped grab bar with sliding vertical bar Ø 32mm, for people with reduced mobility.
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Dimensions: 1,160 x 500mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings secured to wall by a 3-hole fixing plate, Ø 72mm.
Fixing and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

ADVANTAGES

Maintenance aisée - Installation aisée

Upright position can be adjusted

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: limits bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Characteristics

TECHNICAL CHARACTERISTICS

T-shaped stainless steel grab bar with sliding vertical bar, bright

Ref. 5441P

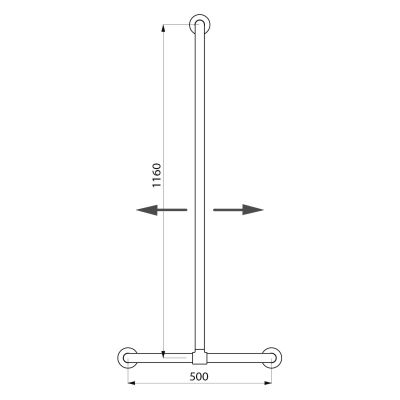

Height 1160mm
Length 500mm
Diameter Ø 32mm
Width to the wall 40mm
Finish UltraPolish bright polished 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

T-shaped stainless steel grab bar with sliding vertical bar, bright

Ref. 5441P

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5441S Polished satin stainless steel UltraSatin - With sliding vertical riser rail
5440P2 Bright polished stainless steel UltraPolish -Fixed vertical riser rail
5440S Polished satin stainless steel UltraSatin - With fixed vertical riser rail
