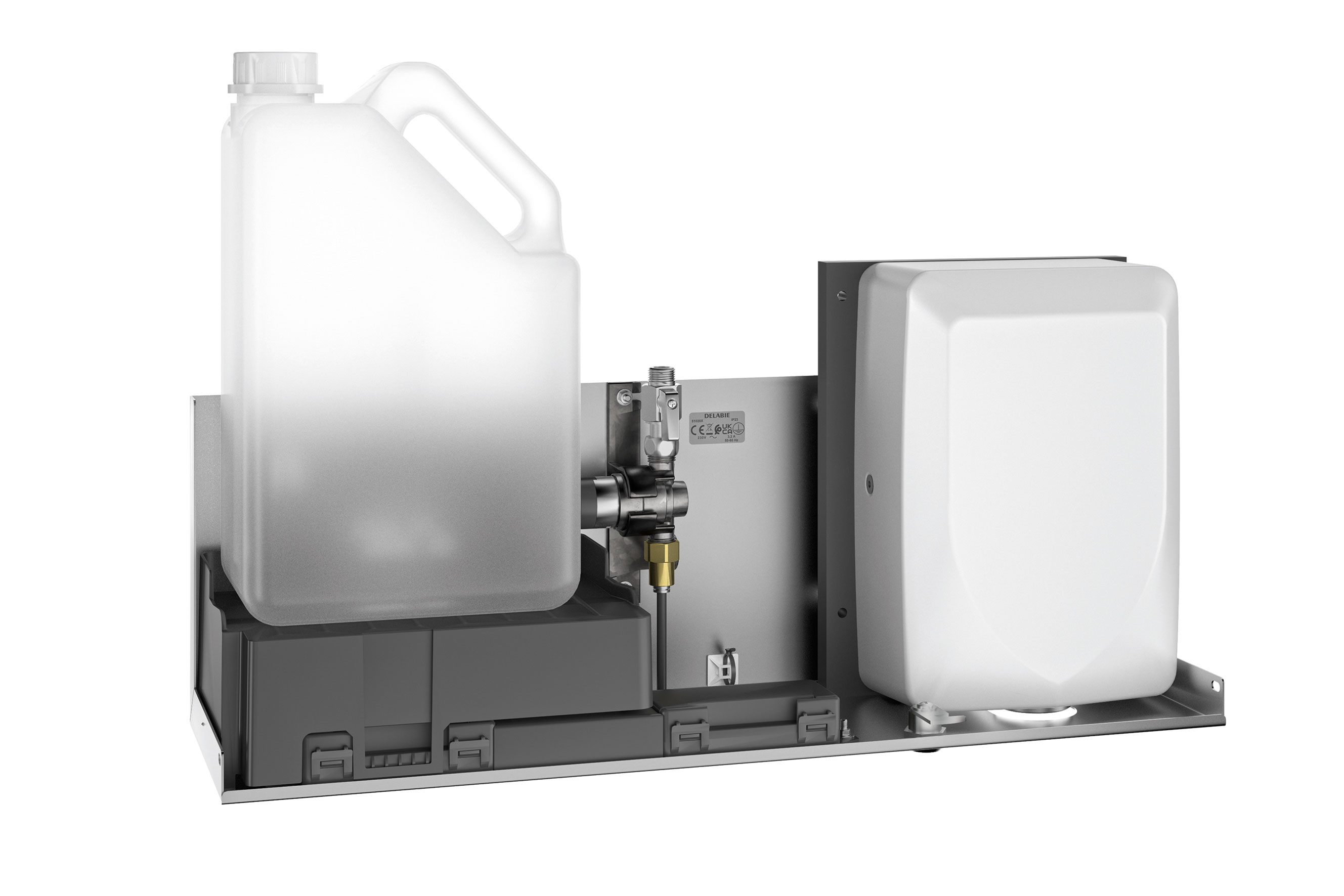

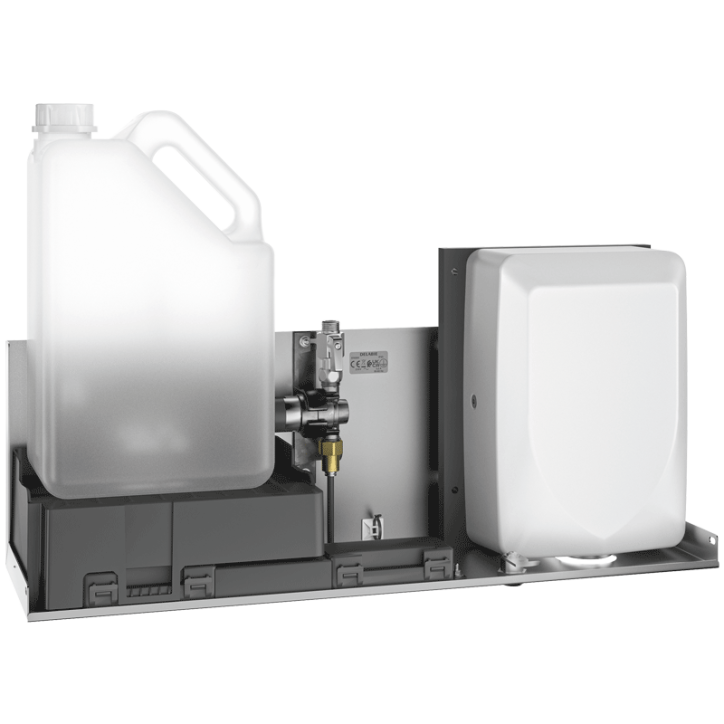

Unit with 3 functions for installation behind a mirror
Ref. 510203I
Unit with 3 functions: electronic soap dispenser, tap and hand dryer.
Touch-free for improved hygiene: soap dispenser, tap and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- Fitted into a cabinet. Fixings on the sides and the back. 304 stainless steel support, 1.2 mm thick.
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Water connection in M3/8"
- Supplied with stainless steel screws for concrete or reinforced wood.
Unit with 3 functions:
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Electronic basin tap*:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
- Adjustable sensor (±10°) for auto-detection.
Air-pulse hand dryer:
- High-speed.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Supplied with self-adhesive pictograms to indicate the location of the different functions on the mirror/cabinet: soap, water and air.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.

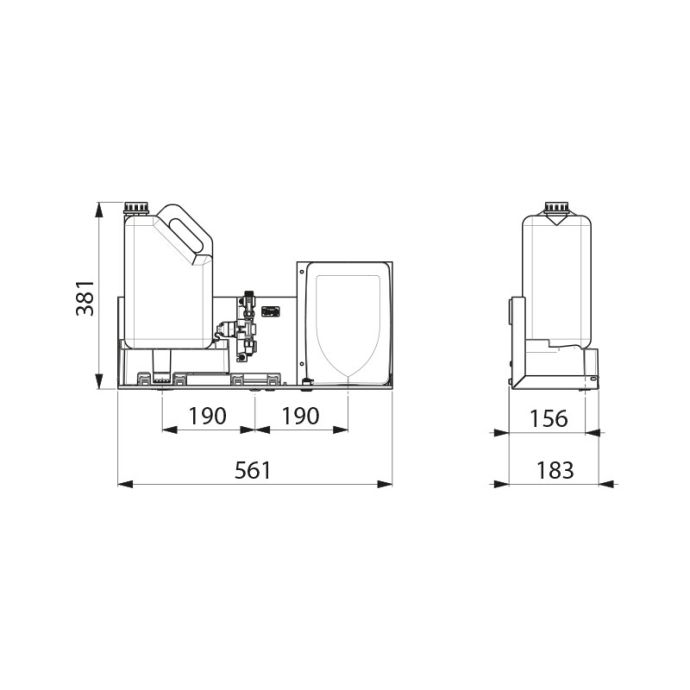

Dimensions: 561 x 183 x 381mm.
Weight: 6.1kg.

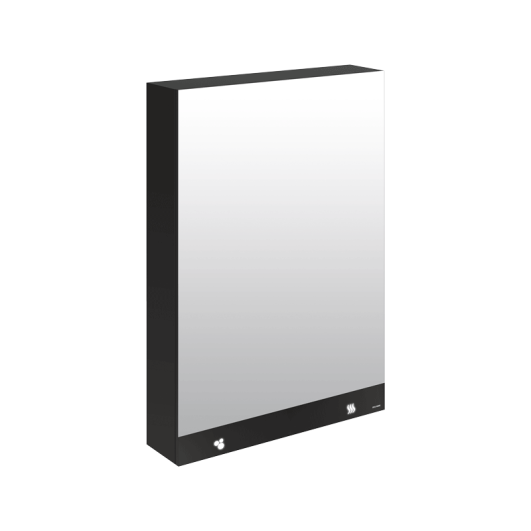

Mirror cabinet with 30-year warranty.
CE marked.
* We recommend a PREMIX mixer.
Advantages
3 functions
Easy installation into a cabinet
Hygiene: touch-free
One single electrical supply for all elements
Unit with 3 functions for installation behind a mirror
Ref. 510203I
Supply
Mains: 230V / 50-60Hz recessed
Connector
M3/8"
Technology
Electronic
Height
381mm
Depth
183mm
Width
561mm
Flow rate
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm
Thickness
1.2mm thick support
Finish
304 stainless steel support
Certificates
Warranty
Repairability
Unit with 3 functions for installation behind a mirror
Ref.
510203I
