2-function unit for installation behind a mirror

Ref. 510207I
Hand dryer and soap dispenser
2-function unit for installation behind a mirror

Presentation

DESCRIPTION

2-function unit for installation behind a mirror

Ref. 510207I

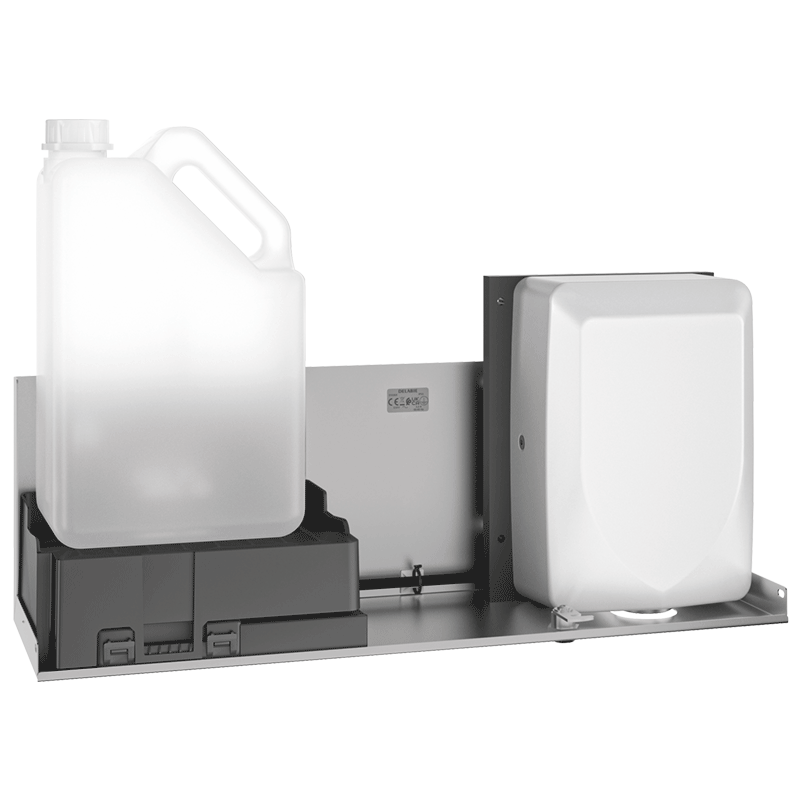

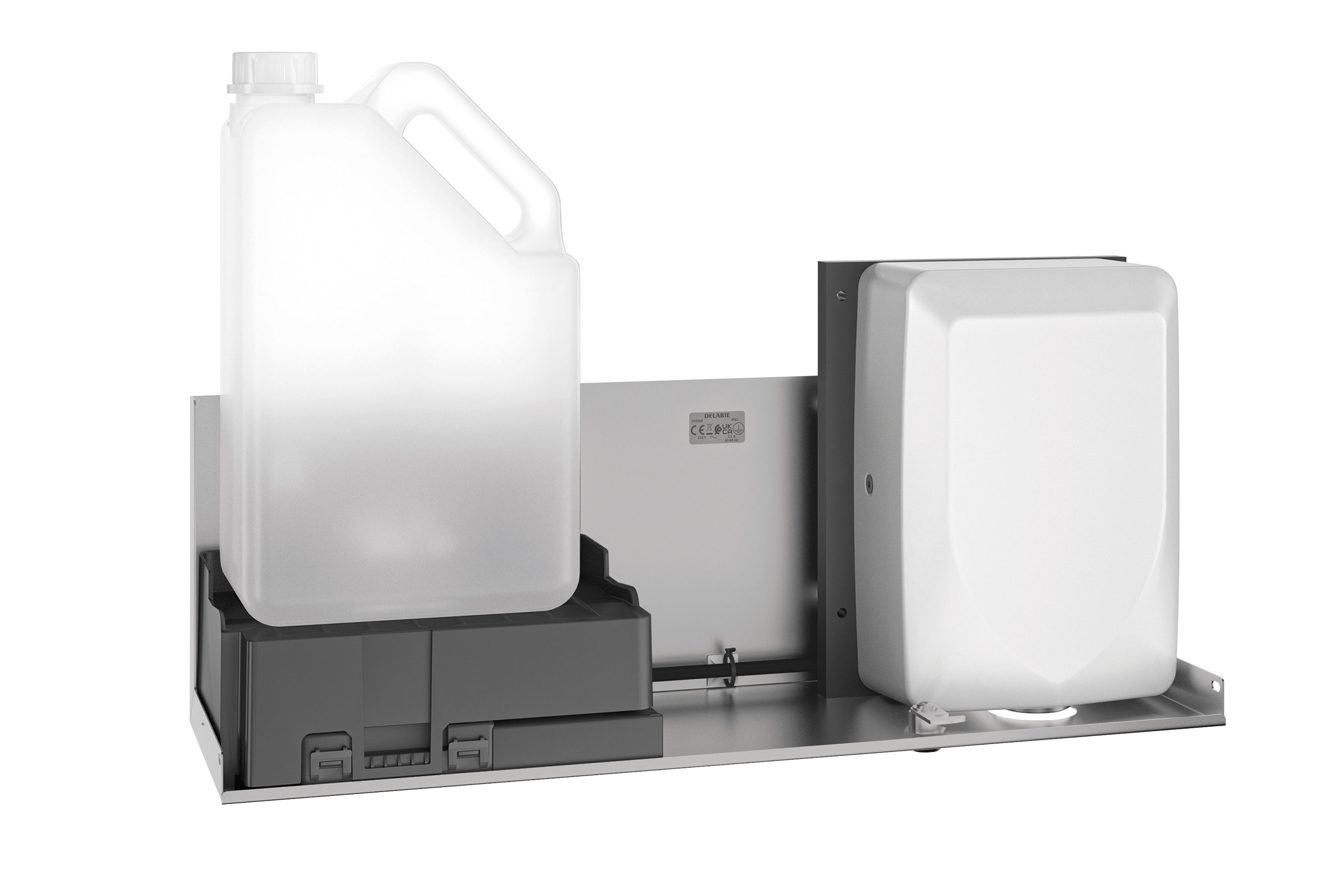

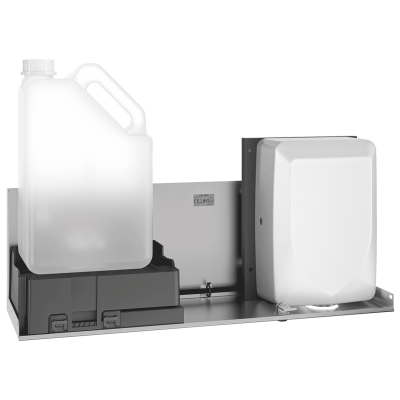

2-function unit: electronic soap dispenser and air pulse hand dryer.
• Quick and easy to install in a cabinet or behind a mirror.
• Fixings at the back and sides.
• 304 stainless steel support, 1.2 mm thick.
• Supplied with self-adhesive pictograms to indicate the location of the different functions on the mirror/cabinet: soap and air.
• Vandal-resistant model with standard DELABIE key.
• 30-year warranty (3-year warranty for the hand dryer).
• CE marked.

ADVANTAGES

Universel

2 functions

Maintenance aisée - Installation aisée

Easy installation into a cabinet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: touch-free

Characteristics

TECHNICAL CHARACTERISTICS

2-function unit for installation behind a mirror

Ref. 510207I
Supply 230/6 V mains supply
Technology Electronic

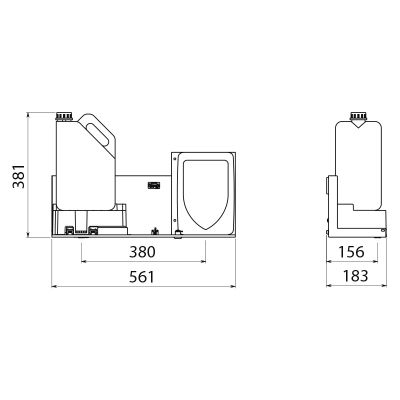

Height 381mm
Depth 183mm
Width 561mm
Thickness 1.2mm thick support
Finish 304 stainless steel support
Warranty 30-Year
