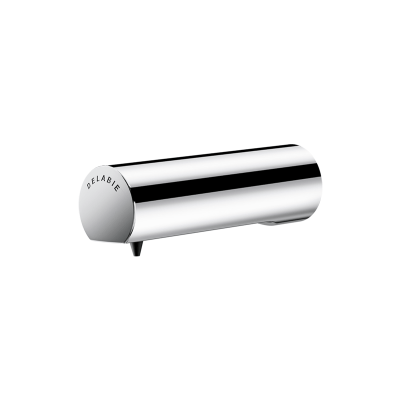

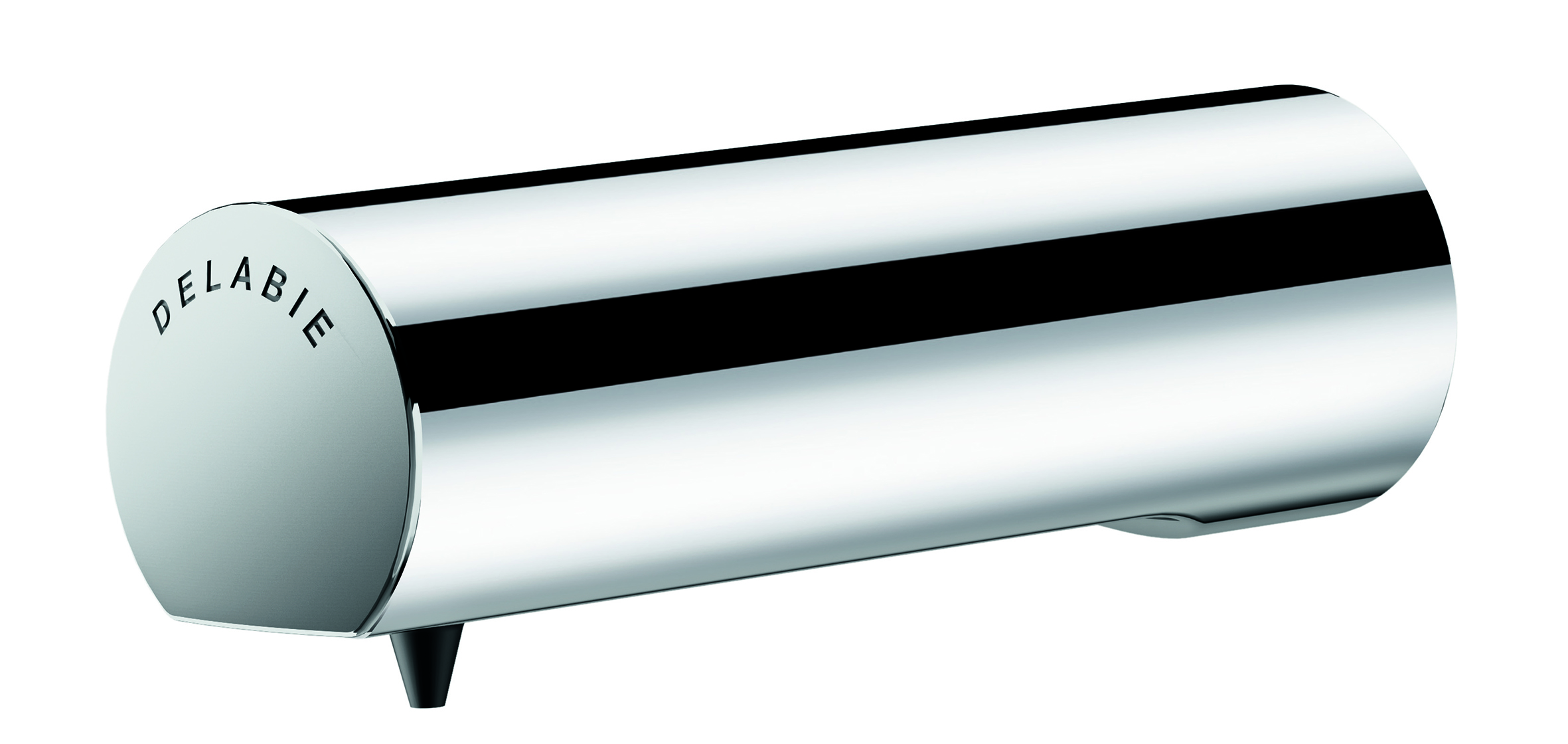

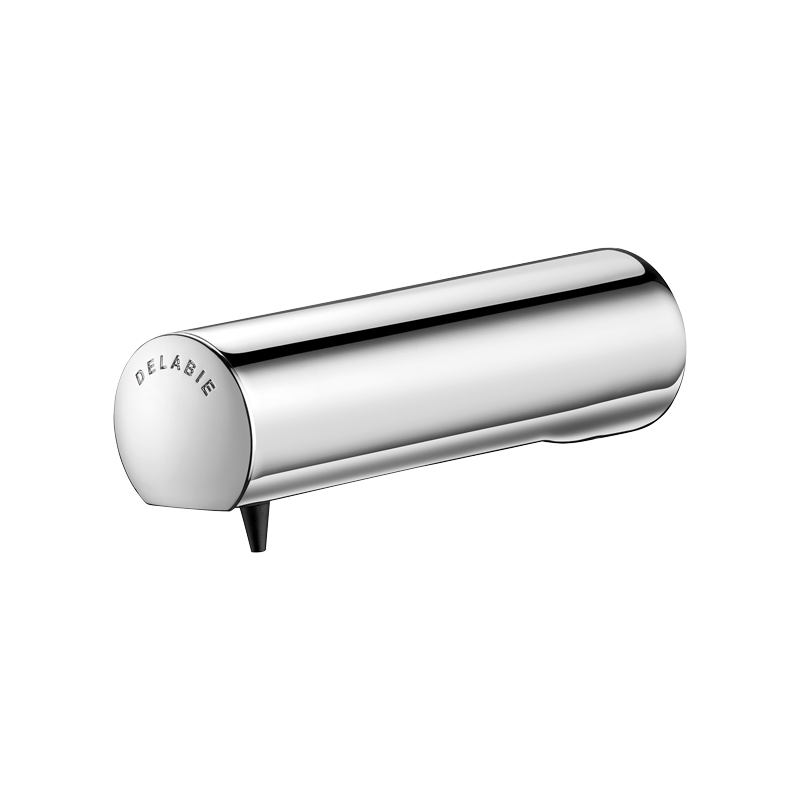

TEMPOMATIC 4 electronic soap dispenser
Ref. 512171P
Liquid soap, foam soap or hydroalcoholic gel dispenser
Liquid soap, foam soap or hydroalcoholic gel dispenser
DESCRIPTION
TEMPOMATIC 4 electronic soap dispenser
Ref. 512171PWall-mounted electronic soap dispenser.
Liquid soap, foam soap or hydroalcoholic gel dispenser.
Vandal-resistant model for cross wall up to 110mm.
No manual contact: infrared cell detects hands automatically.
Chrome-plated 304 stainless steel spout.
No waste dose dispenser.
Separate electronic unit and removable tank for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 135mm.
Supplied with flexible tube 1.20m for remote tanks (tank not supplied).
30-year warranty.
CE marked.
Liquid soap, foam soap or hydroalcoholic gel dispenser.
Vandal-resistant model for cross wall up to 110mm.
No manual contact: infrared cell detects hands automatically.
Chrome-plated 304 stainless steel spout.
No waste dose dispenser.
Separate electronic unit and removable tank for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 135mm.
Supplied with flexible tube 1.20m for remote tanks (tank not supplied).
30-year warranty.
CE marked.
ADVANTAGES

Total hygiene: no manual contact

Comfort: automatic soap dispenser

No waste dose dispenser

Liquid or foam soap or hydroalcoholic gel

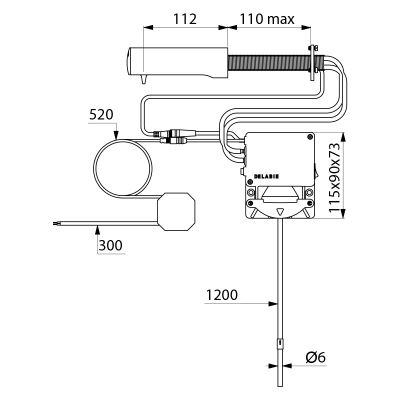

TECHNICAL CHARACTERISTICS
TEMPOMATIC 4 electronic soap dispenser
Ref. 512171P| Supply | 230/6 V mains supply |
| Connector | 1/2" |
| Technology | Infrared sensor |
| Height | 115mm (electronic unit) |
| Length | 115mm |
| Spout length | 135mm |
| Thickness | Max 110mm |
| Finish | Chrome-plated 304 stainless steel |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC 4 electronic soap dispenser
Ref. 512171P
| 1. | 222429 |
|
Service key |
| 2. | 512BC |
|
Electronic control unit |
| 3. | 490240 |
|
Power supply |
VARIANTS
| 512041P | Mains supply - With 1L tank | ||
|---|---|---|---|
| 512141P | Mains supply - With 1.20m flexible tube for remote tank | ||
| 512046P | Battery-operated - With 1L tank | ||
| 512146P | Battery-operated - With 1.20m flexible tube for remote tank |
VARIANTS
| 512041P | Mains supply - With 1L tank | ||
|---|---|---|---|
| 512141P | Mains supply - With 1.20m flexible tube for remote tank | ||
| 512046P | Battery-operated - With 1L tank | ||
| 512146P | Battery-operated - With 1.20m flexible tube for remote tank |
