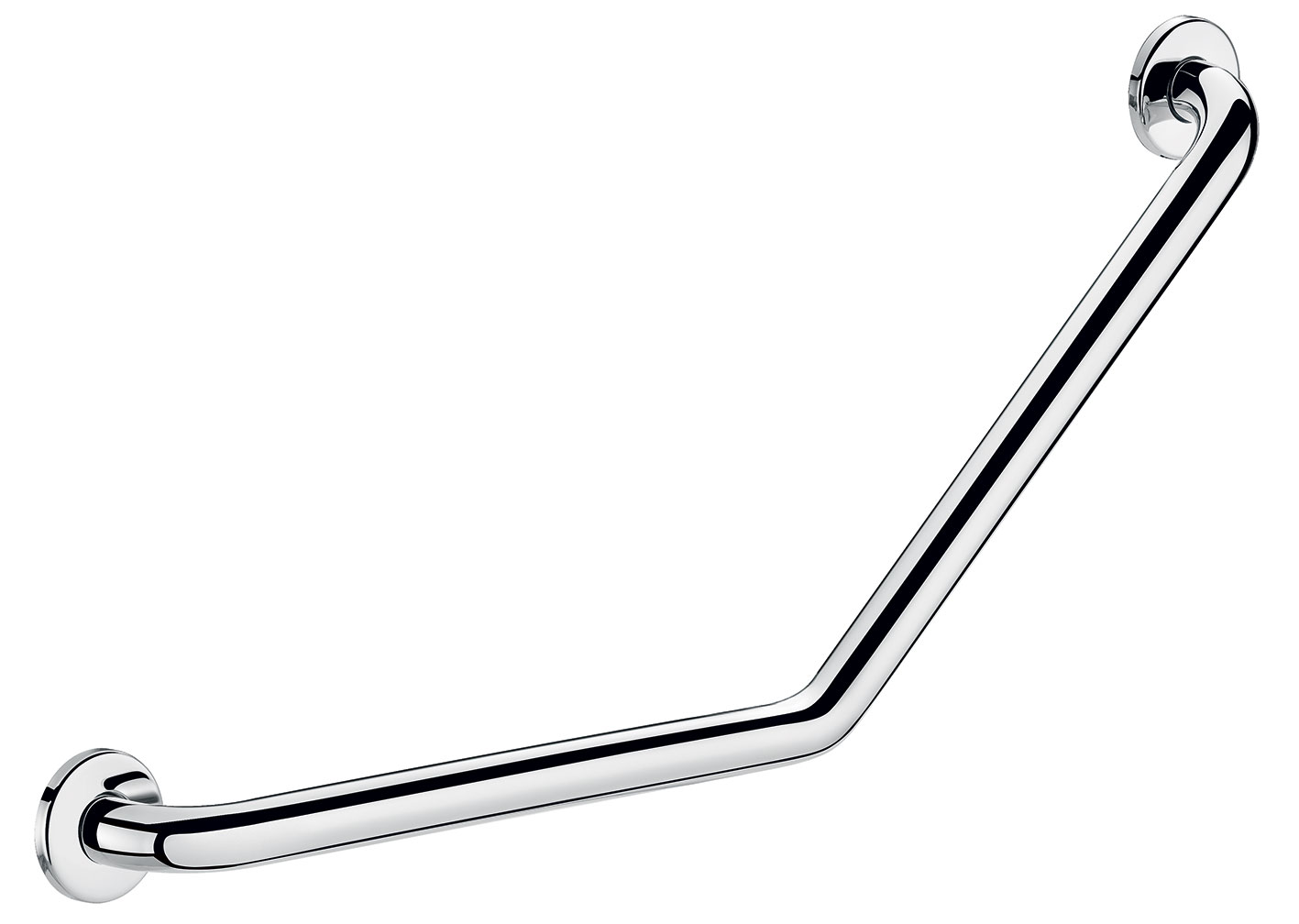

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5081P2
UltraPolish bright polished stainless steel, 2 fixing points
Angled stainless steel grab bar 135°, bright, 400 x 400mm

Presentation

DESCRIPTION

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5081P2
Angled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
10 year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraPolish: smooth surface, easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5081P2
Height 400mm
Length 400mm
Diameter 32mm
Width to the wall 40mm
Finish UltraPolish 304 stainless steel, bright polished
Certificates Logo CE Logo PZH
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5081P2

To download one or several documents linked to this product, please select the type of file you require :

Standards and regulations for disabled toilets
Standards and regulations for disabled toilets
