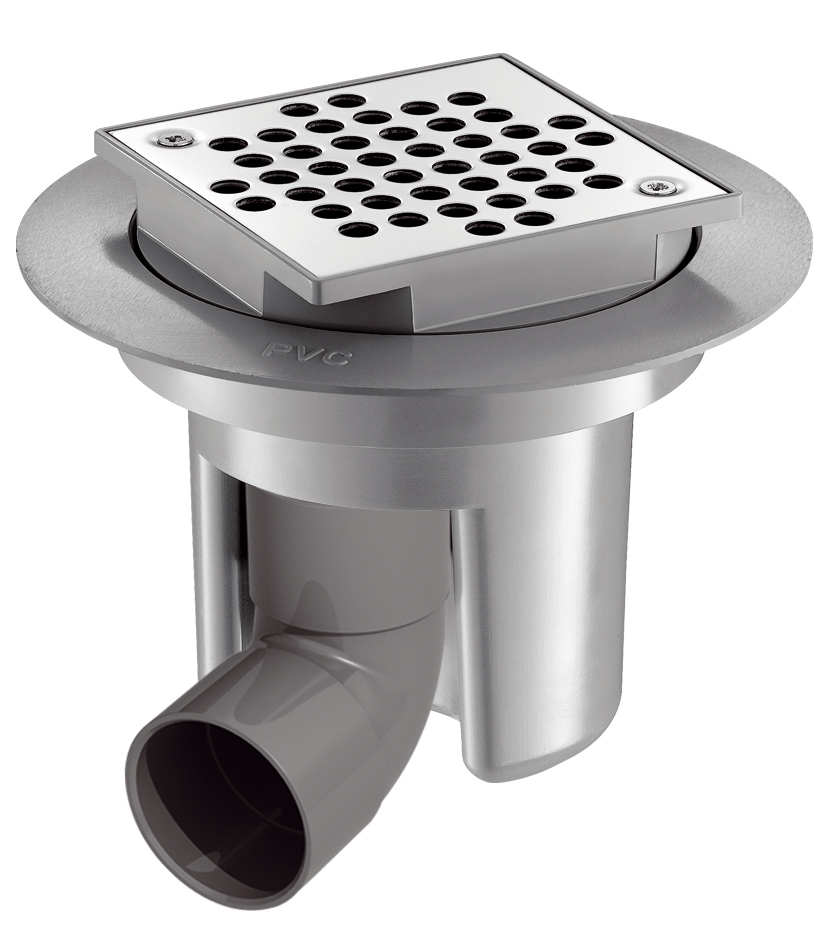

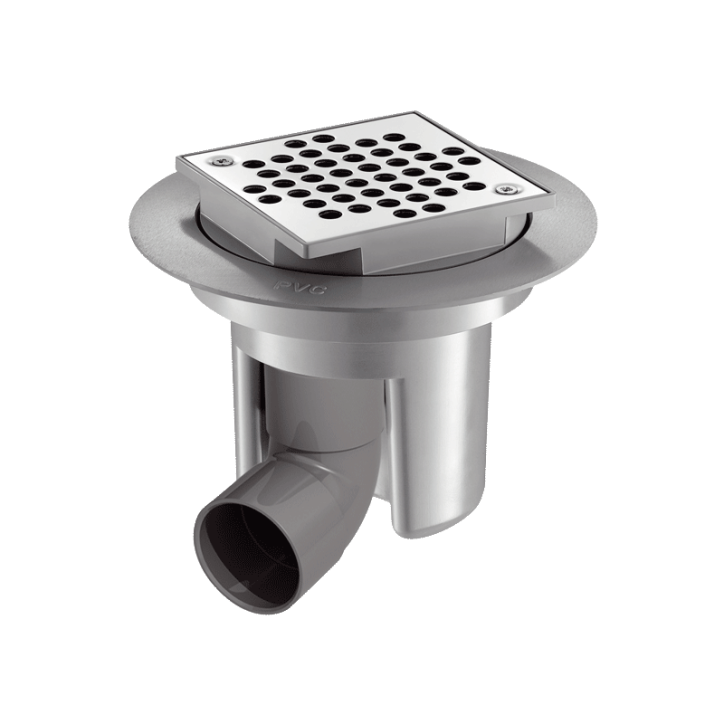

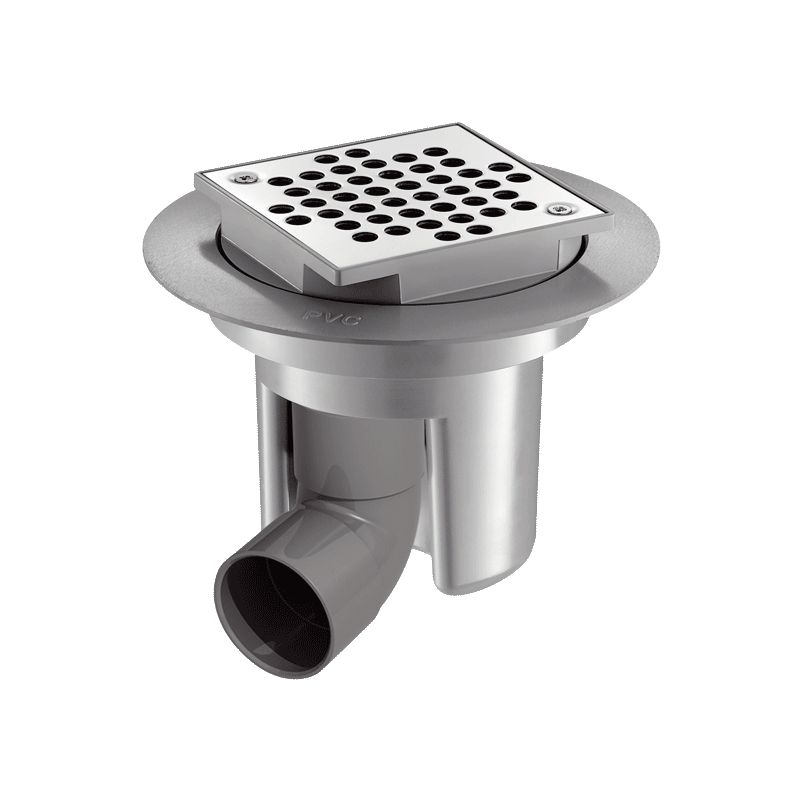

Adjustable height floor trap

Ref. 682001UK

For tiles or concrete floors

2 variants

682001 - Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

682001DE - Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

Adjustable height floor trap

Ref. 682001UK

Floor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
100 x 100mm bright polished stainless steel grid.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.

Advantages

Trap adapted to floor type, adjustable height

Plunger with handle, body free of impurities

Tamperproof stainless steel grid

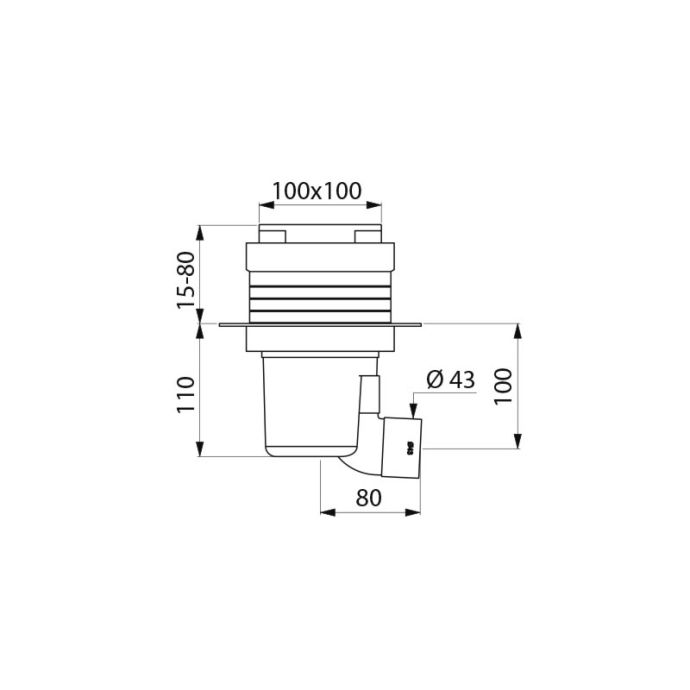

Adjustable height floor trap

Ref. 682001UK

Height 190mm max

Length 100mm

Width 100mm

Flow rate 36 lpm

Warranty
