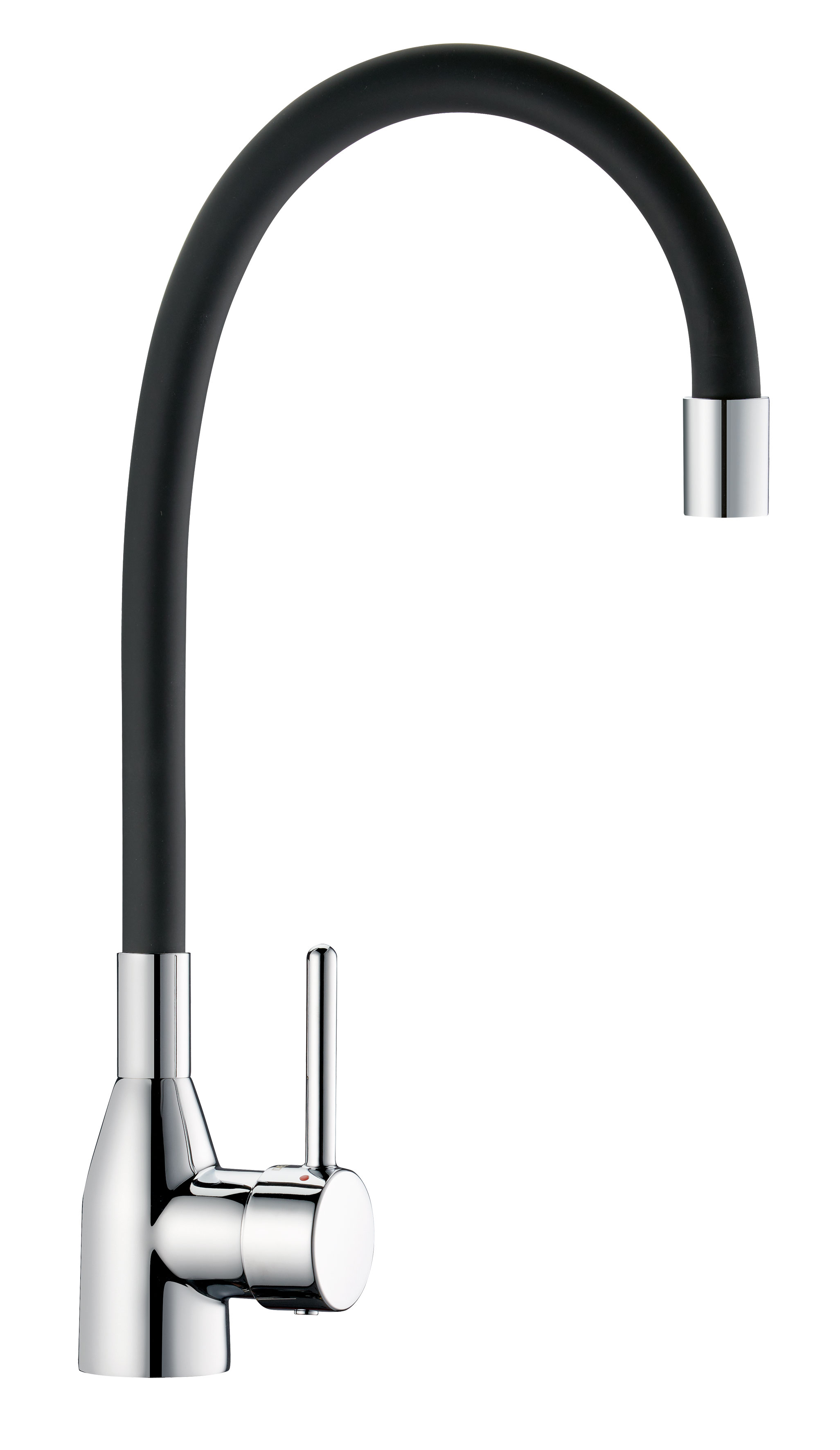

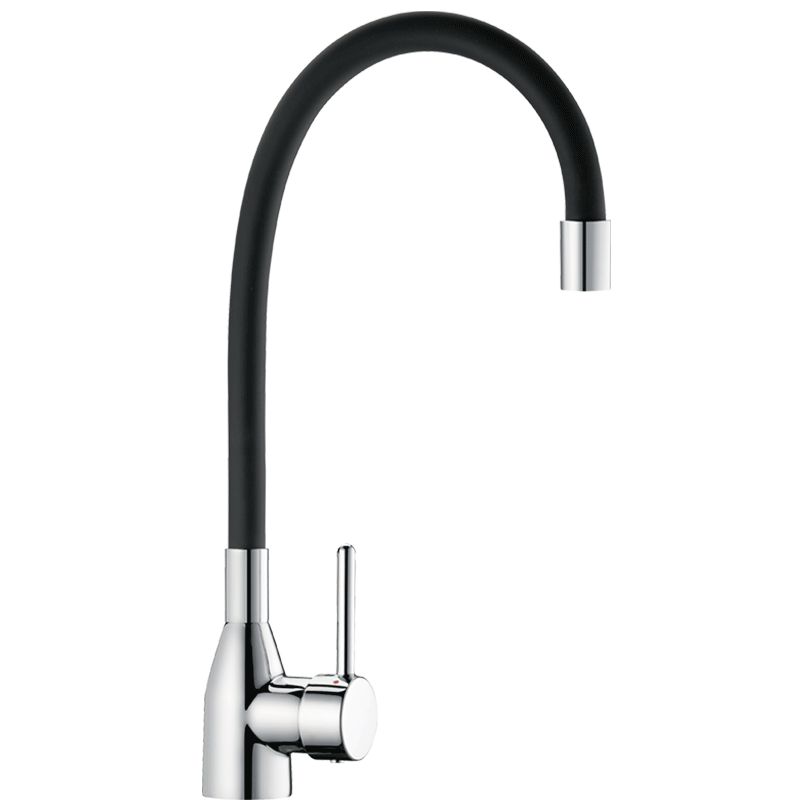

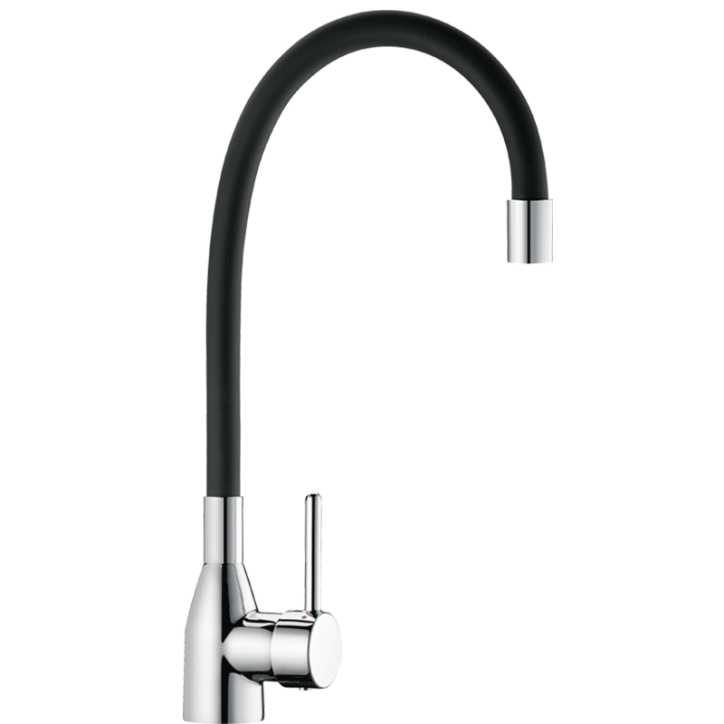

Single hole deck-mounted mixer

Ref. 2526T2
Mechanical mixer - flexible has no retainer
Single hole deck-mounted mixer

Presentation

DESCRIPTION

Single hole deck-mounted mixer

Ref. 2526T2
Single hole deck-mounted mixer, flexible has no retainer, flexible H. 535mm maximum.
Mechanical mixer with flexible swivelling hand spray with smooth interior.
Optimised spout curve for easy access to the control lever: 379mm.
Ø 35mm ceramic cartridge.
Flow rate 9 lpm at 3 bar.
Slimline control lever.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Reinforced fixings.
Mixer suitable for intensive use in professional kitchens.
Mixer with 30-year warranty.

ADVANTAGES

Endurance - Fiabilité

Reliable: mixer suitable for intensive use

Anti-vandalisme

Durable: mixer body made from chrome-plated brass

Confort - Ergonomie - Déclenchement souple

User comfort: swivelling spout

Confort - Ergonomie - Déclenchement souple

Ergonomic: slimline lever is easy to use

Characteristics

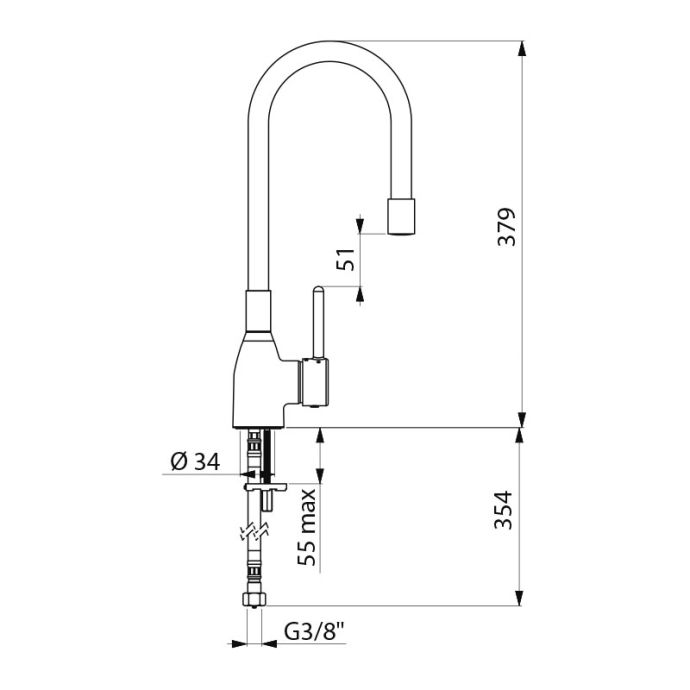

TECHNICAL CHARACTERISTICS

Single hole deck-mounted mixer

Ref. 2526T2
Connector 3/8"
Height 379mm
Spout length 535mm max.
Flow rate 9 lpm
Certificates ACS Belgaqua
Warranty 30-Year
Repairability
Single hole deck-mounted mixer
Ref. 2526T2

Downloads

DOWNLOADS

Single hole deck-mounted mixer

Ref. 2526T2

To download one or several documents linked to this product, please select the type of file you require :

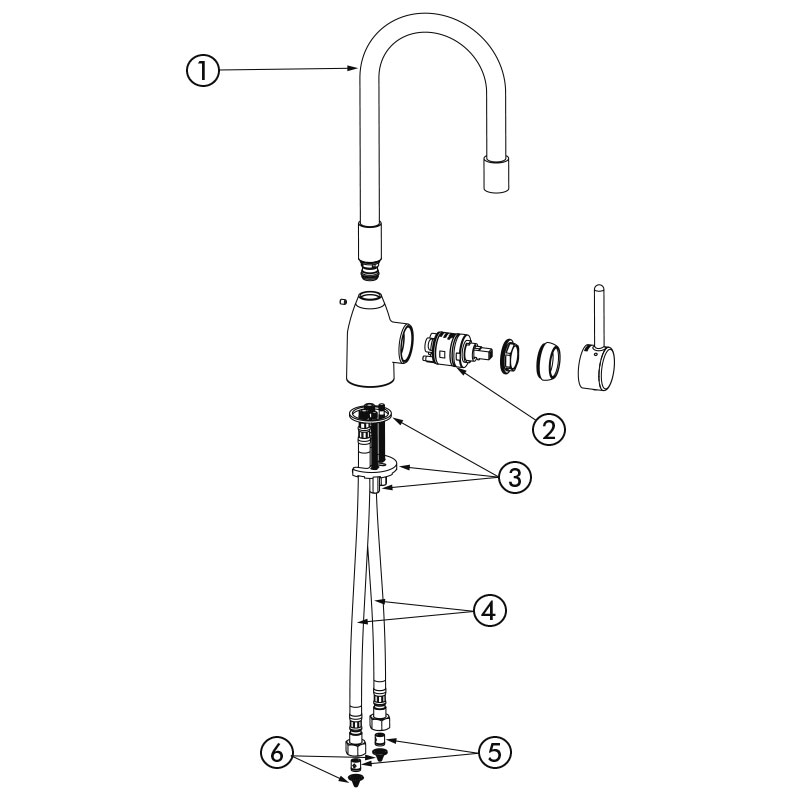

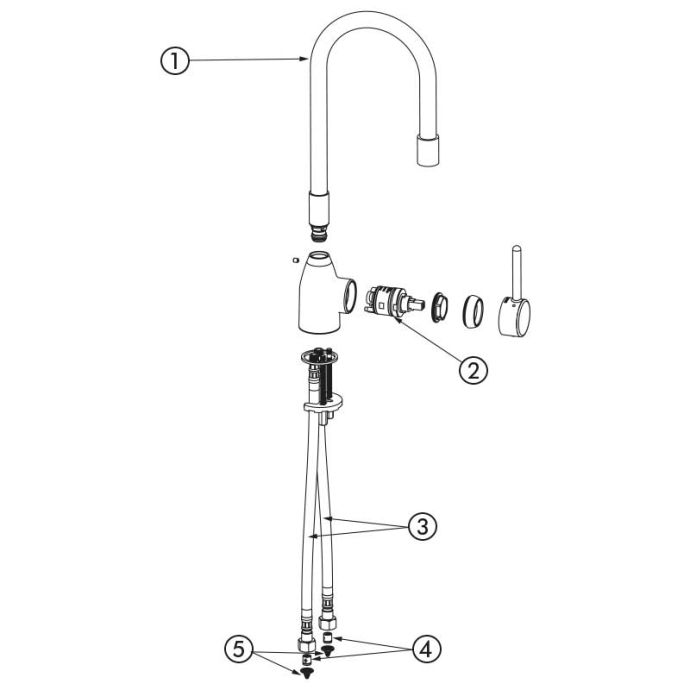

Spare parts

SPARE PARTS

Single hole deck-mounted mixer

Ref. 2526T2
1. 9632526
Self-supporting spout
2. NS262
Ø35mm ceramic cartridge
3. 2510SES
Locking kit
4. FLEX795
Stainless steel flexibles F3/8"
5. 900010
Non-return valve
6. 60438.10P
Conical filter
