Ref. 379DER
Mains supply
5 variants
379ENC -
Recessed - Spout L.200mm
379ENC15 -
Recessed - Spout L.200mm - Ø15mm compression fittings
379DER15 -
For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings
379D13 -
For walls from 1 to 190mm - Spout L. 135mm
379D1315 -
For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings

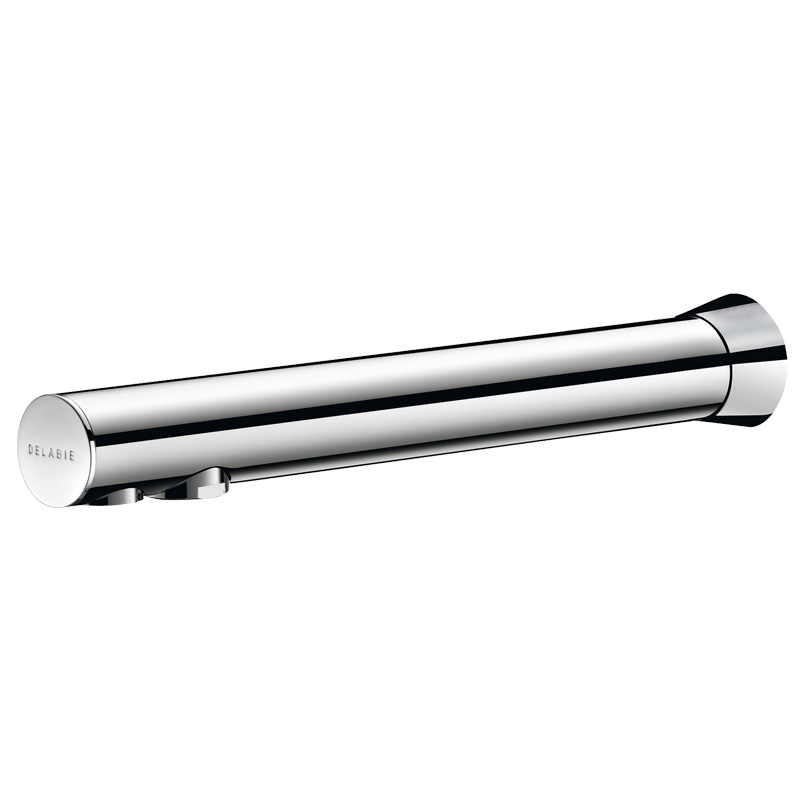

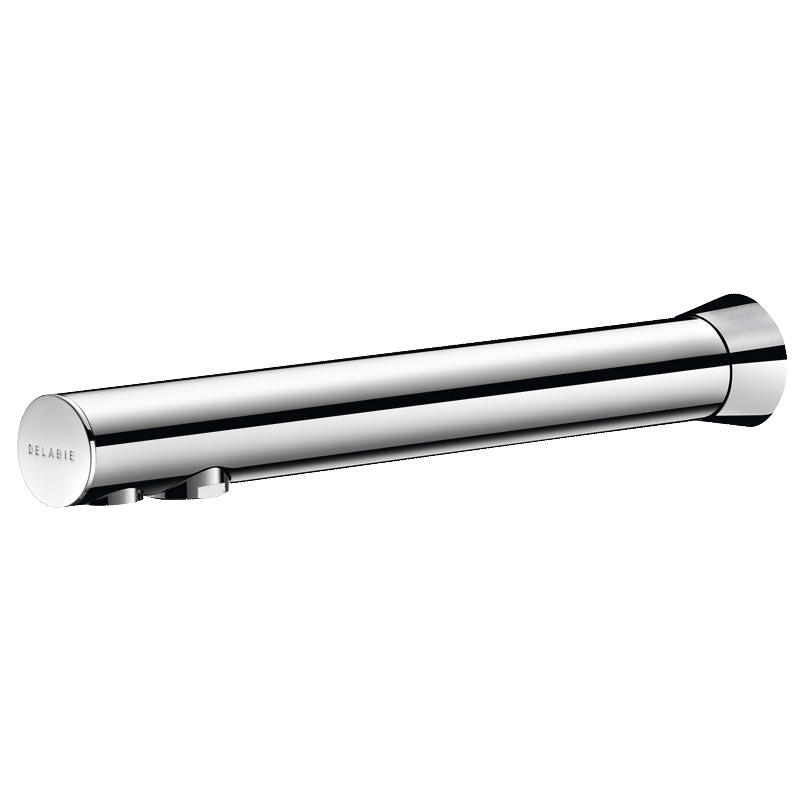

BINOPTIC electronic tap
Ref. 379DER
Electronic basin tap for cross wall installation.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.

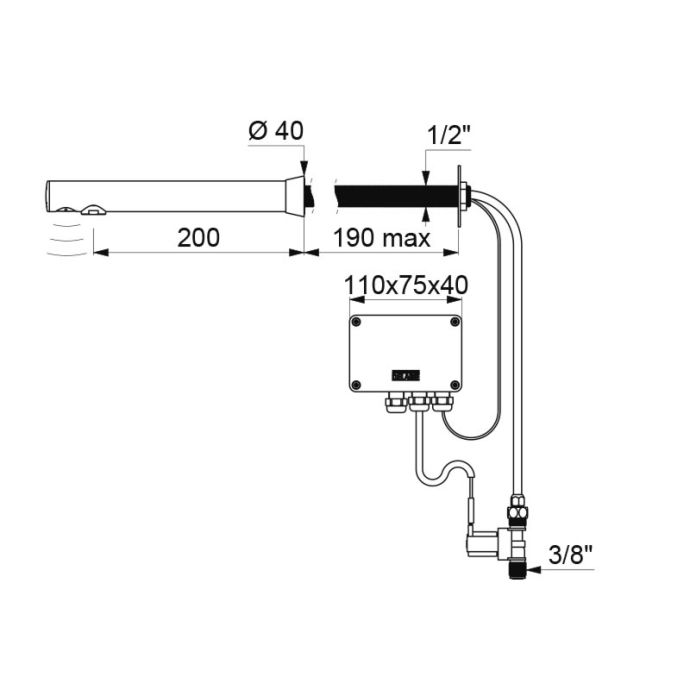

Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Cable for sensor L. 120mm, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.
Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Cable for sensor L. 120mm, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC electronic tap
Ref. 379DER
Supply
230/12V mains supply
Connector M3/8"
Technology Electronic
Spout length 205mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic
Spout length 205mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
BINOPTIC electronic tap
Ref. 379DER
To download one or several documents linked to this product, please select the type of file you require
BINOPTIC electronic tap
Ref. 379DER
Over 90% water savings with the BINOPTIC
