DESCRIPTION

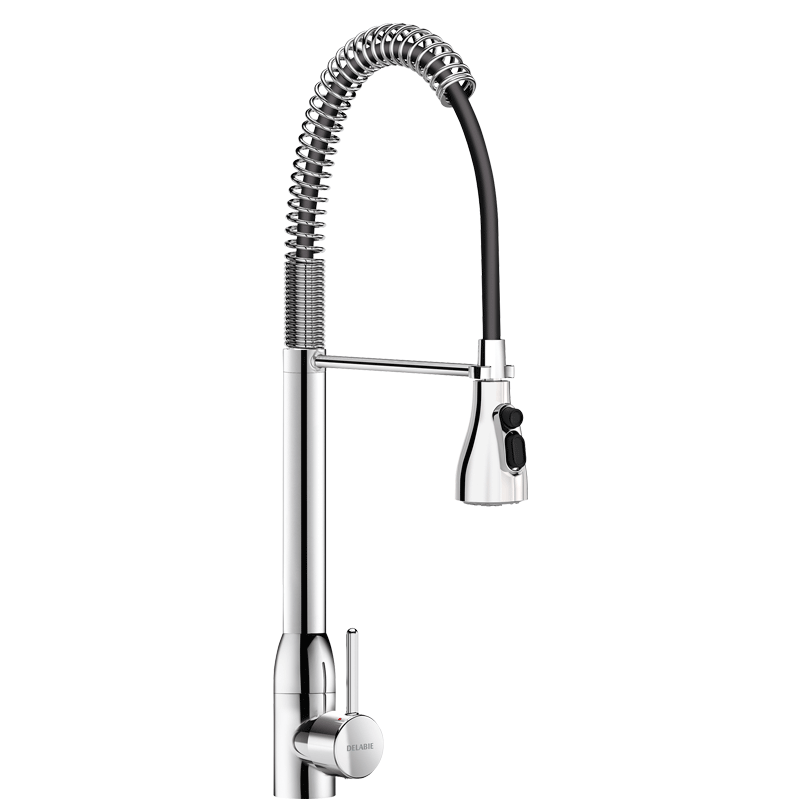

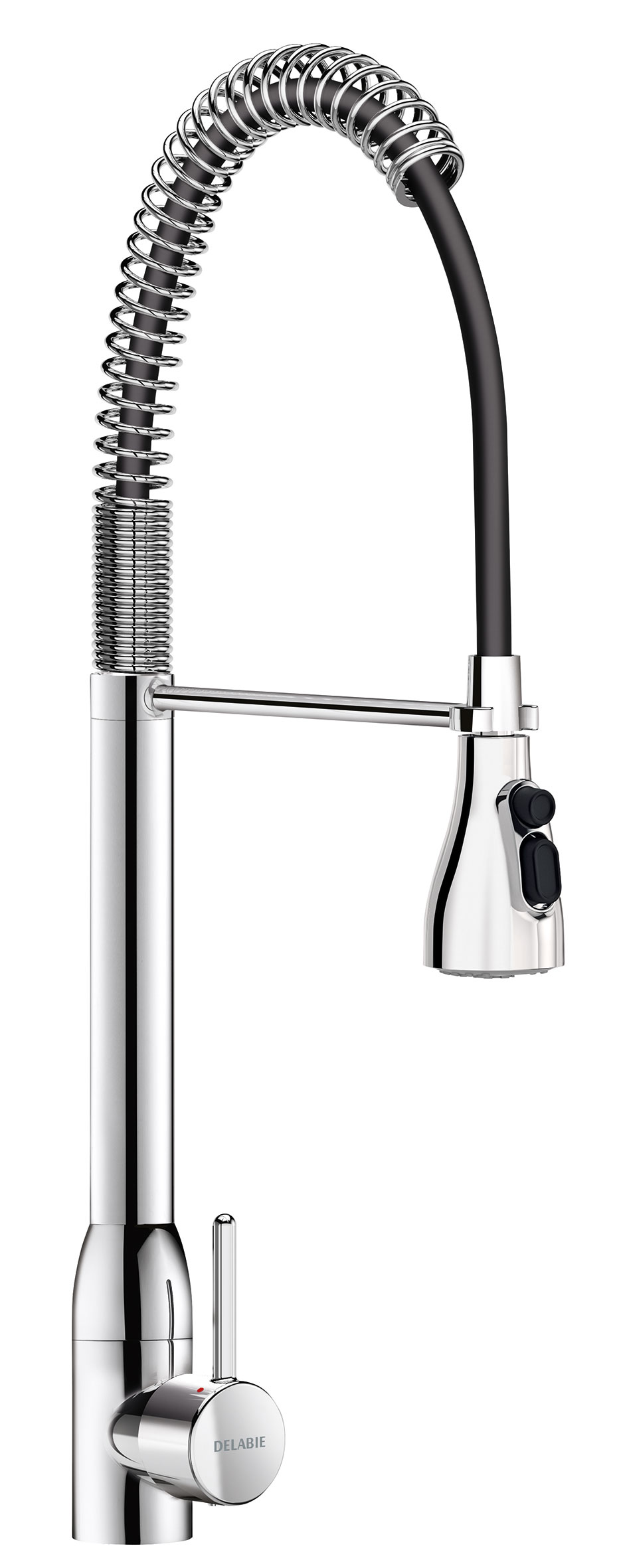

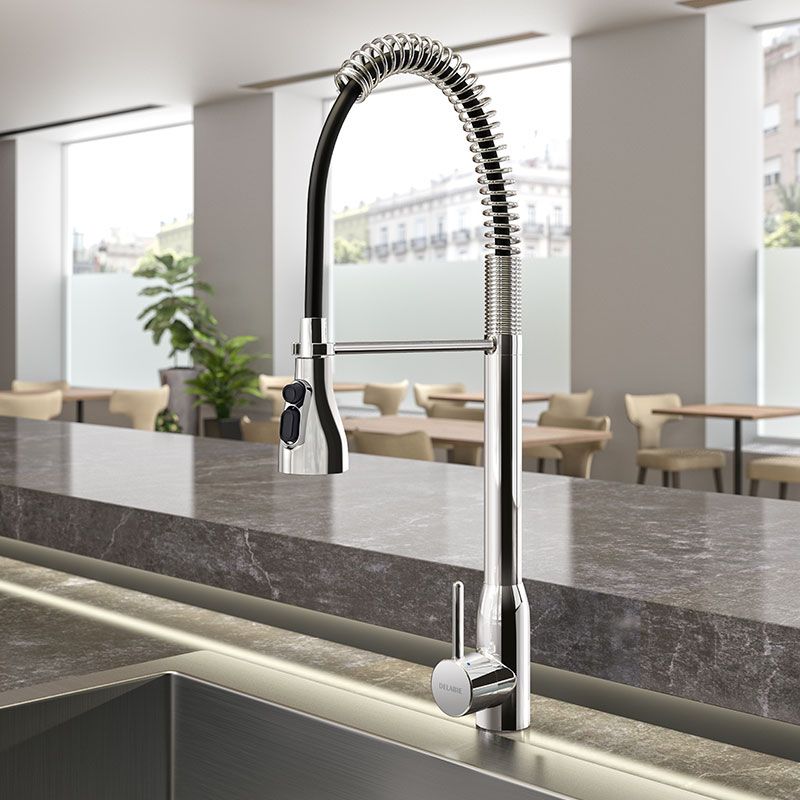

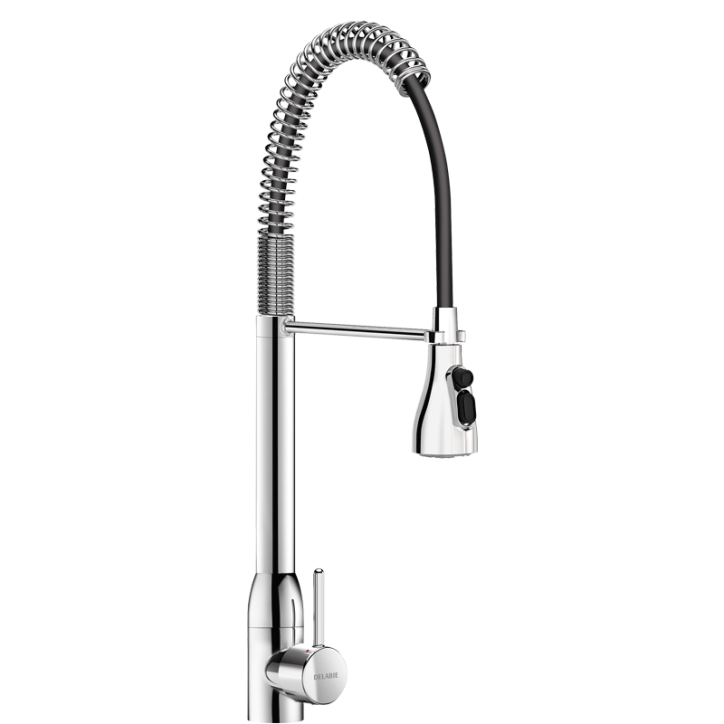

Low pre-rinse set, single hole with a mixer
Ref. 5526Pre-rinse set with column and swivelling support.
Deck-mounted single hole mixer with slimline lever.
Suitable for intensive use in professional kitchens.
Scale-resistant spray head with adjustable spray options: laminar flow, rain effect and blade.
Flow rate: 7 lpm at 3 bar
Reinforced food-grade black flexible hose L. 0.5m.
3/4" stainless steel column.
PEX flexibles F3/8" with filters and non-return valves.
Stainless steel spring guide.
Pre-rinse set with 30-year warranty.
Deck-mounted single hole mixer with slimline lever.
Suitable for intensive use in professional kitchens.
Scale-resistant spray head with adjustable spray options: laminar flow, rain effect and blade.
Flow rate: 7 lpm at 3 bar
Reinforced food-grade black flexible hose L. 0.5m.
3/4" stainless steel column.
PEX flexibles F3/8" with filters and non-return valves.
Stainless steel spring guide.
Pre-rinse set with 30-year warranty.
ADVANTAGES
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygiene: PVC flexible, scale-resistant spring
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: 3 spray options
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Anti-torsion rotating nut and PVC sheath
TECHNICAL CHARACTERISTICS
Low pre-rinse set, single hole with a mixer

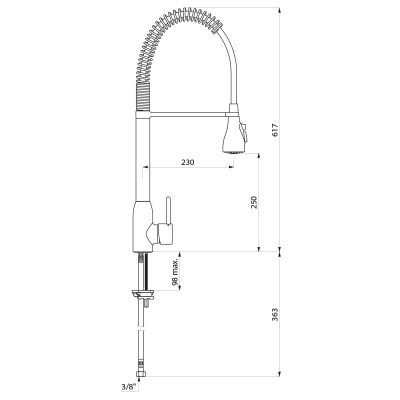

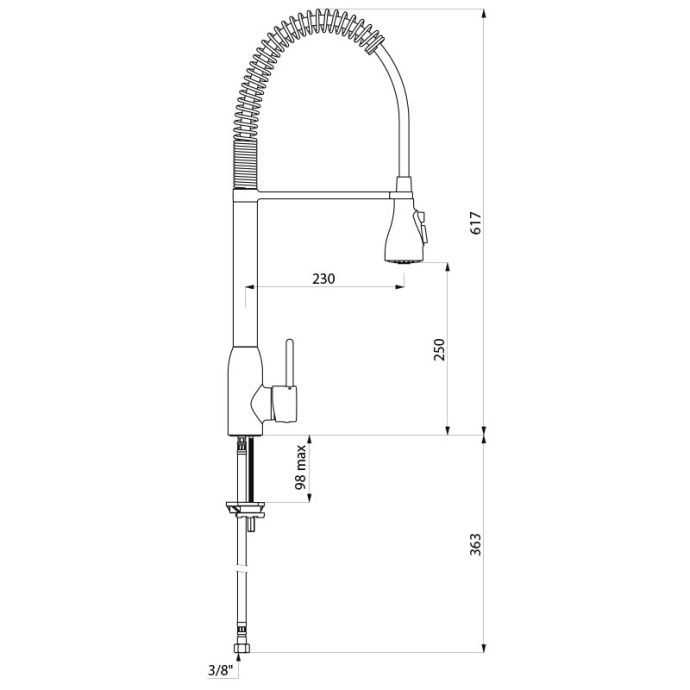

Ref. 5526Connector | 3/8" |
Height | 617mm |
Drop height | 250mm |
Spout length | 230mm |
Finish | Stainless steel, PVC |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

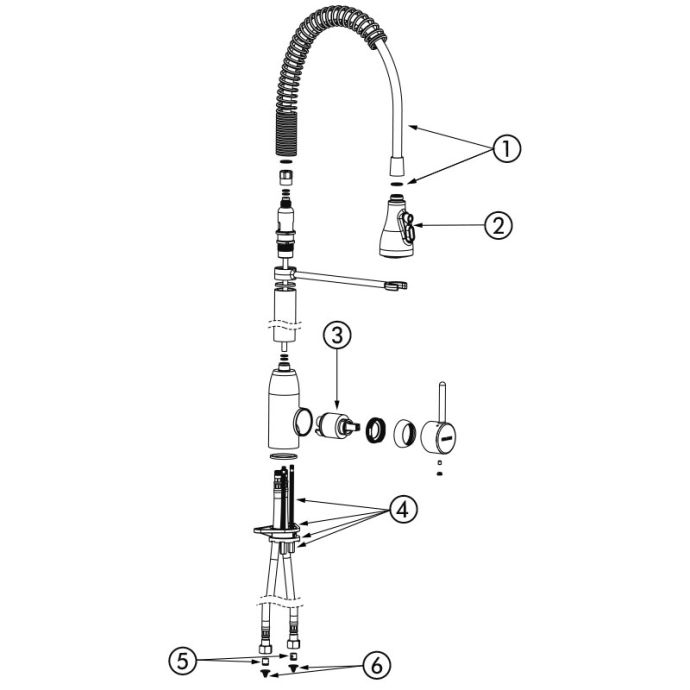

SPARE PARTS
Low pre-rinse set, single hole with a mixer
Ref. 5526![](https://www.delabie.com/var/site/storage/images/9/5/6/5/3565659-1-fre-FR/PD_5526.jpg)
1. | 435526 |
|
Flexible hose for catering |
2. | 433005 |
|
Multi-jet hand spray |
3. | N109AG75 |
|
Ø40mm ceramic cartridge |
4. | 256FIX |
|
Mounting kit |
5. | 900010 |
|
Non-return valve |
6. | 60438.10P |
|
Conical filter |
