Twin hole pre-rinse set with mixer

Ref. G6533
Without bib tap
Twin hole pre-rinse set with mixer

Presentation

DESCRIPTION

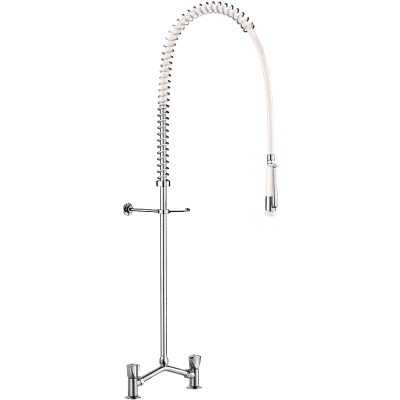

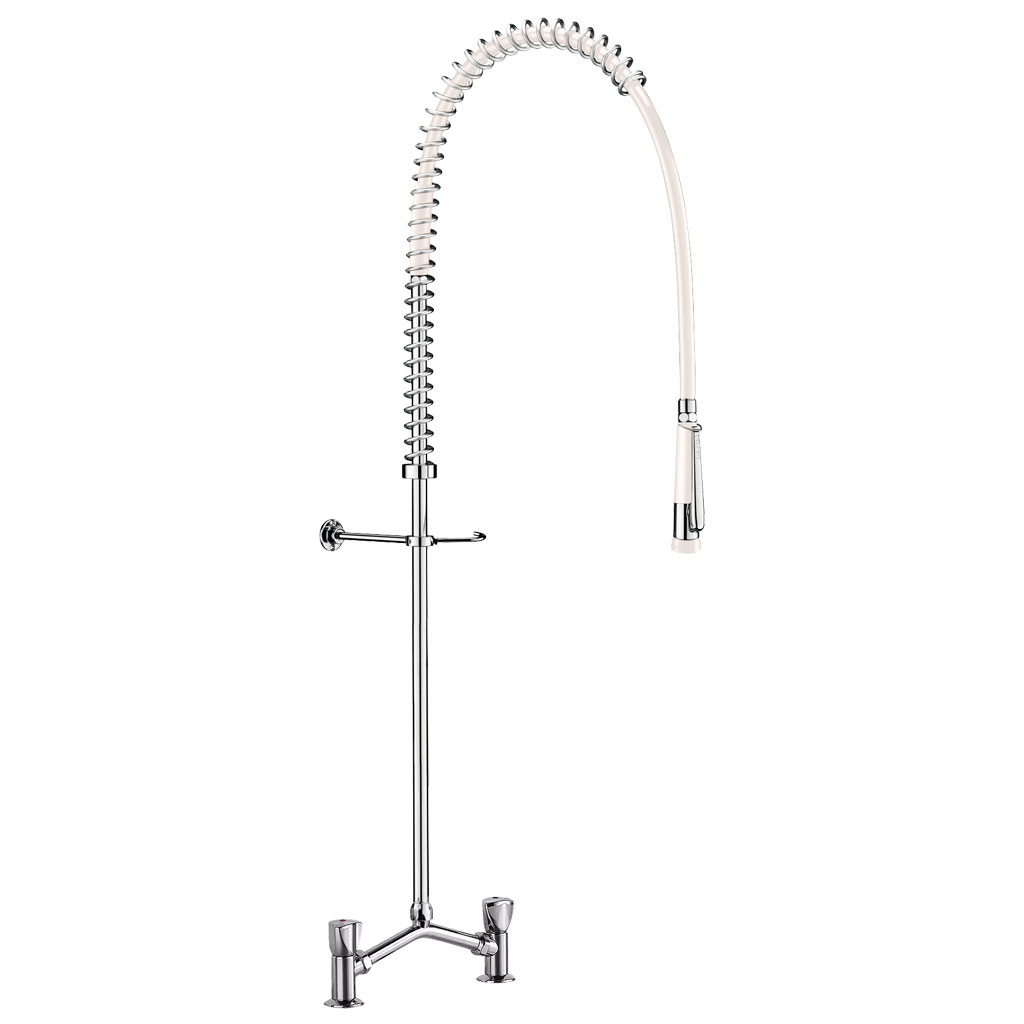

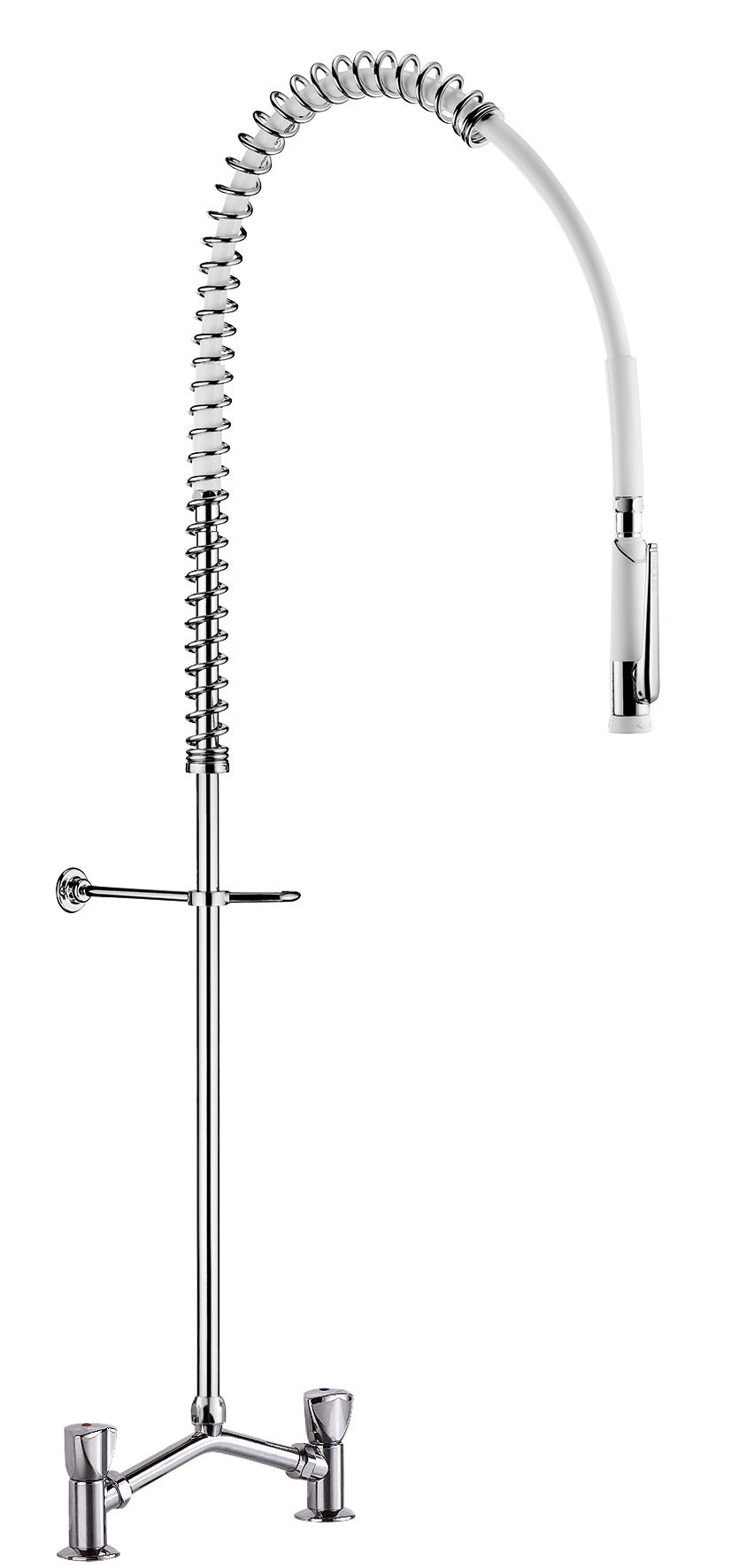

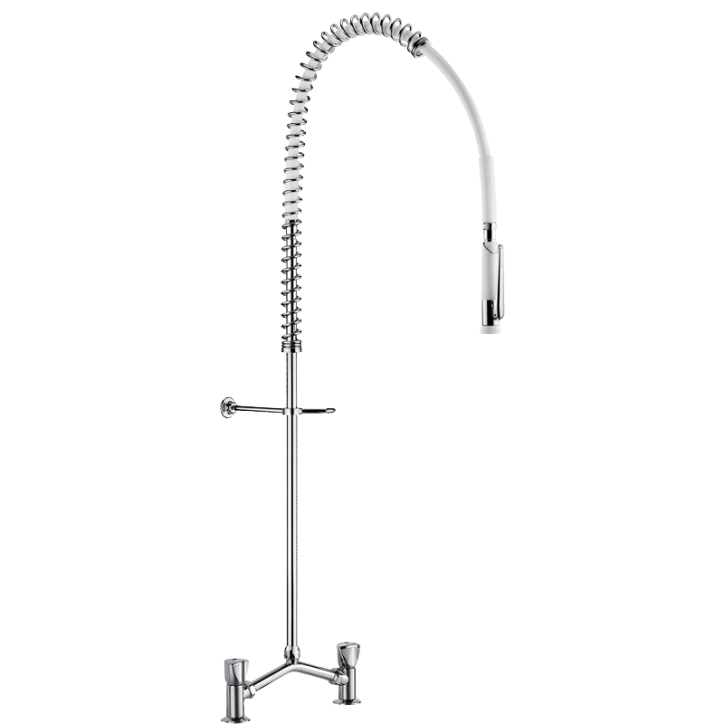

Twin hole pre-rinse set with mixer

Ref. G6533
Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- valve heads with control knobs.
- offset inlet connections with M1/2" tails.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.
These pre-rinse sets can be installed close to the splashback.

ADVANTAGES

Endurance - Fiabilité

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: Hytrel flexible, scale-resistant spray

Characteristics

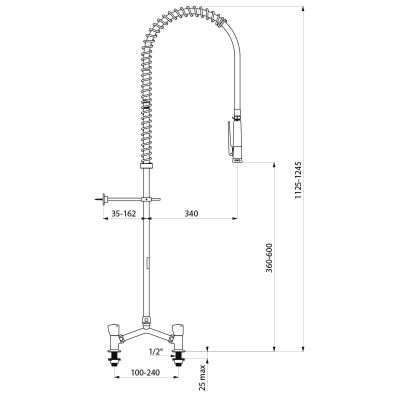

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. G6533
Connector M1/2"
Height 1125 - 1245mm
Drop height 360 - 600mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo Belgaqua Logo ACS Logo PZH
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Twin hole pre-rinse set with mixer

Ref. G6533

To download one or several documents linked to this product, please select the type of file you require :
