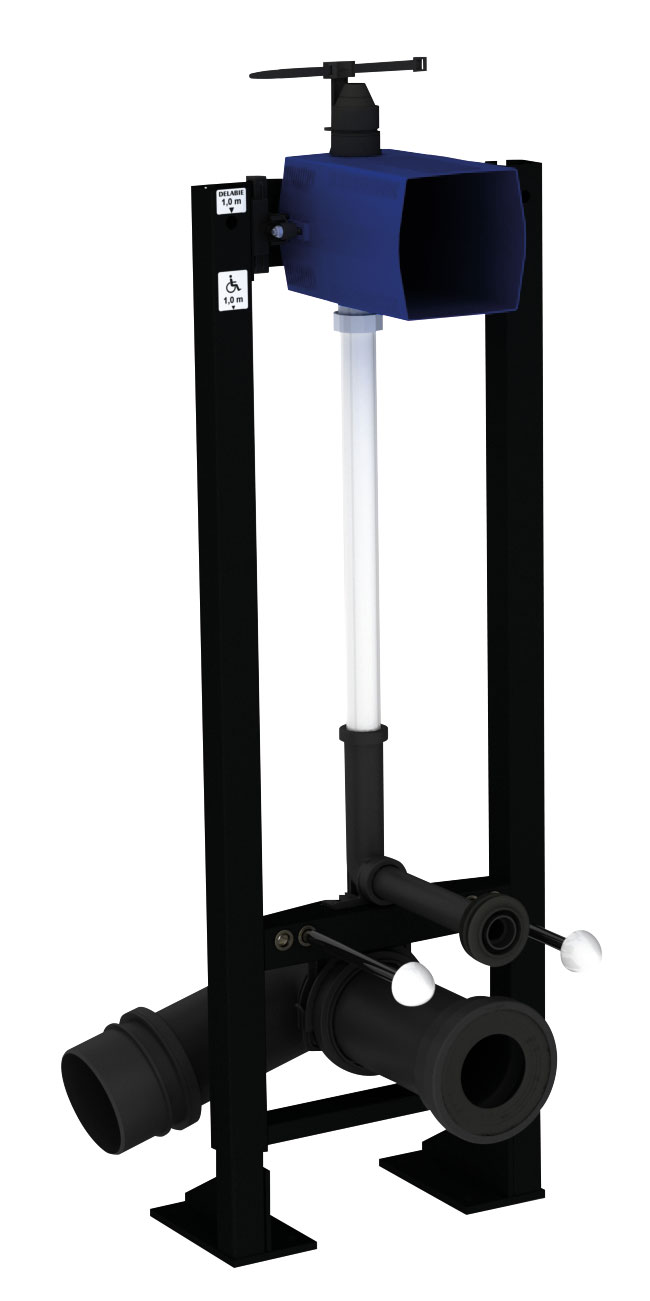

Self-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
Advantages
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Compatible with mains supply

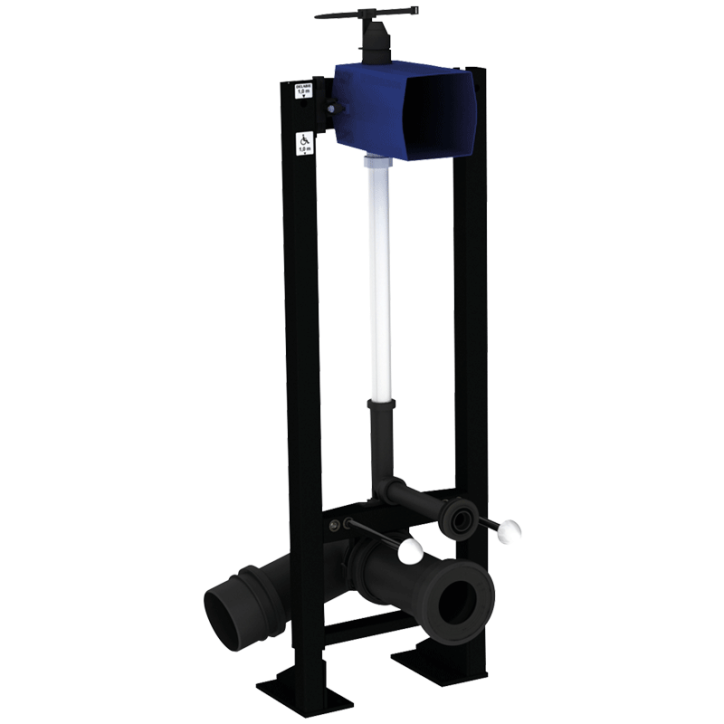

TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005DE
Connector
¾"
Technology
Electronic and time flow

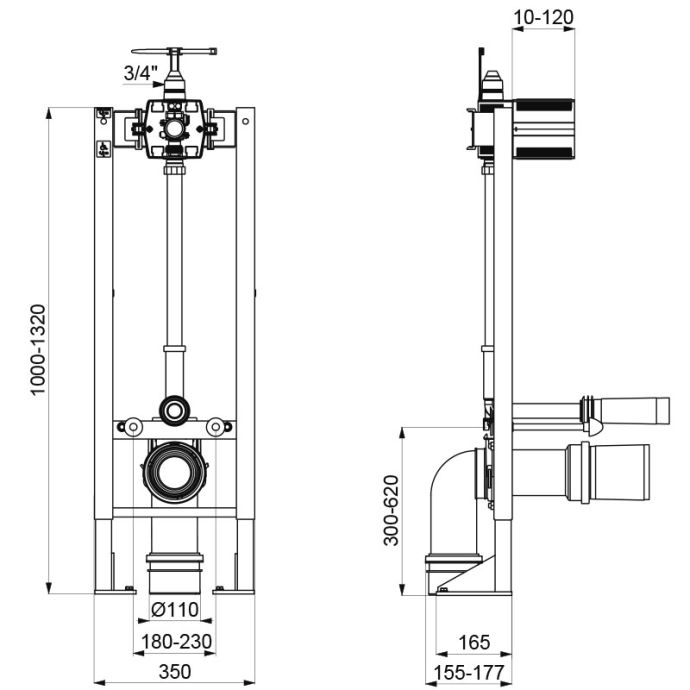

Height
1000 to 1320mm
Depth
157 - 177mm
Width
350mm
Diameter
Ø 110mm outlet
Finish
Black powder-coated steel
Warranty
TEMPOFIX 3 self-supporting frame system for WCs
Ref.
564005DE
