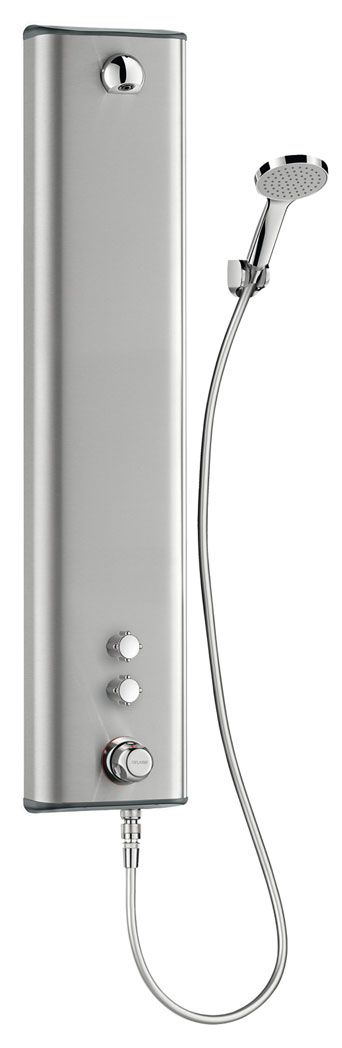

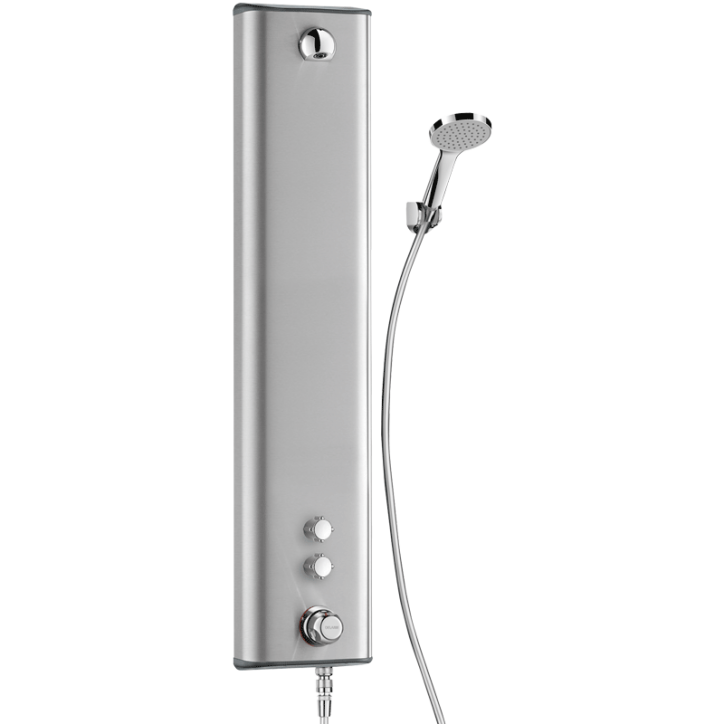

SECURITHERM dual control shower panel

Ref. 792344

Thermostatic and mechanical dual control

Ref. 792344

Dual control thermostatic shower panel with handset:
Large model satin stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector, wall support supplied.
Non-time flow valves control fixed ROUND shower head and handset with flexible.
Thermal shocks are possible.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

Advantages

Thermostatic temperature regulation

Instant shut-off if cold water fails

Fixed shower head or handset

Aluminium panel, brass controls

SECURITHERM dual control shower panel

Ref. 792344

Connector M½"

Technology Non-time flow

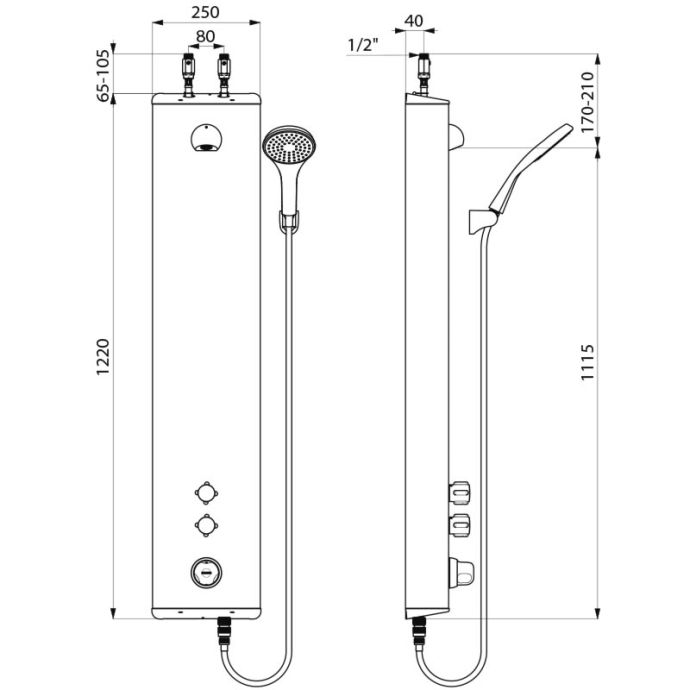

Height 1,220mm

Depth 100mm

Width 250mm

Flow rate 6 lpm

Temperature limiter Thermostatic

Finish Stainless steel

Certificates

Warranty
