Electronic and thermostatic shower mixers

SECURITHERM shower panel

Ref. 792380

Thermostatic mechanical dual control

4 variants

792320 - M1/2" top inlet + inline stopcocks
792330 - Concealed inlet via M½" flexibles
792390 - M1/2" top inlet + inline stopcocks
79239015 - Top Ø 15mm compression fittings with inline stopcocks

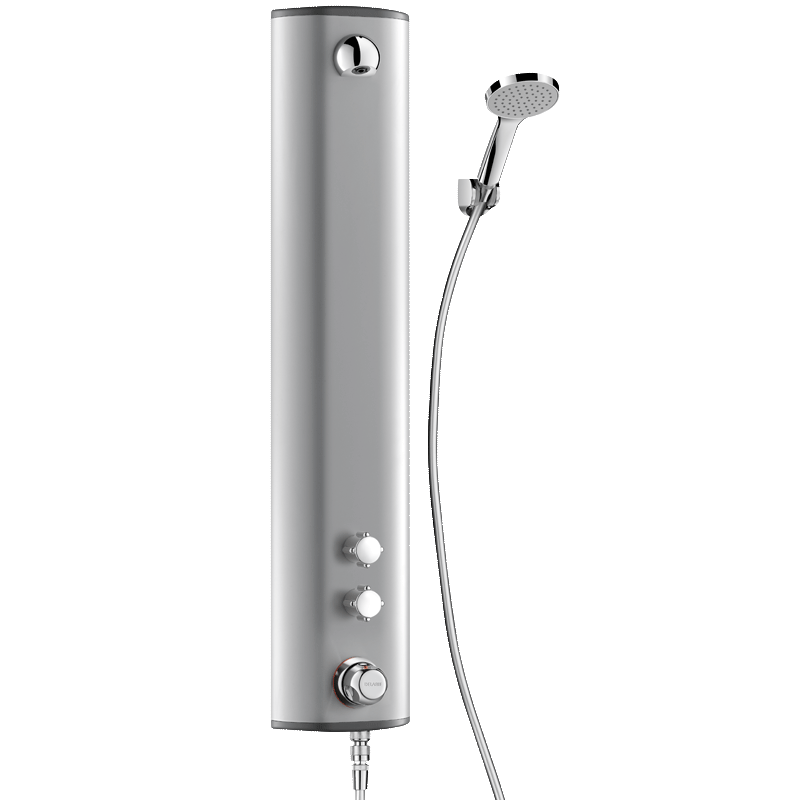

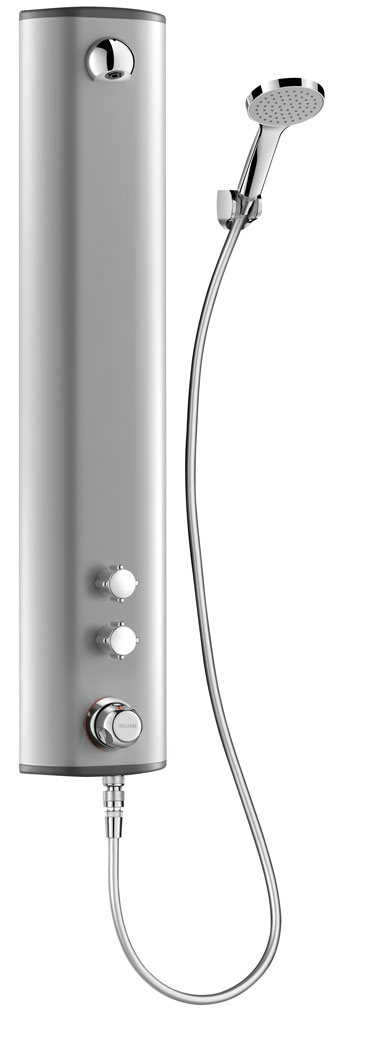

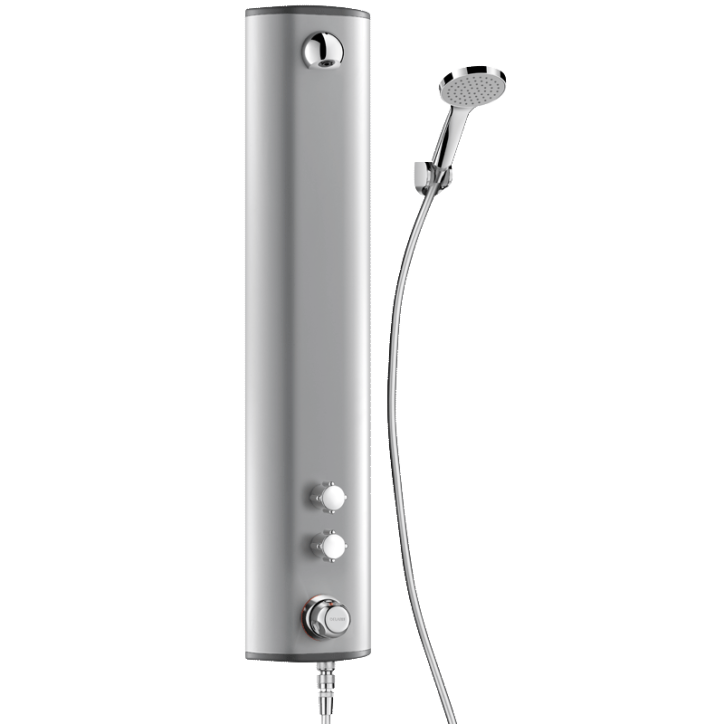

SECURITHERM shower panel

Ref. 792380

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Non-time flow 1/4-turn valves to control flow.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Confort - Ergonomie - Déclenchement souple
Themostatic control
Sécurité anti-brûlure
Instant shut-off if cold water fails
Confort - Ergonomie - Déclenchement souple
Fixed shower head or handset
Anti-vandalisme
Aluminium panel, brass controls

Associated products

Adjustable height floor trap

For tiles or concrete floors

Ref. 682001UK

Cut-to-size extension

For aluminium shower panel

Ref. 790152
