SECURITHERM shower panel
Ref. 792400
Electronic battery-operated thermostatic
Electronic battery-operated thermostatic
DESCRIPTION

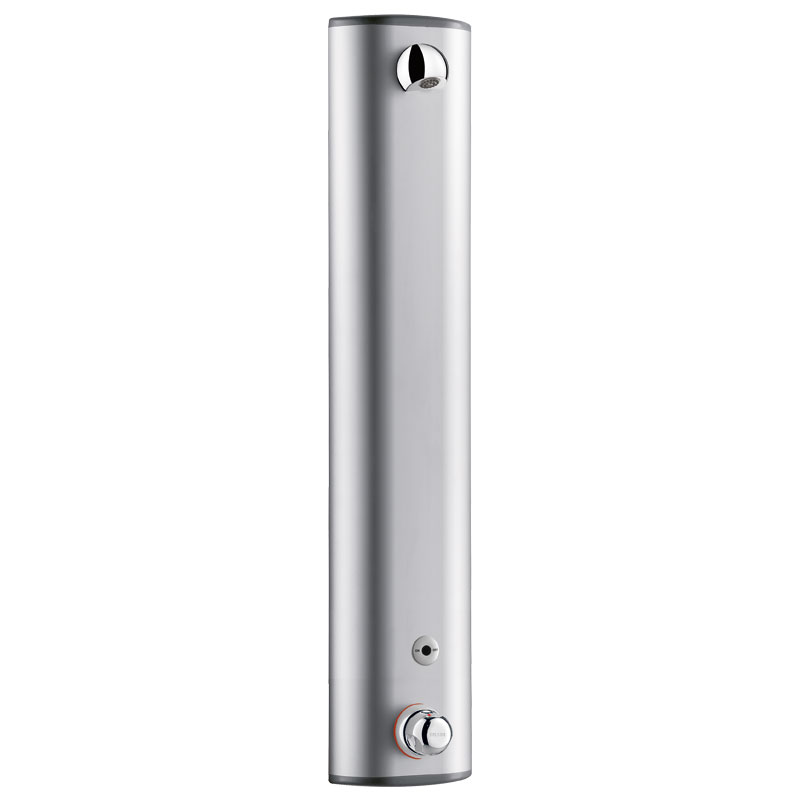

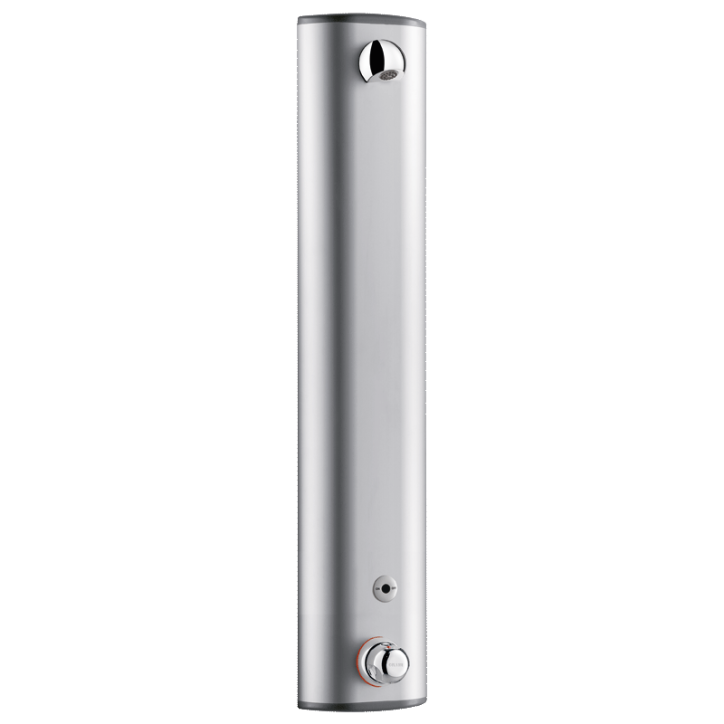

SECURITHERM shower panel
Ref. 792400Thermostatic electronic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet, via in-line stopcocks M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar, can be adjusted.
Chrome-plated, tamperproof ROUND shower head.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet, via in-line stopcocks M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar, can be adjusted.
Chrome-plated, tamperproof ROUND shower head.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Total hygiene: operate without manual contact

Automatic anti-bacterial duty flush

Thermostatic temperature regulation

Instant shut-off if cold water fails

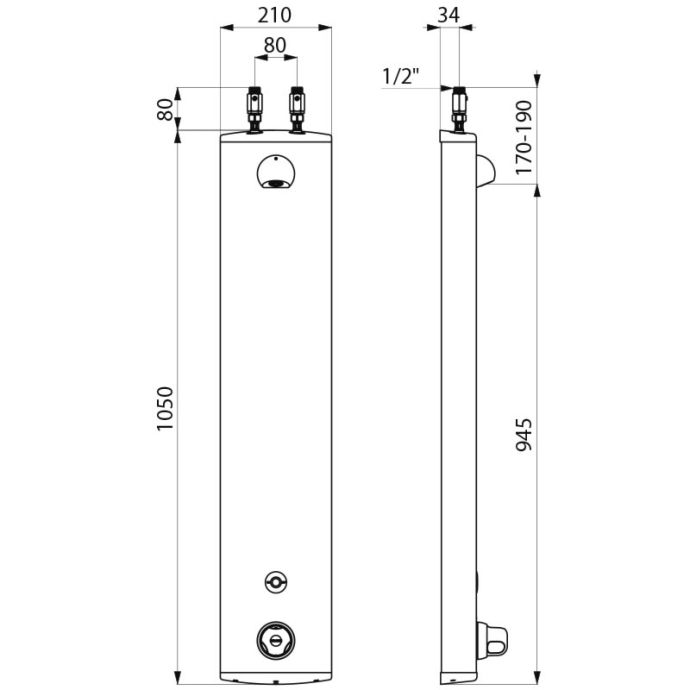

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792400| Supply | 6V battery |
| Connector | M½" |
| Technology | Electronic |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
| Certificates |
|
| Warranty | |
VARIANTS
| 79240015 | 6V battery, Ø 15mm compression fittings, top inlet, no soap dish, 6lpm | ||
|---|---|---|---|
| 792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm | ||
| 792410 | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
VARIANTS
| 79240015 | 6V battery, Ø 15mm compression fittings, top inlet, no soap dish, 6lpm | ||
|---|---|---|---|
| 792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm | ||
| 792410 | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
