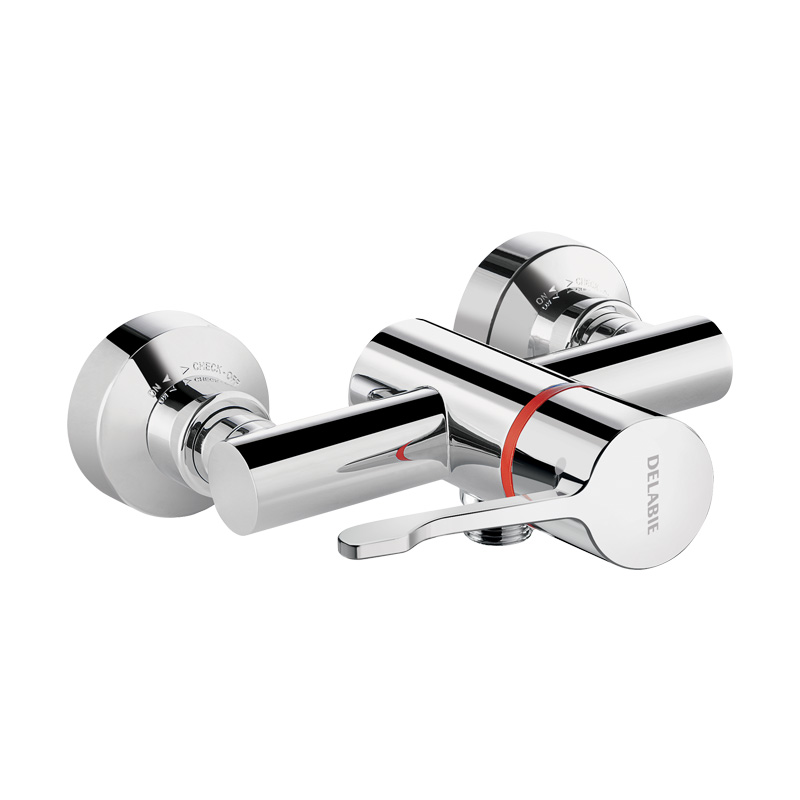

Sequential thermostatic shower mixer
Ref. H9630
Thermostatic mixer with no non-return valves, bottom outlet
Thermostatic mixer with no non-return valves, bottom outlet
DESCRIPTION
Sequential thermostatic shower mixer
Ref. H9630SECURITHERM thermostatic sequential shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.

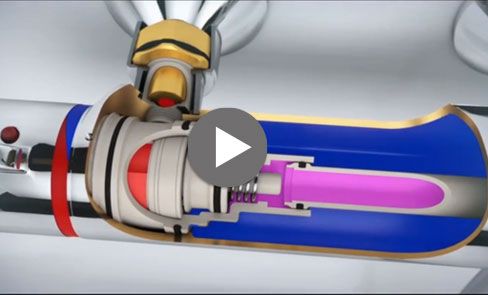

Securitouch thermal insulation prevents burns.

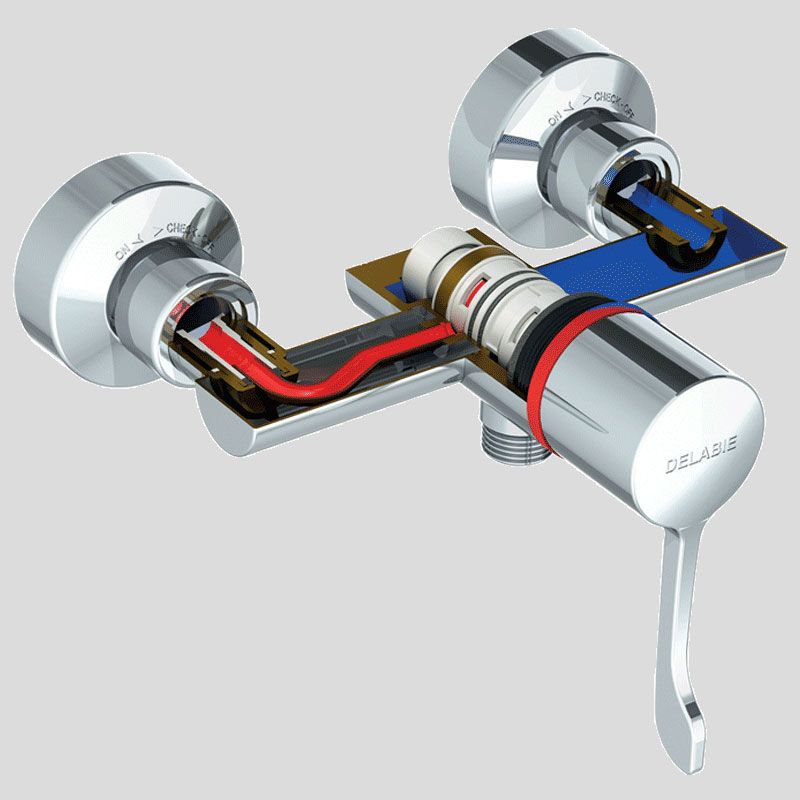

Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES

Sequential, opens/closes with cold water

Maximum hygiene: no non-return valves

SECURITHERM: optimal anti-scalding safety

Thermostatic: complete temperature stability
TECHNICAL CHARACTERISTICS
Sequential thermostatic shower mixer
Ref. H9630| Connector | M1/2" |
| Technology | SECURITHERM Securitouch sequential thermostatic mixer |

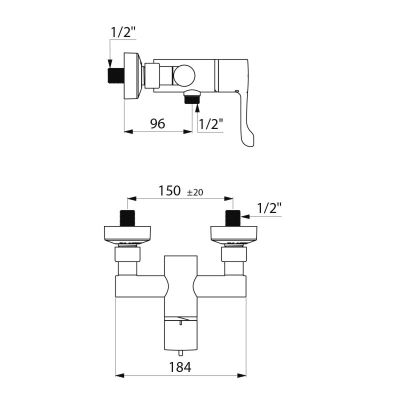

| Length | 184mm |
| Flow rate | 9 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Compatible products
COMPATIBLE PRODUCTS
Sequential thermostatic shower mixer
Ref. H9630| H9630HYG |
|
Auto-draining shower kit with thermostatic mixer |
| H9630KIT |
|
Shower kit with thermostatic mixer |
Spare parts
SPARE PARTS
Sequential thermostatic shower mixer
Ref. H9630
| 1. | 9630 |
|
SECURITHERM sequential thermostatic shower mixer |
| 2. | 855755.2P |
|
Offset connectors |
VARIANTS
| 9630 | No unions - bottom outlet | ||
|---|---|---|---|
| H963015 | |||
| H9640 | Offset STOP/CHECK connectors - top outlet | ||
| H9630S | Standard offset connectors - bottom outlet |
VARIANTS
| 9630 | No unions - bottom outlet | ||
|---|---|---|---|
| H963015 | |||
| H9640 | Offset STOP/CHECK connectors - top outlet | ||
| H9630S | Standard offset connectors - bottom outlet |
