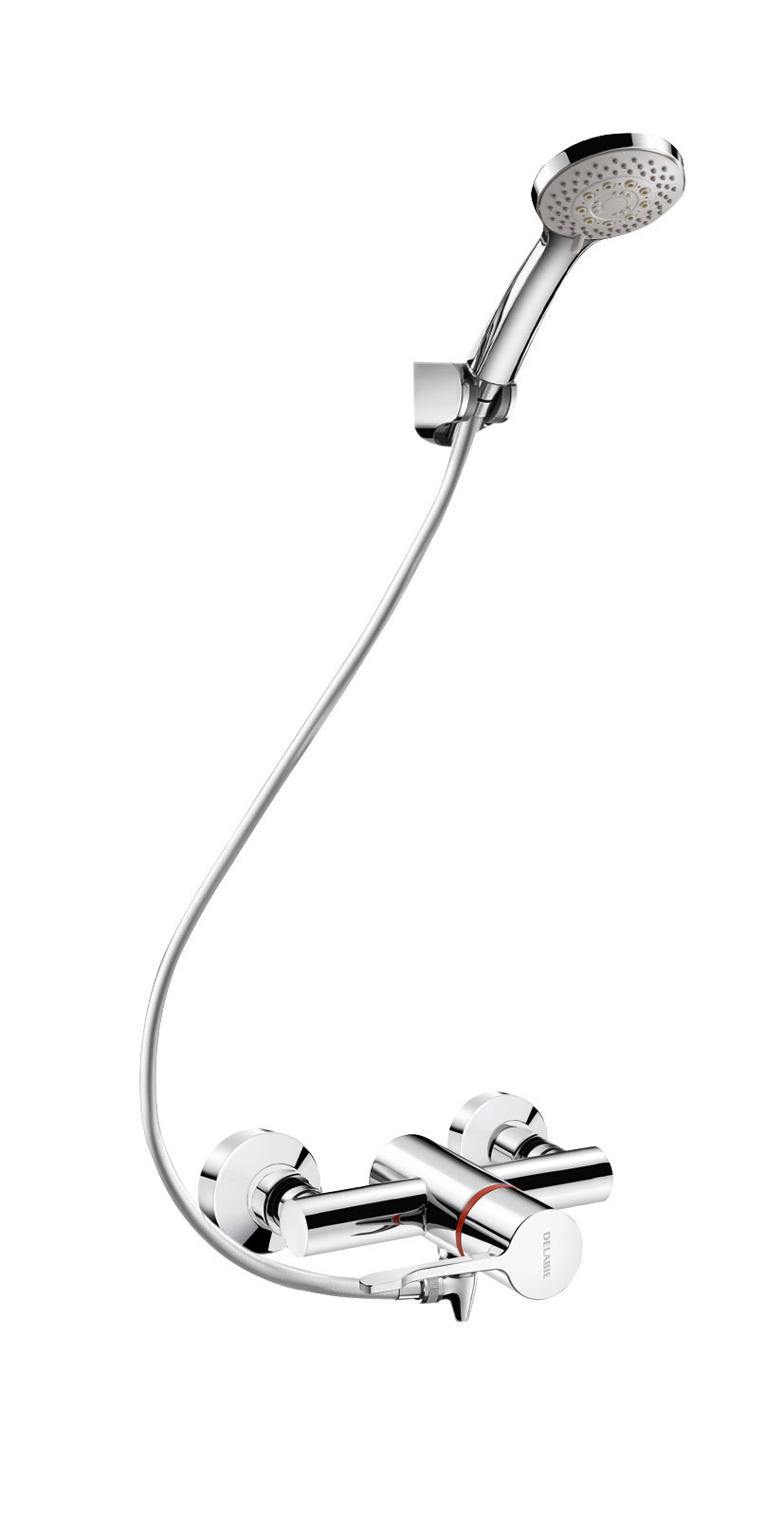

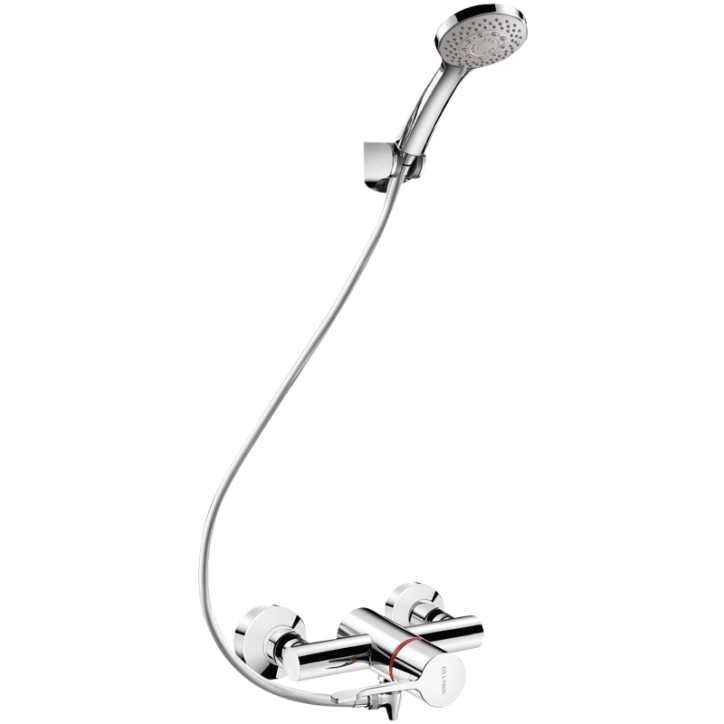

Auto-draining shower kit with thermostatic mixer
                        Ref.  H9630SHYG

Thermostatic sequential mixer with no non-return valves
                    Thermostatic sequential mixer with no non-return valves
DESCRIPTION
Auto-draining shower kit with thermostatic mixer
Ref. H9630SHYGSECURITHERM thermostatic sequential shower kit with auto-draining device.
• Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.

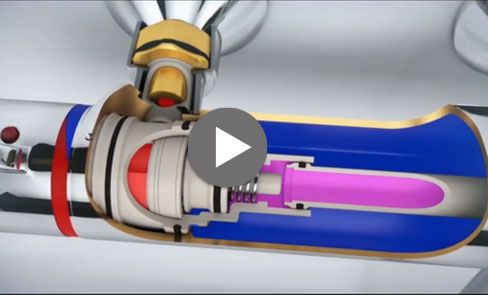

Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with 2 standard offset M1/2" M3/4" connectors.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).

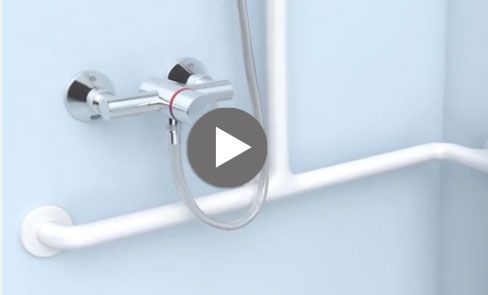

Suitable for people with reduced mobility.
30-year warranty.
            • Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with 2 standard offset M1/2" M3/4" connectors.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Sequential: opens/closes with cold water

Maximum hygiene: no non-return valves

SECURITHERM: optimal anti-scalding safety

Thermostatic: complete temperature stability

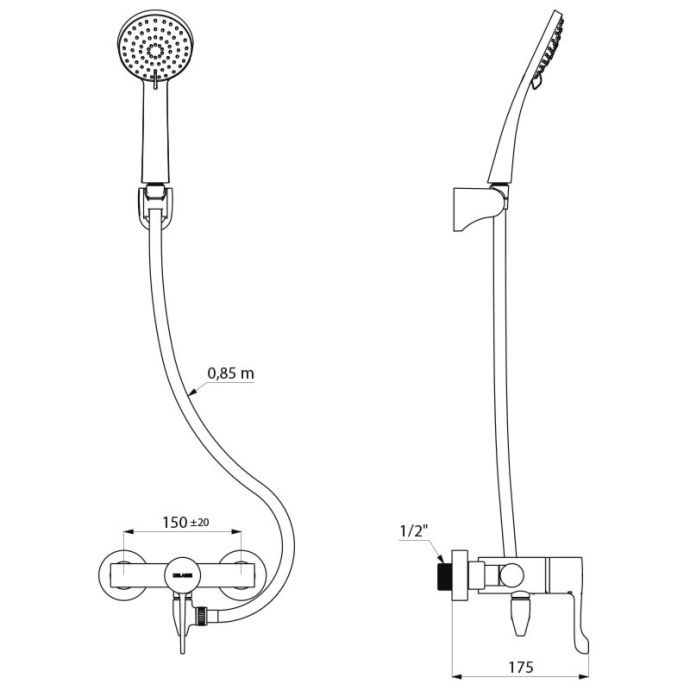

TECHNICAL CHARACTERISTICS
Auto-draining shower kit with thermostatic mixer
Ref. H9630SHYG| Connector | M1/2" |
| Technology | SECURITHERM single control thermostatic mixer, Securitouch |
| Depth | 175mm |
| Length | 184mm |
| Flow rate | 9 lpm |
| Temperature limiter | 39°C |
| Finish | Chrome-plated brass |
| Certificates |     |
| Warranty |   |
| Repairability |  |
Spare parts

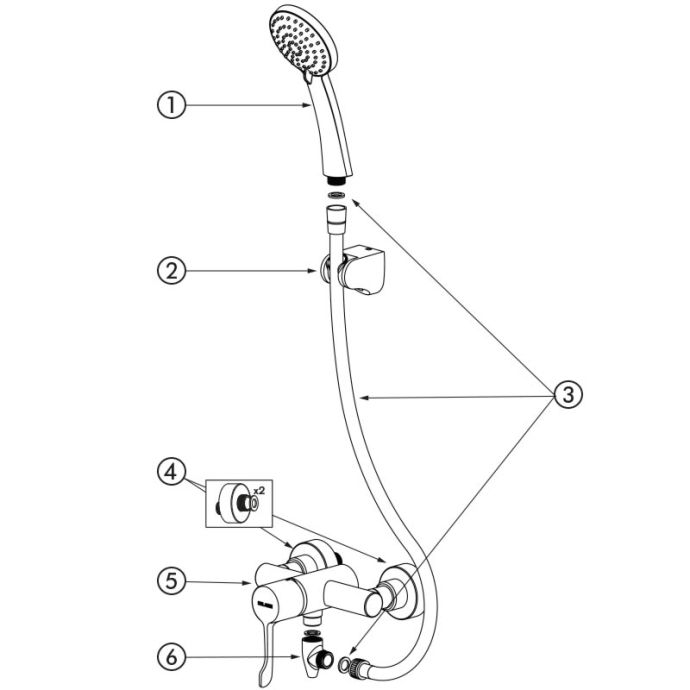

SPARE PARTS
Auto-draining shower kit with thermostatic mixer
Ref. H9630SHYG

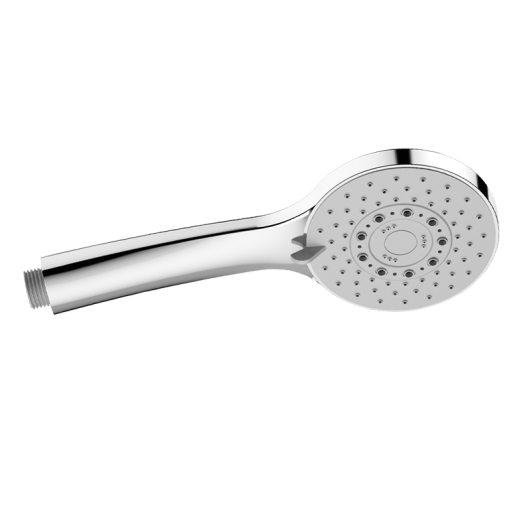

                                    | 1. | 813 |  | Chrome-plated shower head with 5 jets, M1/2" |
| 2. | 845 |  | Wall-mounted tilting support for shower heads |
| 3. | 836T3 |  | SILVER flexible shower hose |
| 4. | 856794.2P |  | Offset union |
| 5. | H9630S |  | Sequential thermostatic shower mixer |
| 6. | 880 |  | Auto-draining device |
VARIANTS
| H9630HYG | Offset STOP/CHECK connectors |
|---|
VARIANTS
| H9630HYG | Offset STOP/CHECK connectors |
|---|
