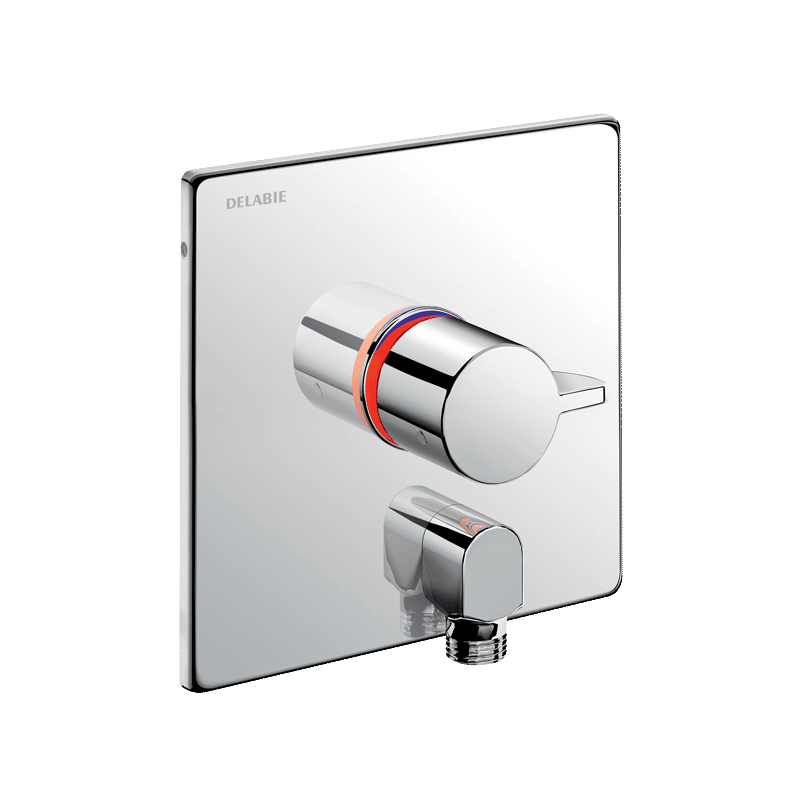

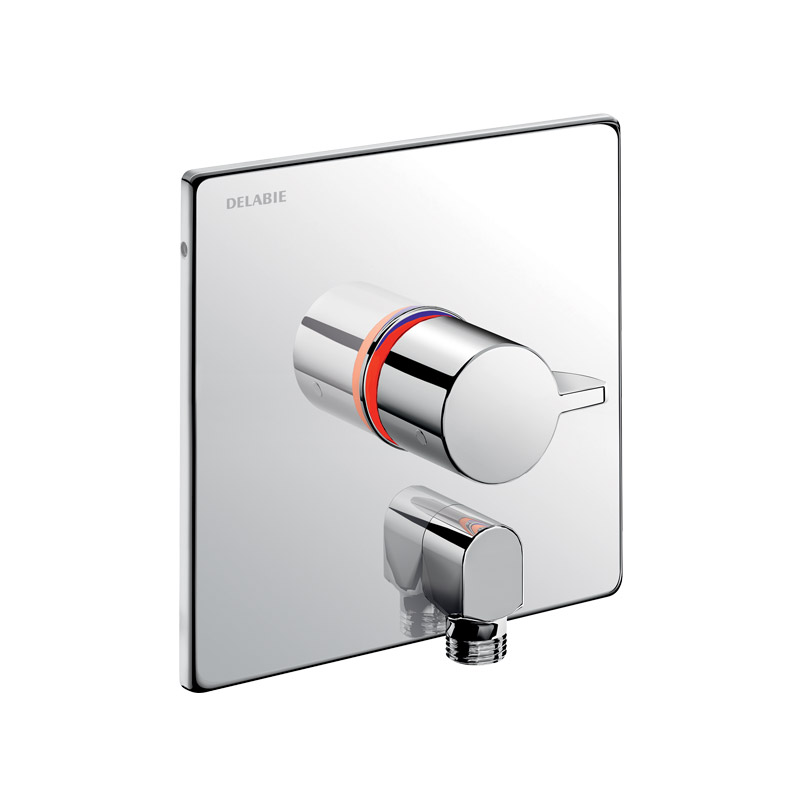

Recessed sequential thermostatic shower mixer with angled outlet
Ref. H9633
SECURITHERM mixer with no non-return valves, kit 2/2
SECURITHERM mixer with no non-return valves, kit 2/2
DESCRIPTION
Recessed sequential thermostatic shower mixer with angled outlet
Ref. H9633SECURITHEM recessed thermostatic shower mixer with angled outlet, kit 2/2 :
Sequential thermostatic mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial development).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Avoids cold showers: shuts off automatically if hot water supply fails.
Sequential mixer with Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with pre-set maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with a shower head.
ERGO control knob.
Filters integrated in the M3/4" inlets.
Order a shower head or wall outlet.
Bright polished stainless steel cover plate 166 x 166mm
Mixer ideal for use in healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Order with the waterproof recessing housing ref. H96CBOX.
Sequential thermostatic mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial development).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Avoids cold showers: shuts off automatically if hot water supply fails.
Sequential mixer with Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with pre-set maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with a shower head.
ERGO control knob.
Filters integrated in the M3/4" inlets.
Order a shower head or wall outlet.
Bright polished stainless steel cover plate 166 x 166mm
Mixer ideal for use in healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Order with the waterproof recessing housing ref. H96CBOX.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Maximum hygiene: no non-return valves
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: optimal anti-scalding safety
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Thermostatic: total temperature stability
TECHNICAL CHARACTERISTICS
Recessed sequential thermostatic shower mixer with angled outlet
Ref. H9633Technology | SECURITHERM Securitouch sequential thermostatic mixer |

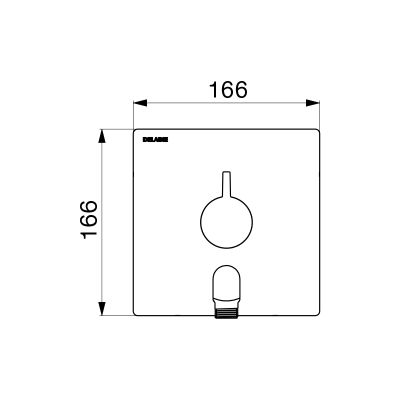

Height | 166mm |
Width | 166mm |
Flow rate | Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Recessed sequential thermostatic shower mixer with angled outlet
Ref. H9633![](https://www.delabie.com/var/site/storage/images/4/3/0/5/3555034-1-fre-FR/PD_H9633.jpg)
1. | N962 |
|
Thermostatic cartridge for shower mixers |
VARIANTS
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
---|---|---|---|
H9631L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96BOX | Waterproof housing for control plate without elbow | ||
H96CBOX | Waterproof housing for control plate with elbow |
