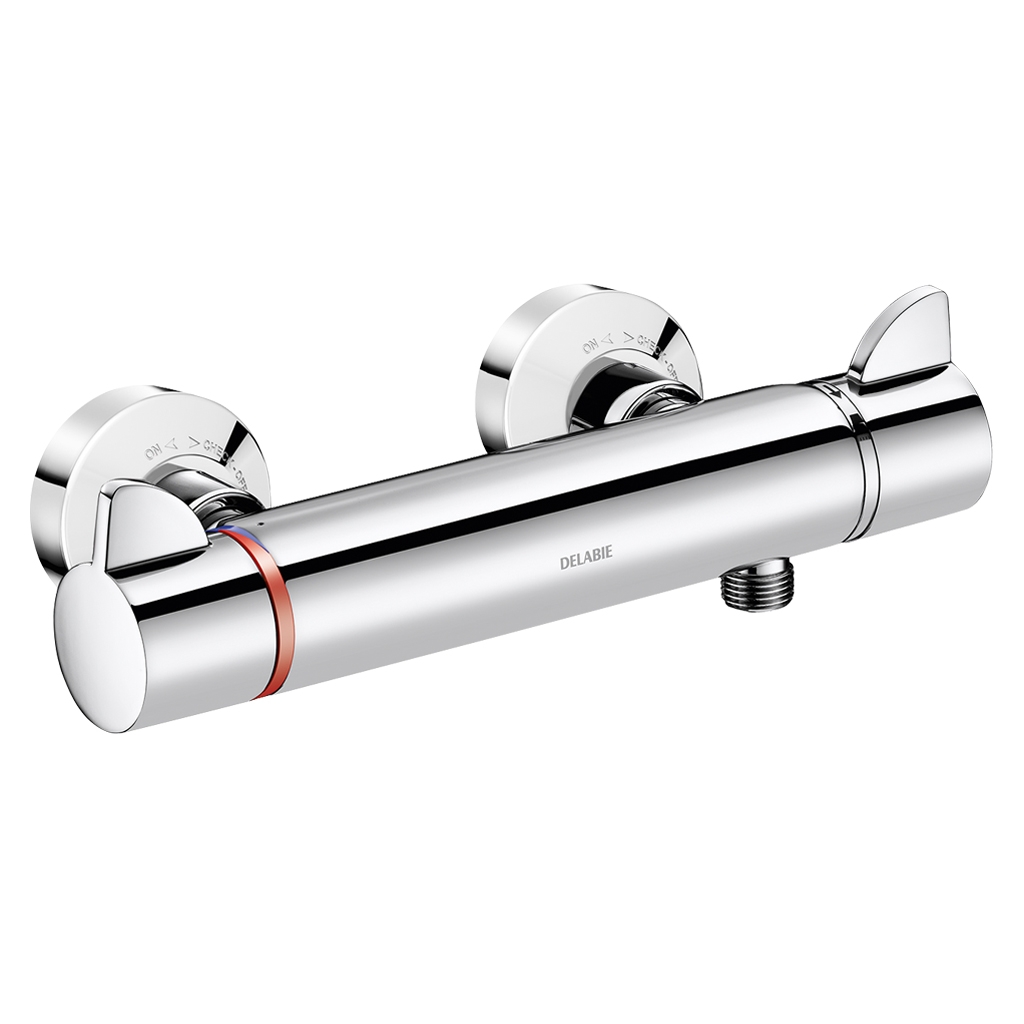

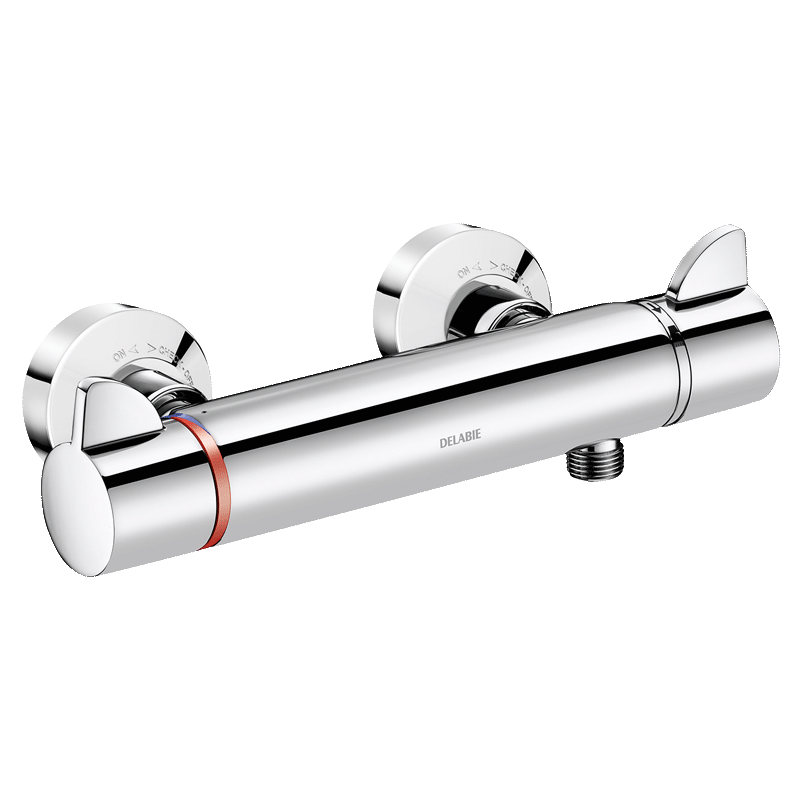

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741TP

Dual control thermostatic shower mixer

3 variants

H9741 - Offset STOP/CHECK connectors

H9741S - Standard offset connectors

9741 - Without connectors

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741TP

Dual control SECURITHERM thermostatic shower mixer.
Mixer with anti-scalding safety: shuts off automatically if cold water fails.
Prevents cold showers if hot water supply fails.
Securitouch thermal insulation to prevent burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼-turn ceramic head for flow rate adjustment.
Temperature adjusts from 25°C to 41°C.
Maximum temperature limiter pre-set to 38°C.
Thermal shocks are easy to undertake without shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and ERGO controls.
M1/2" shower outlet.
Filters and non-return valves built-in to inlets F3/4".
Mixer with inline STOP/CHECK connectors M1/2" M3/4".

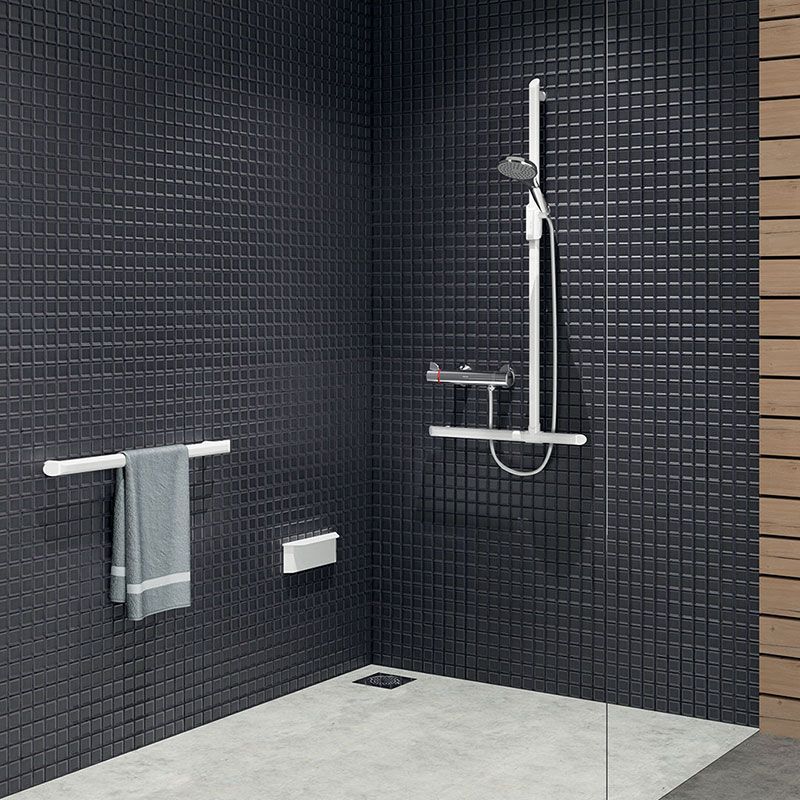

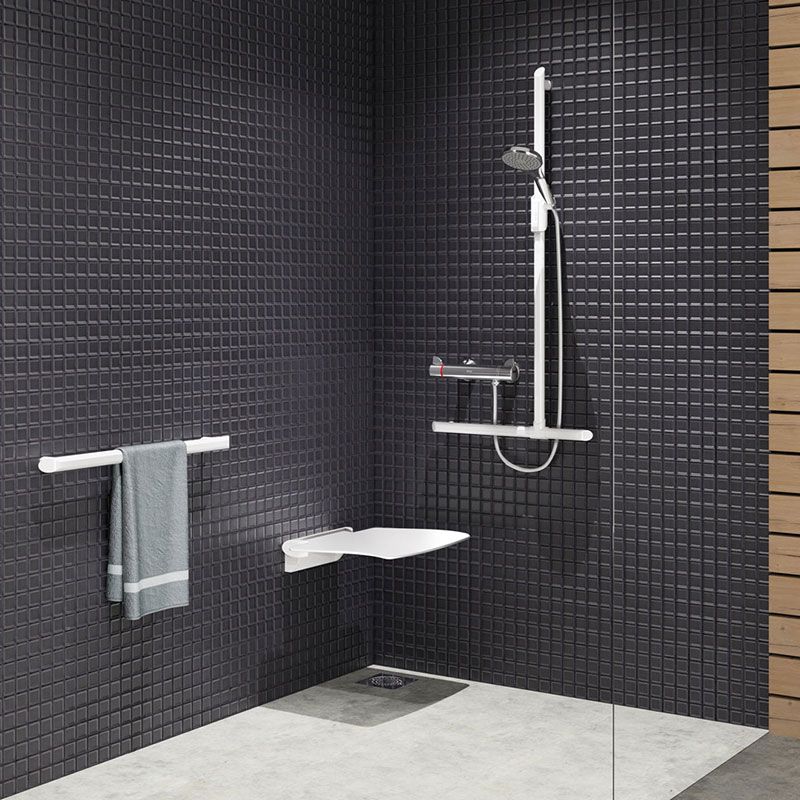

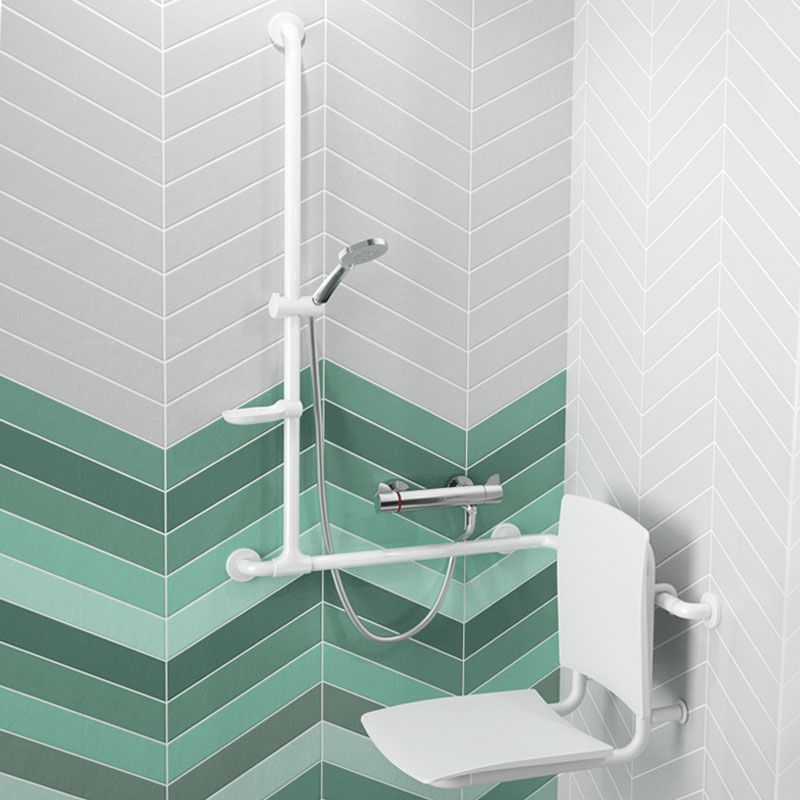

Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

Advantages

SECURITHERM: Anti-scalding safety

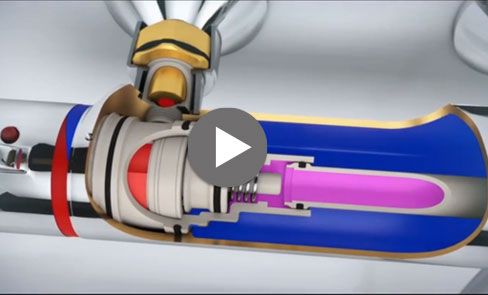

Securitouch thermal insulation prevents burns

Thermostatic: complete temperature stability

Pre-set maximum temperature limiter

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741TP

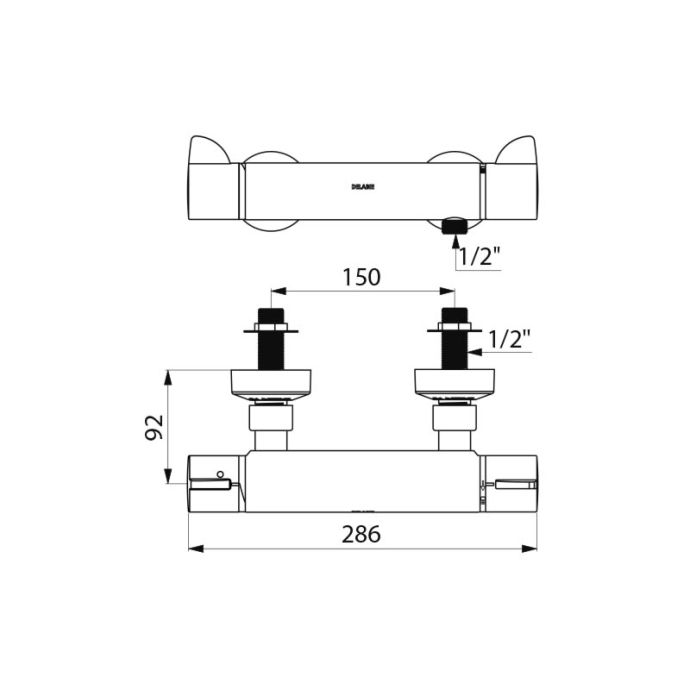

Connector M1/2"

Technology SECURITHERM Securitouch thermostatic mixer

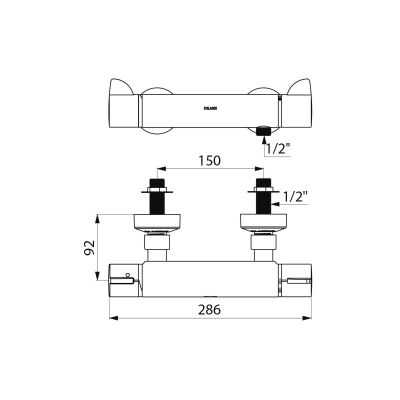

Depth 92mm

Length 286mm

Flow rate 9 lpm

Temperature limiter 38°C

Finish Chrome-plated brass

Certificates

Warranty

Thermostatic shower mixer: anti-scalding safety and infection control

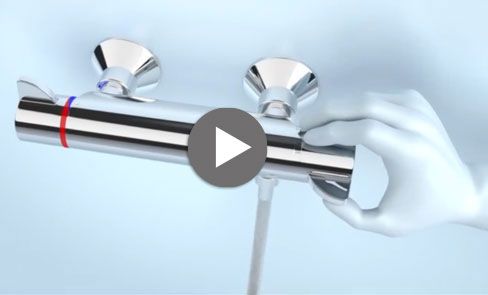

Ergonomic: shower mixer with ERGO controls which are easy to grip
