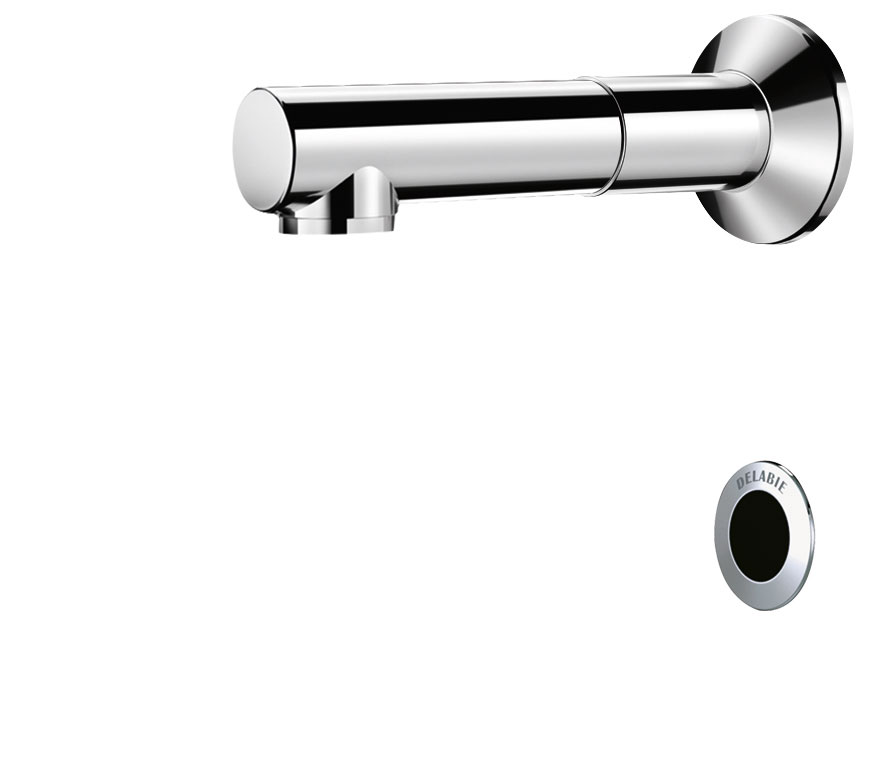

Wall-mounted electronic basin tap for mounting on panels.
Electronic tap with BIOCLIP removable spout

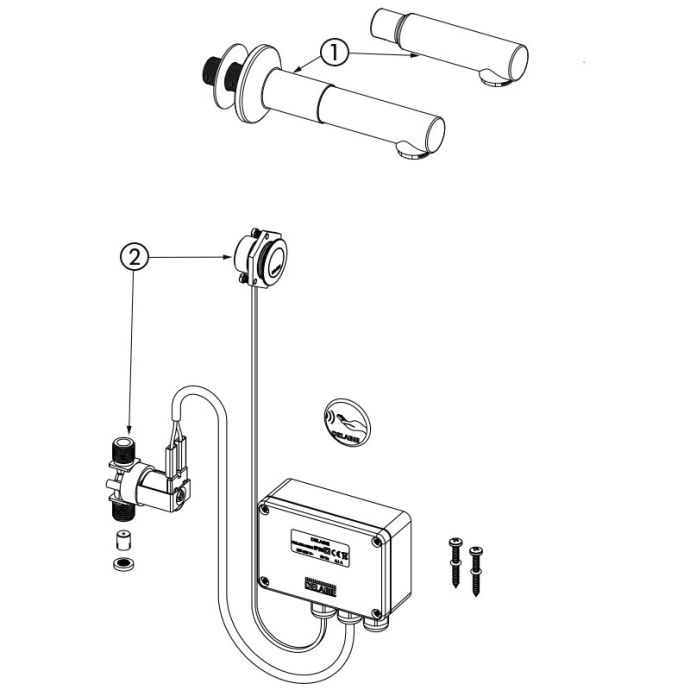

Infrared tap supplied with 2 removable BIOCLIP stainless steel spouts L. 77mm.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Base and spout with smooth interiors (reduces bacterial development).
Adjustable duty flush (pre-set at ~60 seconds every 24 hours after last use).
Flow rate limited to 4 lpm at 3 bar.
Shock-resistant infrared presence detection sensor.
Separate sensor for mounting on panels.
M3/8" solenoid valve with integrated filter.
Ø 60mm chrome-plated brass base.
Anti-blocking security.
Recommended installation height: 110 - 200mm above the basin surface.

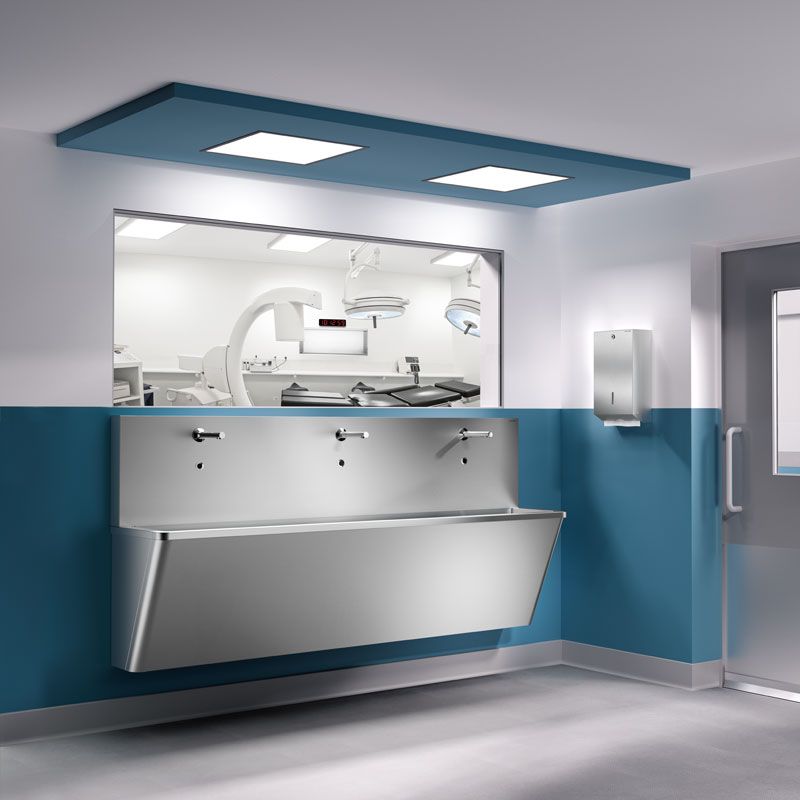

Electronic tap suitable for use in healthcare facilities, retirement and care homes, hospitals and clinics.
Electronic tap suitable for people with reduced mobility.
30-year warranty.
Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.
Mount the sensor beside the tap in the ON/OFF mode.
Advantages
Automatic duty flush limits bacterial development
Hygiene: spout can be removed and descaled inside
Hygiene: smooth interior reduces bacteria
No manual contact: infrared sensor

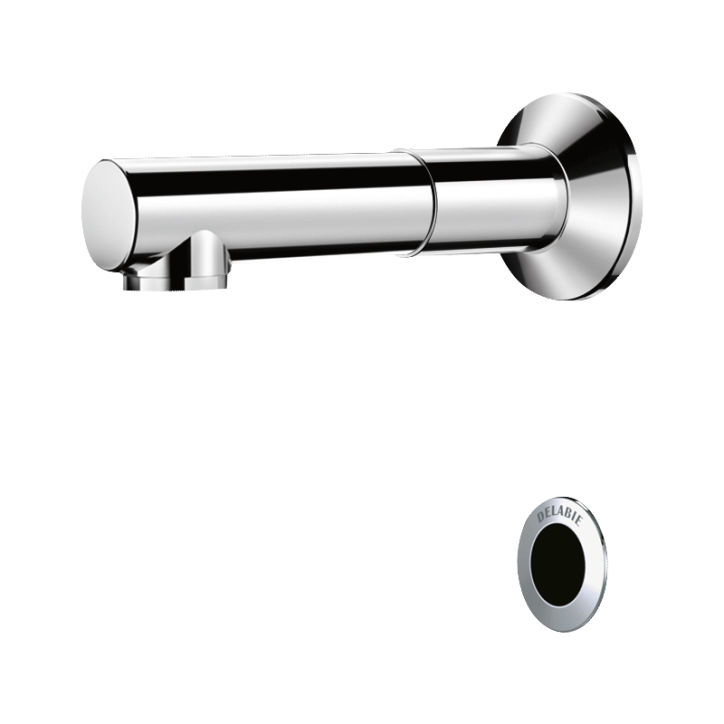

TEMPOMATIC tap with BIOCLIP spout
Ref. 20804T2
Connector
3/8"
Technology
Wall-mounted electronic tap
Depth
190mm
Length
129mm
Spout length
188mm
Flow rate
4 lpm at 3 bar
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
TEMPOMATIC tap with BIOCLIP spout
Ref.
20804T2
