DESCRIPTION

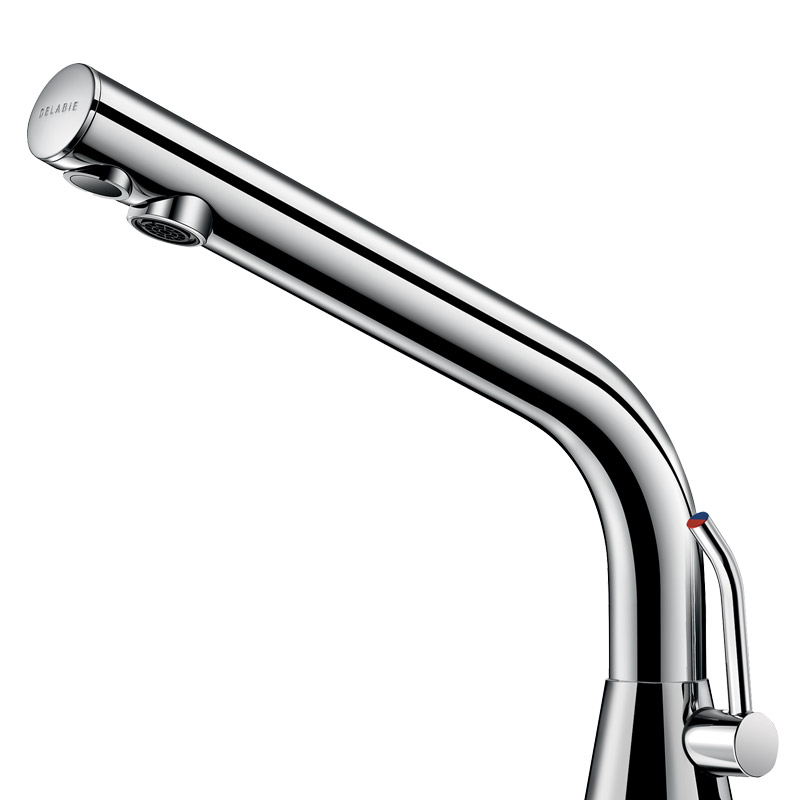

BINOPTIC MIX electronic mixer
Ref. 388MCHLH15Deck-mounted electronic basin mixer:
Independant IP65 electronic unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set at 60 seconds every 24 hours after the last use).
Optimised active infrared presence detection at the end of the spout.
Body in chrome-plated brass.
PEX flexibles with filters and Ø 15mm compression fittings.
Fixings reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control lever with long lever and adjustable maximum temperature limiter.
Drop height: 170mm, for semi-recessed basins.
Suitable for people with reduced mobility.
30-year warranty.
Independant IP65 electronic unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set at 60 seconds every 24 hours after the last use).
Optimised active infrared presence detection at the end of the spout.
Body in chrome-plated brass.
PEX flexibles with filters and Ø 15mm compression fittings.
Fixings reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control lever with long lever and adjustable maximum temperature limiter.
Drop height: 170mm, for semi-recessed basins.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial duty flush
LED diagnostic aid
TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 388MCHLH15| Supply | 230/12V mains supply |
| Connector | M1/2'' Ø 15mm |
| Technology | Electronic |
| Drop height | 170mm |
| Spout length | 175mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 388MCHLH | Mains supply - Spout H. 170mm - long lever - M3/8" | ||
|---|---|---|---|
| 398MCHLH | Mains supply - Spout H. 250mm - long lever - M3/8" | ||
| 398MCHLH15 | Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings | ||
| 488MCHLH | Battery operated - Spout H. 170mm - long lever - M3/8" | ||
| 488MCHLH15 | Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings | ||
| 498MCHLH | Battery operated - Spout H. 250mm - long lever - M3/8" | ||
| 498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings |
Winner of the German Design Award 2019

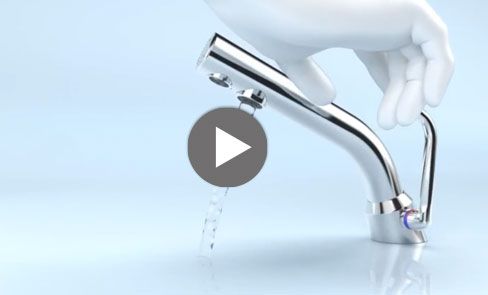

An ergonomic temperature lever for the BINOPTIC
