Ref. 490106LH
Integrated batteries
11 variants
490000 -
Mains supply, recessed unit - standard lever - Stopcocks
490000LH -
Mains supply, recessed unit - long lever - With stopcocks
49000015 -
Mains supply, recessed unit - standard lever Stopcocks - Ø15mm
490100LH -
Mains supply, recessed unit - long lever -Without stopcocks
490100 -
Mains supply, recessed unit - standard lever - Without stopcocks
490001 -
Mains supply, plug - standard lever - With stopcocks
490006LH -
Battery operated - long lever - With stopcocks
490101 -
Mains supply, plug - standard lever - Without stopcocks
490006 -
Battery operated - standard lever - With stopcocks
49000615 -
Battery operated - standard lever - With stopcocks - Ø15mm
490106 -
Battery operated - standard lever - Without stopcocks

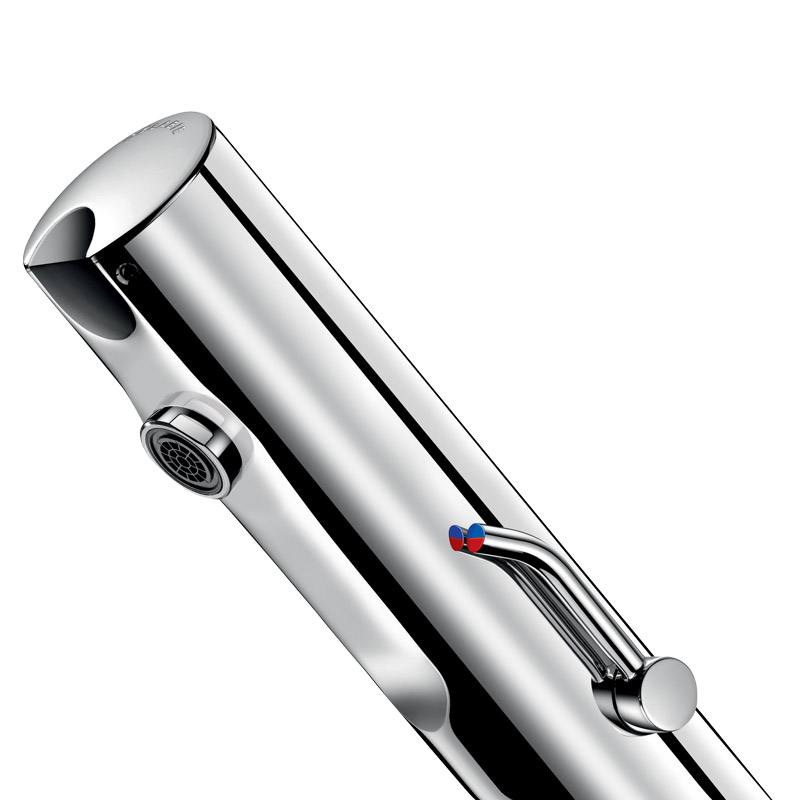

TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LH
Deck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated metal body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated metal body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LH
Supply
6V batteries
Connector F3/8"
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector F3/8"
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LH
To download one or several documents linked to this product, please select the type of file you require
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LH
Discover the advantages of the TEMPOMATIC 4
