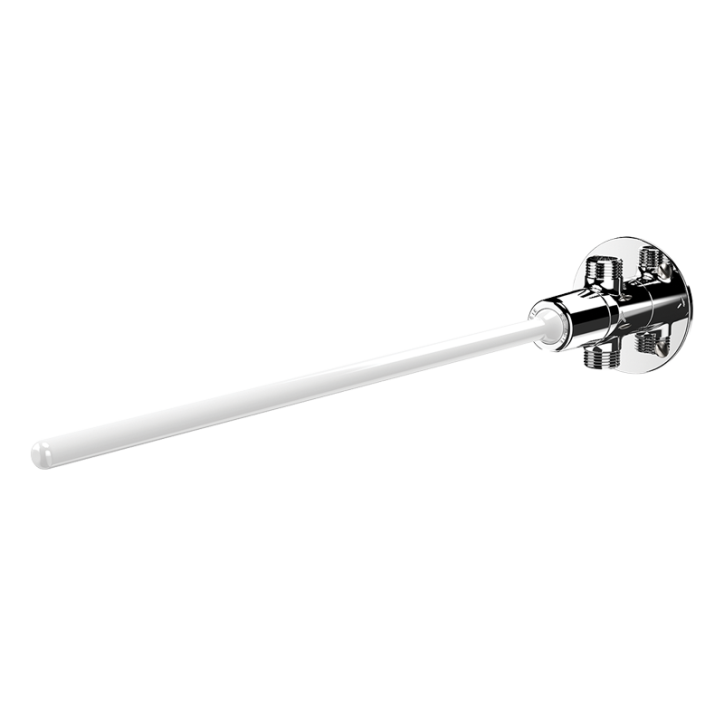

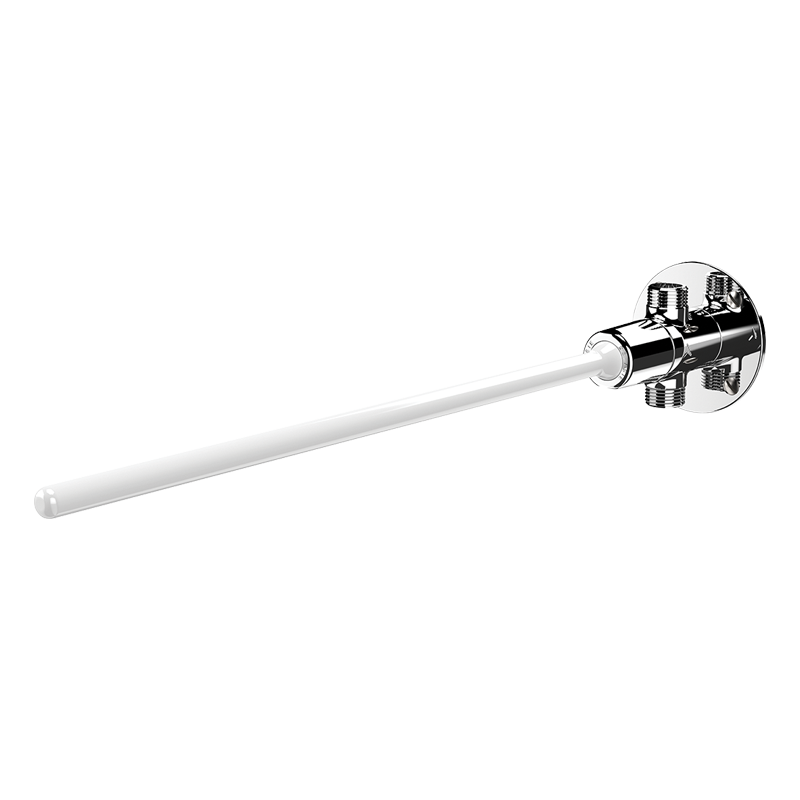

TEMPOGENOU time flow tap

Ref. 735400
Knee-operated
See variants See variants
TEMPOGENOU time flow tap

Presentation

DESCRIPTION

TEMPOGENOU time flow tap

Ref. 735400
Knee-operated time flow basin valve:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Reinforced control lever.
Brass wall plate with reinforced fixing via 4 stainless steel screws.
Cold or mixed water supply.
Chrome-plated brass body M½".
Straight model for in-line.
30-year warranty.

ADVANTAGES

Economie d'eau

85% water savings

Confort - Ergonomie - Déclenchement souple

Knee-operated

Anti-vandalisme

Reinforced fixing and rod

Sans contact manuel

Total hygiene: no manual contact

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOGENOU time flow tap

Ref. 735400
Connector M½"
Technology Time flow
Length 435mm
Flow rate 3 lpm
Certificates ACS WRAS PZH DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

TEMPOGENOU time flow tap

Ref. 735400

To download one or several documents linked to this product, please select the type of file you require :

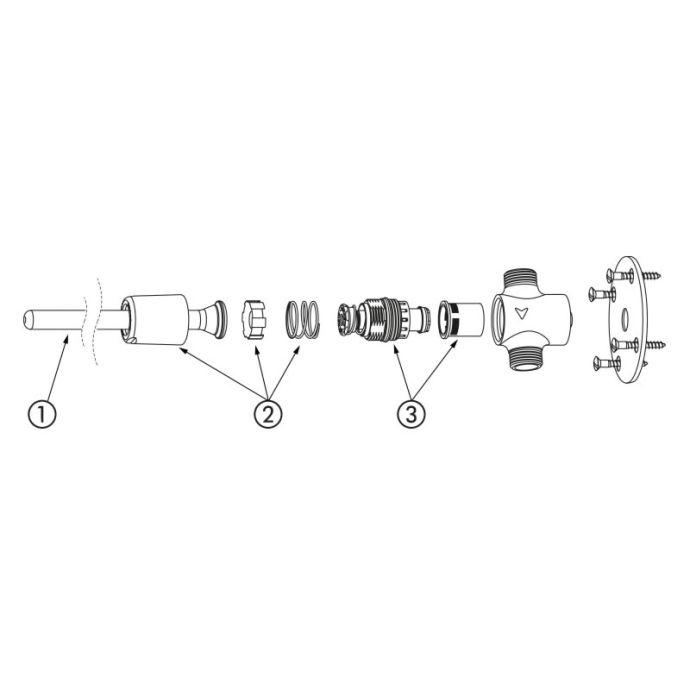

Spare parts

SPARE PARTS

TEMPOGENOU time flow tap

Ref. 735400
1. 999350
control lever
2. 997350
Head cover set
3. 743305
Time flow cartridge

VARIANTS

73544715 Straight model for inline inlets - Ø15mm compression fittings
734100 Angled valve for recessed inlets - M1/2"

VARIANTS

73544715 Straight model for inline inlets - Ø15mm compression fittings
734100 Angled valve for recessed inlets - M1/2"
