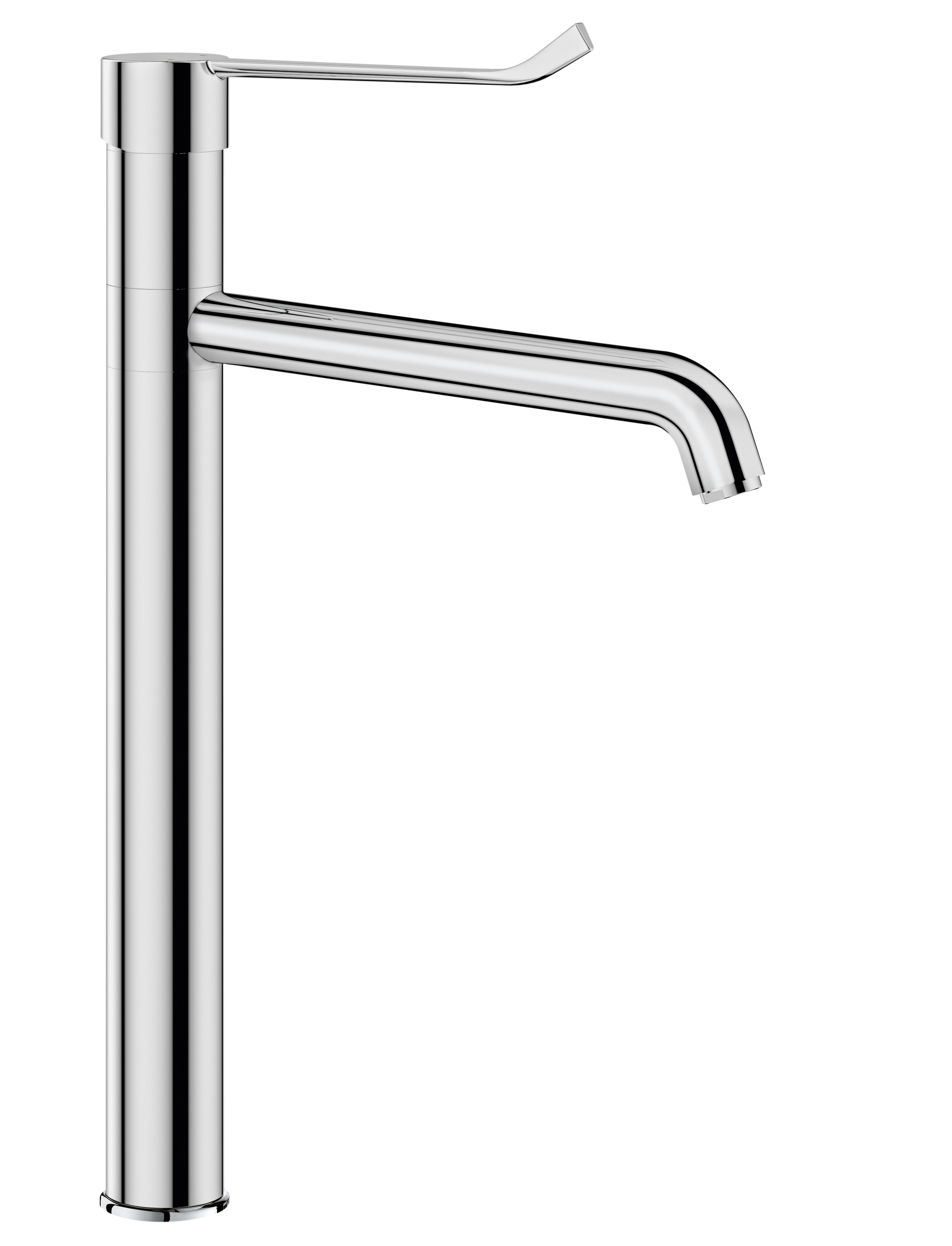

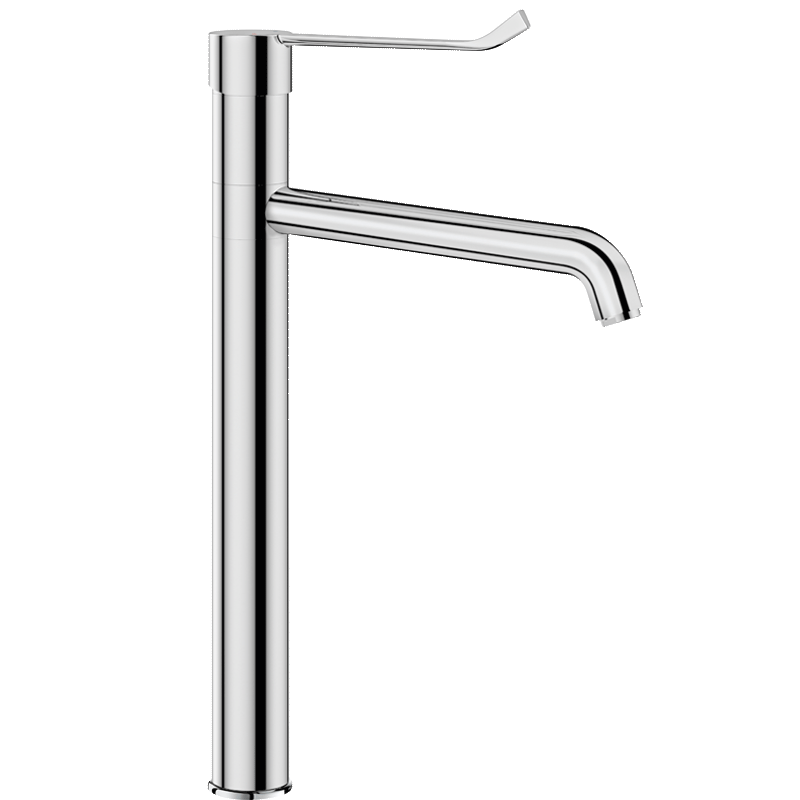

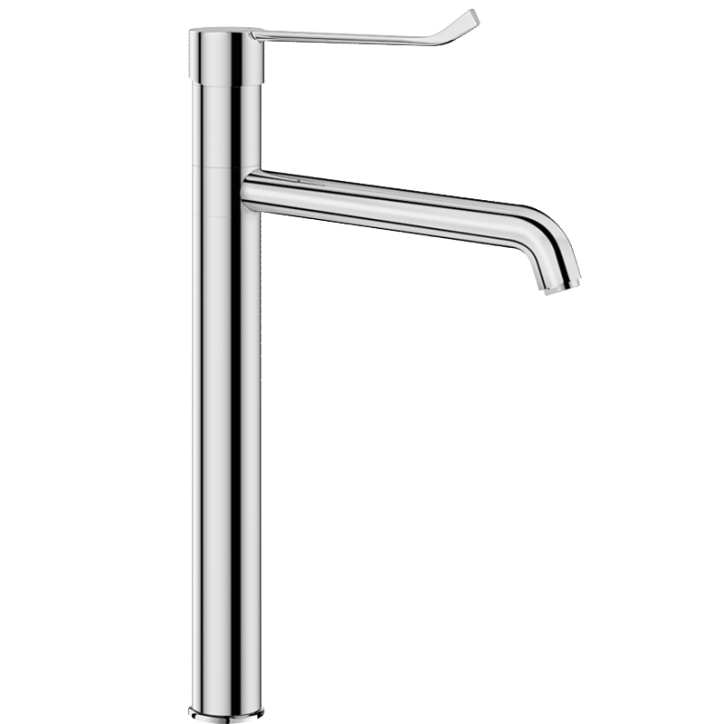

Deck-mounted mechanical sink mixer.
Single hole, single control mixer with swivelling spout H. 305mm L. 220mm.
Tall mixer with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Ø 35mm classic ceramic cartridge with pre-set maximum temperature limiter.

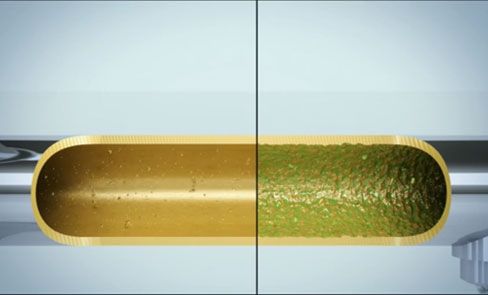

Body and spout with smooth interiors (reduced bacterial development).
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and spout.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8".
Fixings reinforced by 2 stainless steel rods and back-nuts.
Mechanical mixer ideal for people with healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
Hygiene: smooth interiors reduce bacteria
Thermal shock without removing the control lever
Pre-set maximum temperature limiter
No manual contact thanks to Hygiene control lever
Mechanical mixer for sinks or troughs
Ref. 2564T4

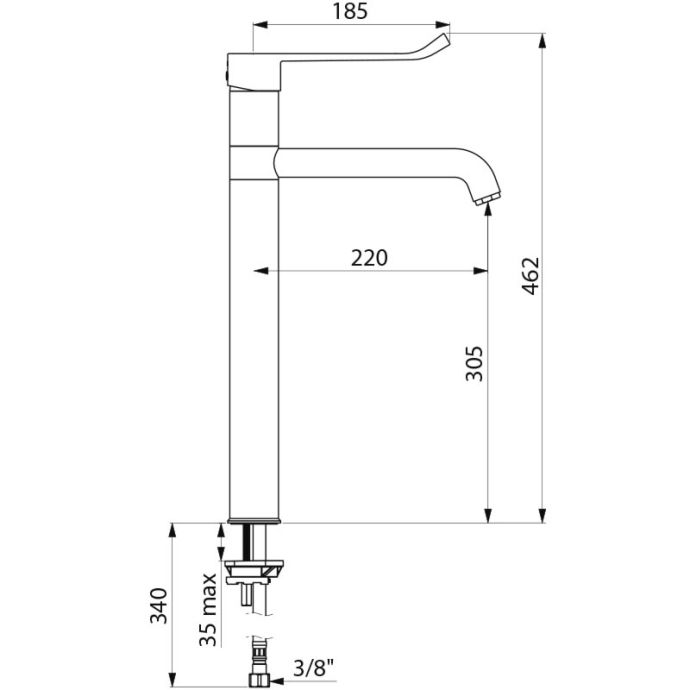

Connector
F3/8"
Height
462mm
Drop height
305mm
Spout length
220mm
Flow rate
9 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
Mechanical mixer for sinks or troughs
Ref.
2564T4
