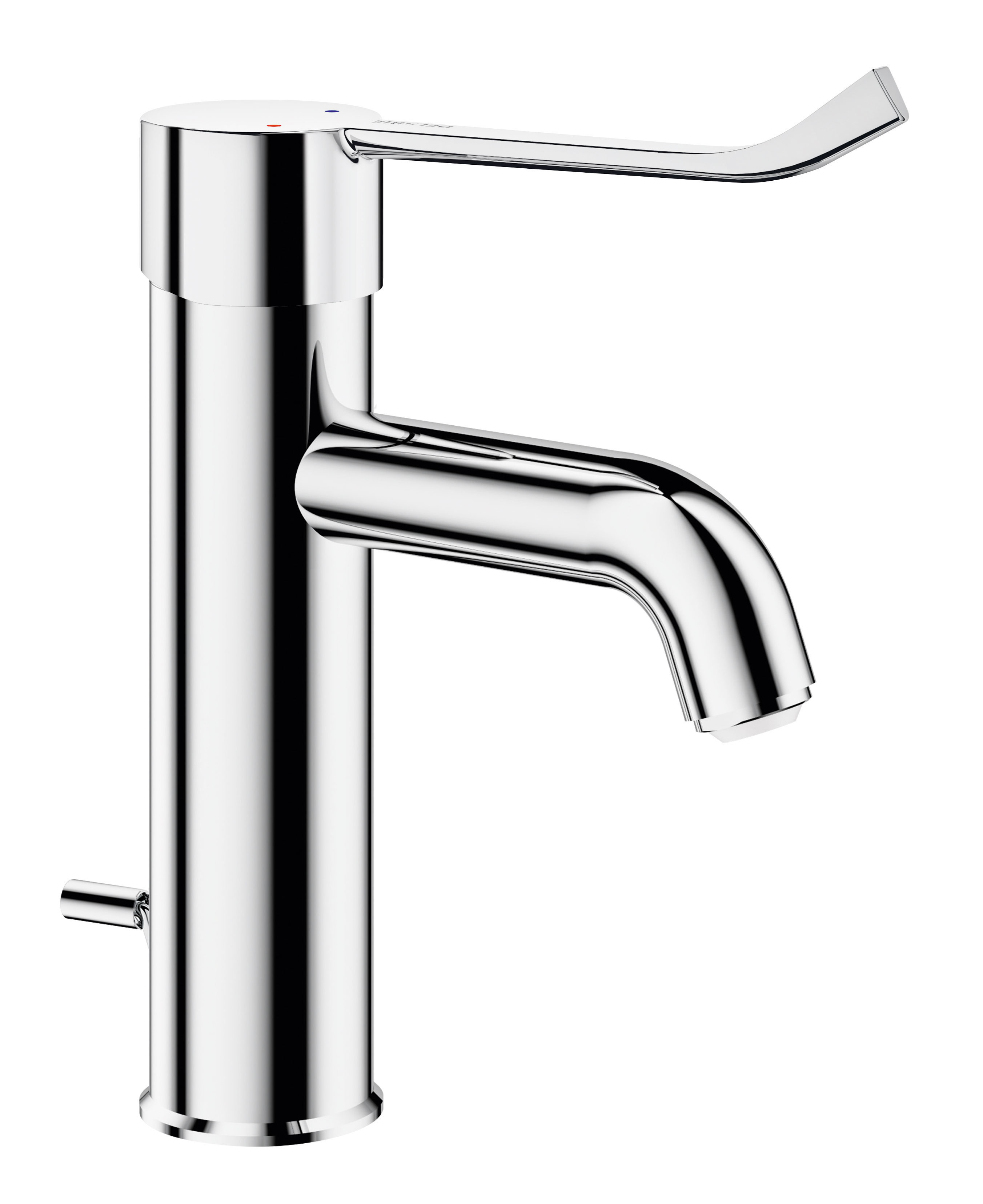

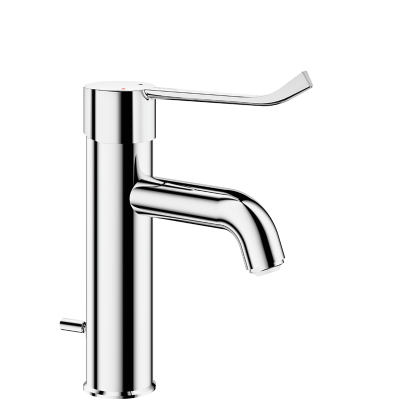

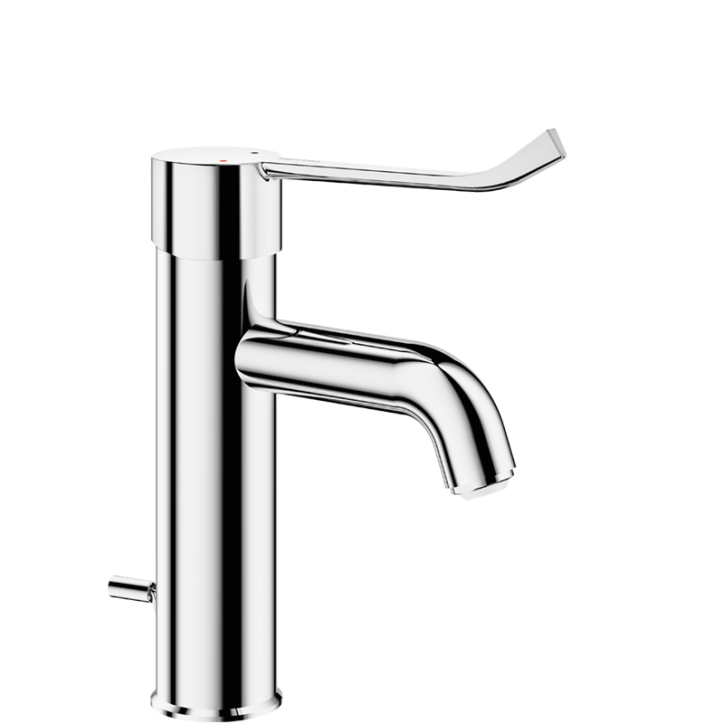

Deck-mounted mechanical basin mixer with pressure-balancing.

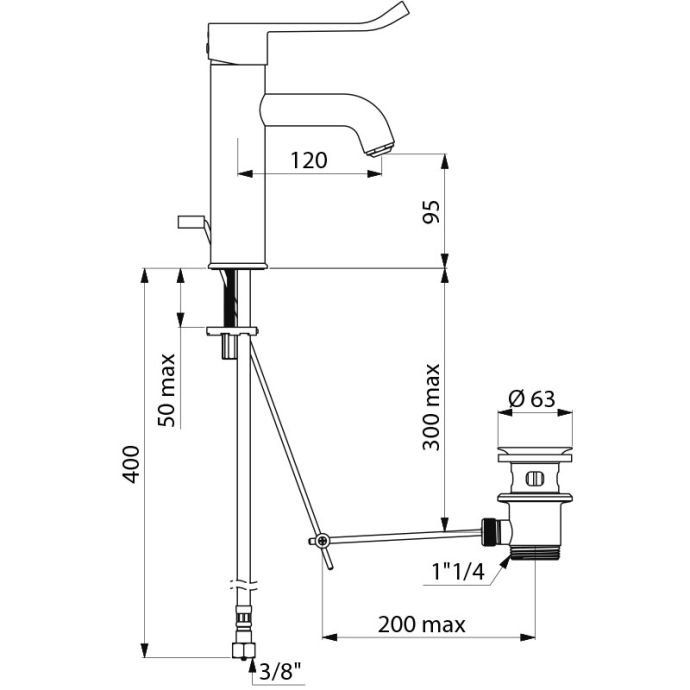

Single hole mixer with curved spout H. 95mm L. 120mm fitted with a hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and a pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Body and spout with smooth interiors and low water volume.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Flow rate regulated at 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
Ergonomic, stainless steel pop-up waste 1 1/4".
F3/8" PEX flexibles with filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
HW flow rate reduced if CW fails

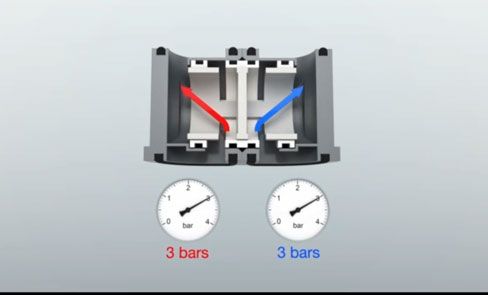

EP: reduces temperature variations

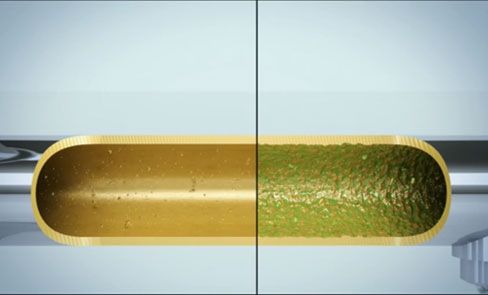

Hygiene: smooth interior reduces bacteria
Maximum hygiene: low water volume
SECURITHERM EP pressure-balancing basin mixer
Ref. 2720LEP
Connector
F3/8"
Technology
SECURITHERM EP mechanical mixer
Drop height
95mm
Spout length
120mm
Flow rate
5 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated stainless steel
Certificates
Warranty
Repairability
SECURITHERM EP pressure-balancing basin mixer
Ref.
2720LEP
To download one or several documents linked to this product, please select the type of file you require
