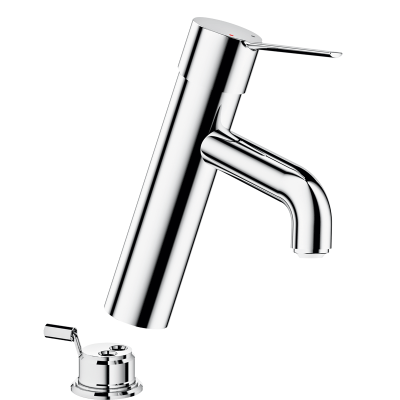

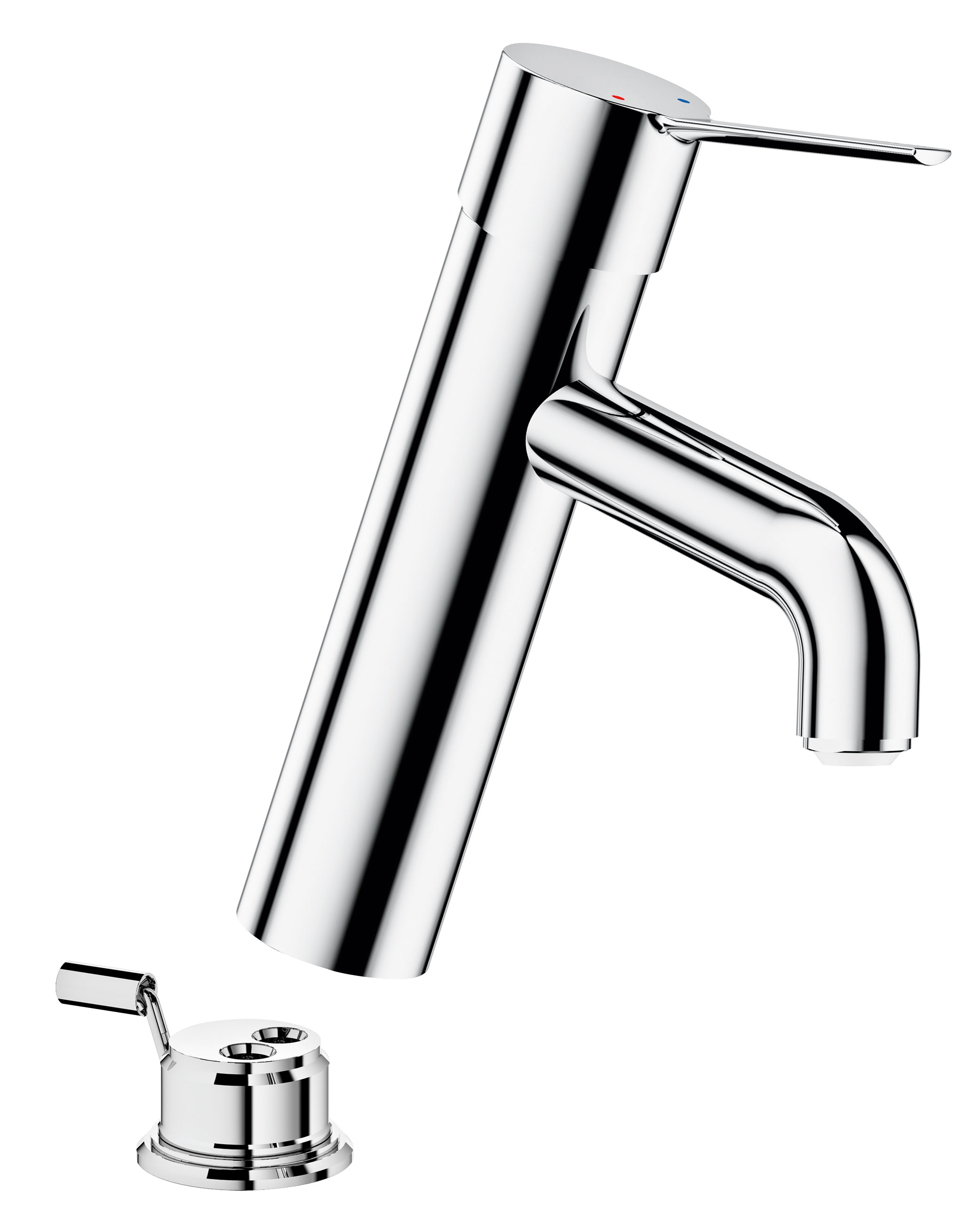

SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28201TEP
Deck-mounted mechanical basin mixer with pressure-balancing.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE outlet.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Ergonomic, brass pop-up waste 1 1/4".
F3/8" PEX flexibles.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
HW flow rate reduced if CW fails
Hygiene: remove for internal descaling
Hygiene: smooth interior reduces bacteria
EP: reduces temperature variations
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28201TEP
Connector
F3/8"
Technology
SECURITHERM EP BIOCLIP

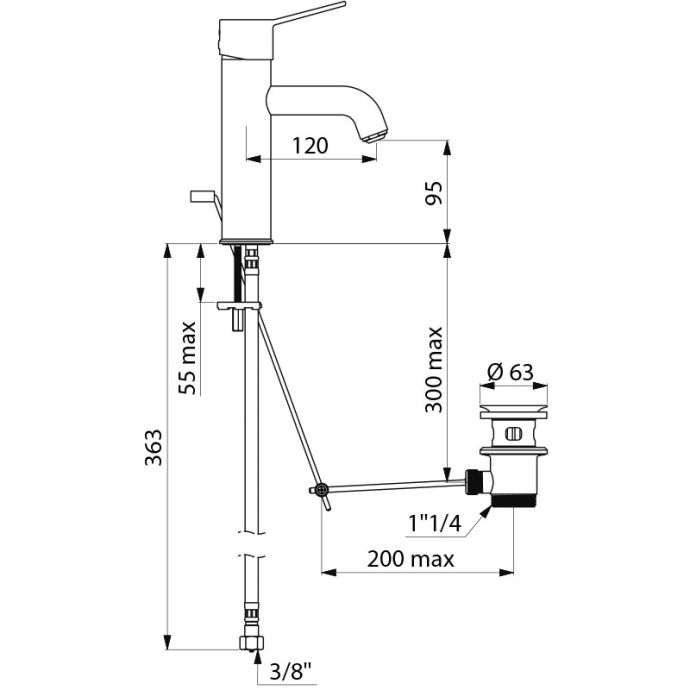

Drop height
95mm
Spout length
120mm
Flow rate
5 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref.
28201TEP
To download one or several documents linked to this product, please select the type of file you require
