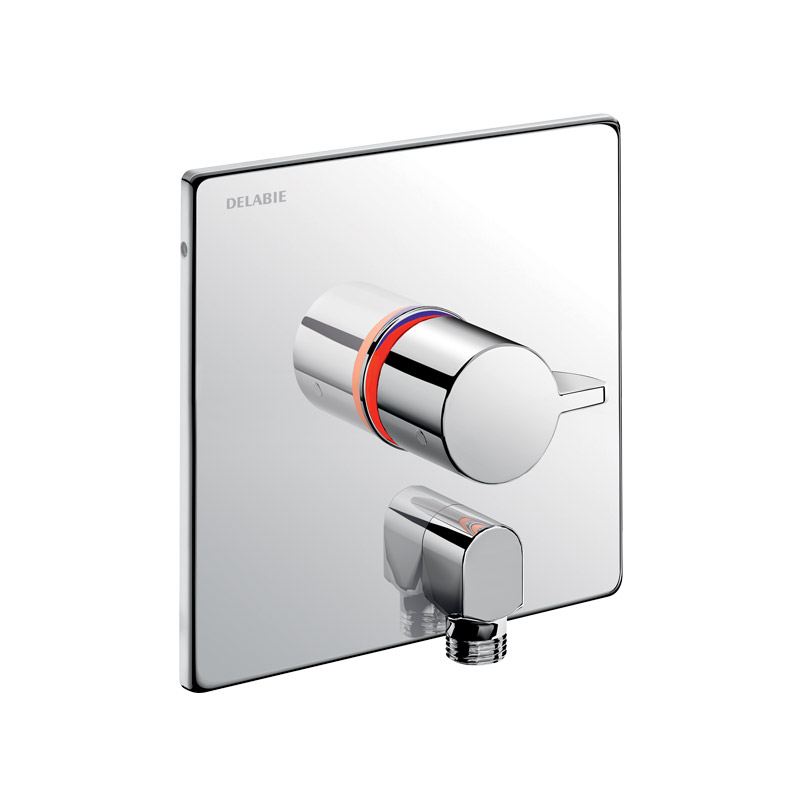

Recessed sequential thermostatic shower mixer with angled outlet

Ref. H9633
SECURITHERM mixer with no non-return valves, kit 2/2
Recessed sequential thermostatic shower mixer with angled outlet

Presentation

DESCRIPTION

Recessed sequential thermostatic shower mixer with angled outlet

Ref. H9633
Recessed thermostatic shower mixer with angled outlet, kit 2/2 :
Sequential thermostatic mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial development).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Avoids cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with pre-set maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with a shower head.
ERGO control knob.
Filters integrated in the M3/4" inlets.
Bright polished stainless steel cover plate 166 x 166mm
Mixer ideal for use in healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.

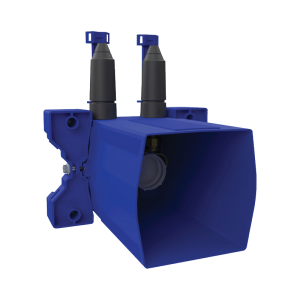

Order with the waterproof recessing housing ref. H96CBOX.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: optimal anti-scalding safety

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

Recessed sequential thermostatic shower mixer with angled outlet

Ref. H9633
Technology SECURITHERM Securitouch sequential thermostatic mixer
Flow rate Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo HKWSD
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Recessed sequential thermostatic shower mixer with angled outlet

Ref. H9633

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Recessed sequential thermostatic shower mixer with angled outlet

Ref. H9633
1. N962
Thermostatic cartridge for shower mixers
